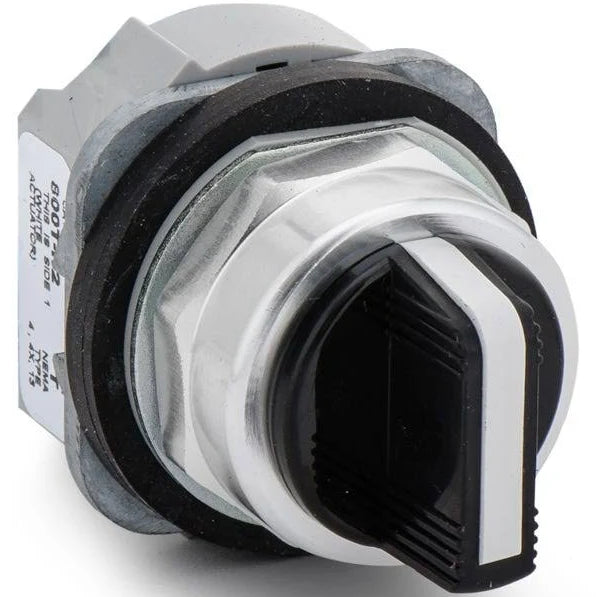

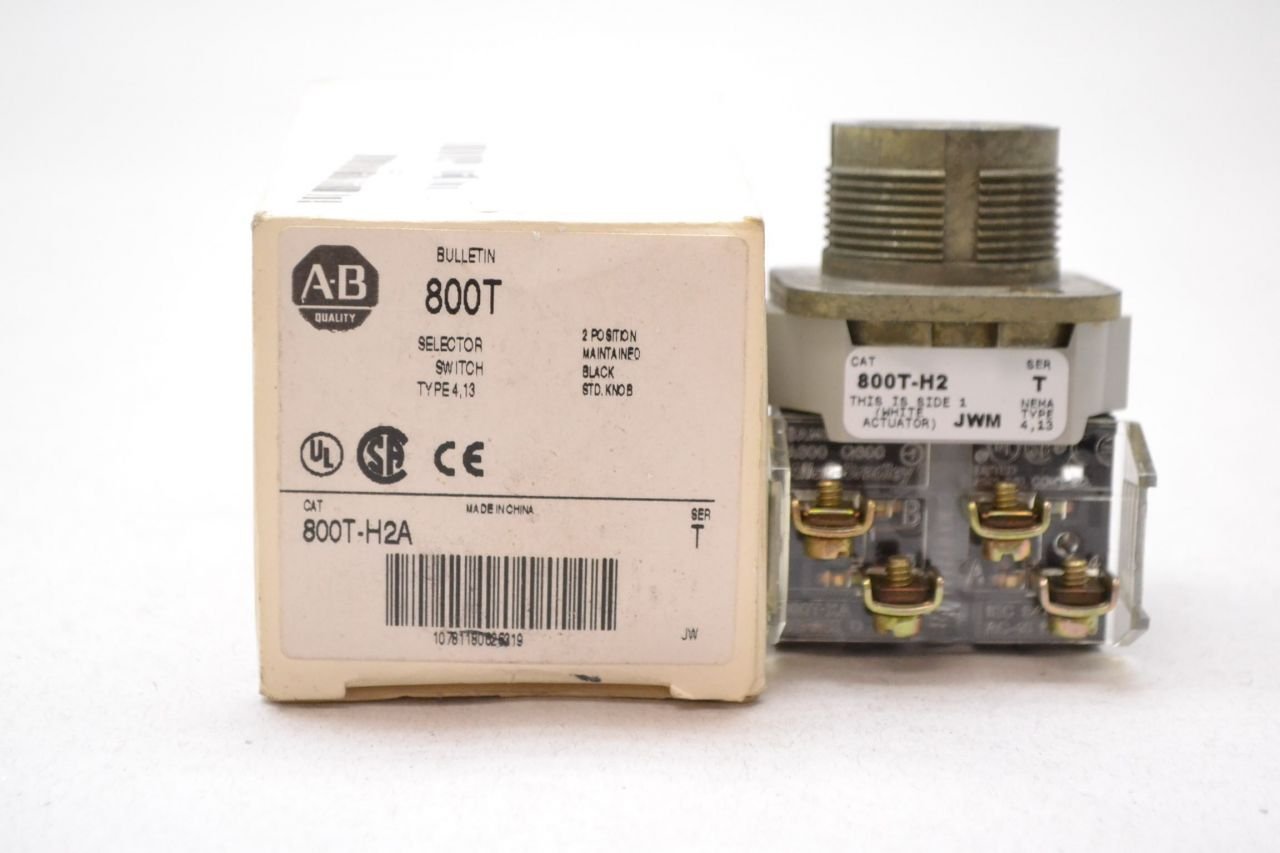

800T-H2 | Allen-Bradley 30.5mm Type 4/13 2 Pos Sel. Switch-Non-Illum
- Regular price
- $32.00
- Sale price
- $32.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 800T-H2
Description
The Allen-Bradley 800T-H2 is a 30.5 mm selector switch from the 800T push button series. It is a non-illuminated, 2-position metal operator designed for maintained operation in industrial control panels.
Technical Specifications
| Position / Type | 2 POSITION |
| NEMA / IP | NEMA 4/13 |
| Illuminated / Non-Illum | NON-ILLUMINATED |
| Mtg Hole Size | 30.5mm MTG. HOLE |
| Max Operating Temp or PSI | 55 Deg. C (131 Deg. F) Max. |
| Min Operating Temp or PSI | MINUS 40 Deg. C (-40 Deg. F) Min. |
| Voltage | 600VAC |
| Csa / Ul Approved | CSA/UL APPROVED |
| Brand Series | 800T |
| Brand | Allen-Bradley |
| Manufacturer | Rockwell |
| Series | T |
Information About 800T-H2
The 800T-H2 is part of the Allen-Bradley 800T family of push buttons and selector switches, built for durability and reliable control in harsh environments. This unit features a 30.5 mm mounting size with a standard maintained cam mechanism, allowing the operator to remain in position until manually changed. It is designed with a white insert for clear visibility, no terminal guards, and comes without contact blocks on the operator, which must be added separately depending on application needs. With a rugged metal construction and Type 4/13 environmental rating, the switch is protected against dust, water, and oil, making it suitable for demanding industrial conditions.
Key Features:
- Operator type: 2-position maintained selector switch designed for manual control of electrical circuits, where the operator remains in the selected position until it is manually changed.
- Operator size: Standard 30.5 mm diameter mounting fits into common industrial panel cutouts, making it compatible with widely used control station layouts.
- Construction: Rugged metal body ensures high durability and resistance to mechanical stress, extending service life in heavy-duty industrial environments.
- Illumination: Non-illuminated operator design simplifies wiring and reduces failure points, providing straightforward functionality where illumination is not required.
- Contact blocks: Delivered without pre-installed contacts, allowing engineers to add normally open or normally closed contact blocks as required for specific applications.
- Environmental protection: Rated Type 4/13 for resistance against dust, oil, and water ingress, making it suitable for use in harsh or washdown environments.
- Knob and insert: Features a standard maintained knob with a white insert for easy operator identification and clear distinction of switch positions.
- Terminal design: Supplied without terminal guards, intended for installation in protected control cabinets where physical guarding is not necessary.
- Application flexibility: Commonly used in motor control circuits, mode selection, and operator panels where ruggedness and configurability are critical.
The 800T-H2 delivers the reliability and precision required for industrial operator control in automation, motor control, and heavy-duty panel applications.
Manufacturer information
Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
