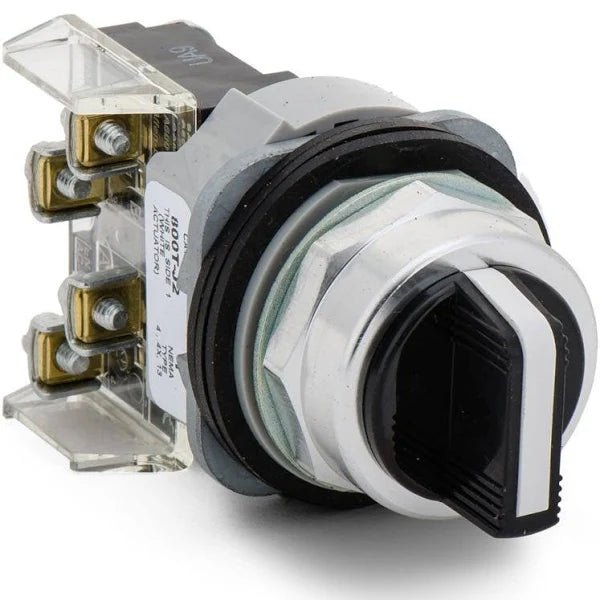

800T-J2A | Allen-Bradley 30.5mm Type 4/13 3-Position Selector Switch, 1 NO - 1 NC
800T-J2A | Allen-Bradley 30.5mm Type 4/13 3-Position Selector Switch, 1 NO - 1 NC
800T-J2A | Allen-Bradley 30.5mm Type 4/13 3-Position Selector Switch, 1 NO - 1 NC
    800T-J2A | Allen-Bradley 30.5mm Type 4/13 3-Position Selector Switch, 1 NO - 1 NC
800T-J2A | Allen-Bradley 30.5mm Type 4/13 3-Position Selector Switch, 1 NO - 1 NC

800T-J2A | Allen-Bradley 30.5mm Type 4/13 3-Position Selector Switch, 1 NO - 1 NC

Part #: 800T-J2A Manufactured by: Allen-Bradley
$110.00
$110.00
3 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
Allen-Bradley 800T-J2A 30.5mm Type 4/13 3-Position Selector Switch, White, Non-Illuminated, Standard Knob, Maintained, 1 N...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Do you need help?

Call our Sales Manager
phone
+1 (828) 222-3490
Mon./Sat.: 7:00AM - 8:00PM
Write to us now
email
sales@iqelectro.com
Mon./Sat.: 7:00AM - 12:00PM
warranty
IQElectro 2-Year Warranty
Warranty for Product #: 800T-J2A
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: 800T-J2A

Description / Specifications

Description

This product is 30.5mm white color standard knob Maint. Its a three position type non -Illuminated selector switch Its meet nema 4/13 enclosure.
800T PB,30mm Selector Switch,3 Position Selector Switch,Standard KB7 Cam, No Guards on Terminals,1 NO 1 NC Standard Contacts,No Block In Position 2,No Block This Position,No Block In Position 4,Standard Knob Maintained,White Insert,Device with Packaging



Technical Specifications



Brand Allen-Bradley
Contact Configuration NO/NC
Part Number 800T-J2A
Illumination Non-illuminated
Insert Color White Insert
Knob Color Black Knob
Maintained Yes
Number of Positions 3 Position
Product Type Selector Switch
Size 30 MM





Information About 800T-J2A

The Allen-Bradley 800T-J2A is a robust 30.5mm Type 4/13 3-Position Selector Switch, featuring a reliable design for industrial control applications. With a 1 NO (Normally Open) and 1 NC (Normally Closed) contact configuration, this switch provides versatile control options.

Designed for durability and performance, the Type 4/13 enclosure ensures protection against ingress of dust and water, making it suitable for harsh industrial environments. The 3-position selector switch offers flexibility in control operations, allowing operators to choose between three distinct positions.

The 1 NO - 1 NC configuration adds versatility by providing both normally open and normally closed contacts, accommodating a variety of control circuit configurations. The contacts ensure reliable electrical connections, contributing to the overall efficiency and safety of the control system.

The 800T-J2A is part of the Allen-Bradley 800T 30.5mm Pilot Devices series, known for its high-quality construction and compatibility with various industrial control applications. The rugged design, coupled with precise functionality, makes the 800T-J2A a reliable choice for demanding control environments where robust and flexible selector switches are essential.



Manufacturer information

Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.

Frequently Asked Questions about 800T-J2A
Question: What type of operation does this switch provide?
Date Update:16/06/2025
Answer:

The 800T-J2A provides maintained 3-position operation. This means that each of the three knob positions is latched and held in place until manually rotated. It’s ideal for applications where the control position must stay fixed — such as ON/OFF/AUTO — without spring return. This configuration allows consistent, visible operator control with physical feedback from the switch mechanism.

Question: How to wire 800T-J2A correctly?
Date Update:16/06/2025
Answer:

To wire the 800T-J2A properly, follow these steps:

  • Mount the selector switch into a 30.5 mm panel hole.
  • Locate the terminal points for the 1 NO and 1 NC contacts.
  • Connect control wires to the appropriate terminals, ensuring the load path matches switch positions.
  • Use wires rated for the expected control voltage and current.
  • Tighten terminal screws according to torque specs and verify connections.
  • Label wires or terminal strips for clarity during maintenance.
Question: Where can the 800T-J2A be used?
Date Update:16/06/2025
Answer:

This selector switch is versatile and applicable in a wide range of control environments:

  • Motor control panels, where it can be used for Forward/Off/Reverse switching
  • Conveyor systems, to allow manual selection between operational modes
  • Operator interface stations, providing hands-on control for various automated processes
  • Process equipment, where multi-mode logic (like Local/Remote/Auto) is required
  • Industrial machinery, especially in rugged applications demanding durable selectors

Its three-position maintained design makes it a reliable solution where repeated manual mode selection is needed without automatic reset.

Question: Can this switch work with other Allen-Bradley 800T components?
Date Update:16/06/2025
Answer:

Yes, the 800T-J2A is fully compatible with other accessories and components in the Allen-Bradley 800T series. You can easily pair it with additional contact blocks to expand its switching capabilities or customize the operator with different knob colors, legend plates, or terminal guards. The modular design means the same base selector can be adapted to a wide range of applications simply by changing its external accessories or internal wiring logic. This makes the 800T series highly scalable for OEMs and integrators who want consistent hardware across product lines.

Question: Is the 800T-J2A still in production?
Date Update:16/06/2025
Answer:

Yes, the Allen-Bradley 800T-J2A is currently in active production and widely supported by Rockwell Automation. It is available through global distribution networks, making it a reliable choice for both new designs and retrofits.

IQElectro is not an authorized distributor.
IQElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
Description / Specifications

Description

This product is 30.5mm white color standard knob Maint. Its a three position type non -Illuminated selector switch Its meet nema 4/13 enclosure.
800T PB,30mm Selector Switch,3 Position Selector Switch,Standard KB7 Cam, No Guards on Terminals,1 NO 1 NC Standard Contacts,No Block In Position 2,No Block This Position,No Block In Position 4,Standard Knob Maintained,White Insert,Device with Packaging



Technical Specifications



Brand Allen-Bradley
Contact Configuration NO/NC
Part Number 800T-J2A
Illumination Non-illuminated
Insert Color White Insert
Knob Color Black Knob
Maintained Yes
Number of Positions 3 Position
Product Type Selector Switch
Size 30 MM





Information About 800T-J2A

The Allen-Bradley 800T-J2A is a robust 30.5mm Type 4/13 3-Position Selector Switch, featuring a reliable design for industrial control applications. With a 1 NO (Normally Open) and 1 NC (Normally Closed) contact configuration, this switch provides versatile control options.

Designed for durability and performance, the Type 4/13 enclosure ensures protection against ingress of dust and water, making it suitable for harsh industrial environments. The 3-position selector switch offers flexibility in control operations, allowing operators to choose between three distinct positions.

The 1 NO - 1 NC configuration adds versatility by providing both normally open and normally closed contacts, accommodating a variety of control circuit configurations. The contacts ensure reliable electrical connections, contributing to the overall efficiency and safety of the control system.

The 800T-J2A is part of the Allen-Bradley 800T 30.5mm Pilot Devices series, known for its high-quality construction and compatibility with various industrial control applications. The rugged design, coupled with precise functionality, makes the 800T-J2A a reliable choice for demanding control environments where robust and flexible selector switches are essential.



Manufacturer information

Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
