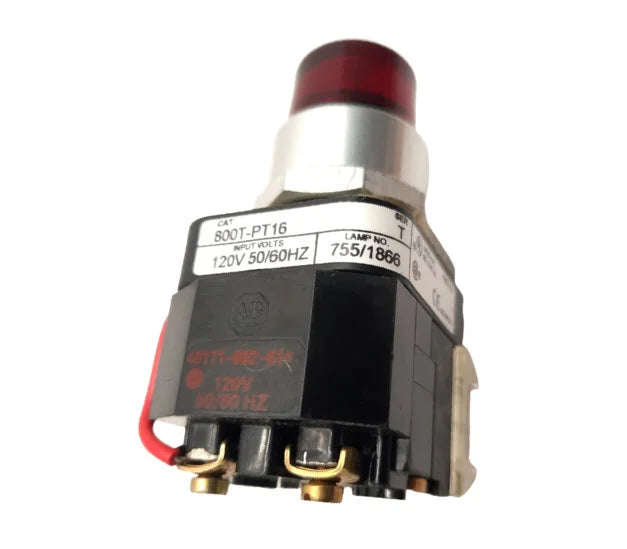

800T-PT16R | Allen-Bradley 30.5mm Type 4/13 Pilot Light Push-to-Test
- Regular price
- $141.95
- Sale price
- $141.95
- Regular price
-
$167.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: 800T-PT16R
Description
The Allen-Bradley 800T-PT16R is a 30.5 mm push-to-test pilot light with a red round lens and transformer-type incandescent illumination. Built for panel-mounted indication and test functionality, this device integrates control and visual feedback in a rugged design compliant with Type 4/13 industrial standards.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
| Category |
Pilot Devices
|
| Part Number | 800T-PT16R |
| Subcategory | Pushbutton |
| Series | 800T |
| Mounting Size | 30.5 mm |
| Style | Push-to-Test |
| Illumination Type | Incandescent |
| Lens Color | Red |
| Lens Shape | Round |
| Voltage Rating | 120V AC, 50/60 Hz (via transformer) |
| Contact Configuration | 1 NO + 1 NC |
| Terminal Type | Screw Terminals |
| Construction | Metal, Industrial Grade |
| Enclosure Rating | Type 4/13 |
| Certifications | UL, CUL, CE, CSA, CCC, KC, MARINE |
| Weight | 0.8400 lb |
Information About 800T-PT16R
The 800T-PT16R from Allen-Bradley’s 800T series combines a standard pilot light with a push-to-test mechanism, allowing users to test lamp operation without removing the device from service. Featuring a red round lens and incandescent illumination, it operates via a built-in transformer for 120V AC at 50/60 Hz input. This unit includes standard screw terminals for secure wiring and is equipped with 1 normally open (NO) and 1 normally closed (NC) contact block, making it suitable for integrated control and status indication. Its durable metal construction is designed to meet demanding industrial environments with Type 4/13 protection, offering resistance to dust, water, and oil.
Key Features:
- Push-to-Test Functionality: Enables quick testing of the pilot light without circuit interruption, ideal for safety and inspection procedures.
- 120V Transformer Input: Operates on 120V AC at 50/60 Hz via an internal transformer, ensuring compatibility with standard control voltages.
- Incandescent Illumination: Provides clear, reliable lighting with a traditional incandescent bulb for high visibility.
- 30.5 mm Metal Construction: Robust build with industrial-grade materials suitable for heavy-duty control panels.
- Red Round Lens: Clear status indication using a red lens ideal for alarm, stop, or fault conditions.
- 1 NO + 1 NC Contact Block: Offers dual control circuit integration with simple signal feedback logic.
- Type 4/13 Enclosure Rating: Resistant to dust, splashing water, and oil—suitable for washdown or industrial control cabinets.
- Screw Terminal Mounting: Easy and secure connection method for panel wiring.
- Compliance with Global Standards: Certified to UL, CUL, CE, CSA, CCC, KC, and Marine standards for broad industrial acceptance.
- Modular Design: Part of the 800T line, easily expandable or serviceable as part of larger control interface assemblies.
The 800T-PT16R combines illumination and control testing in a compact, durable design ideal for industrial signaling and diagnostics.
