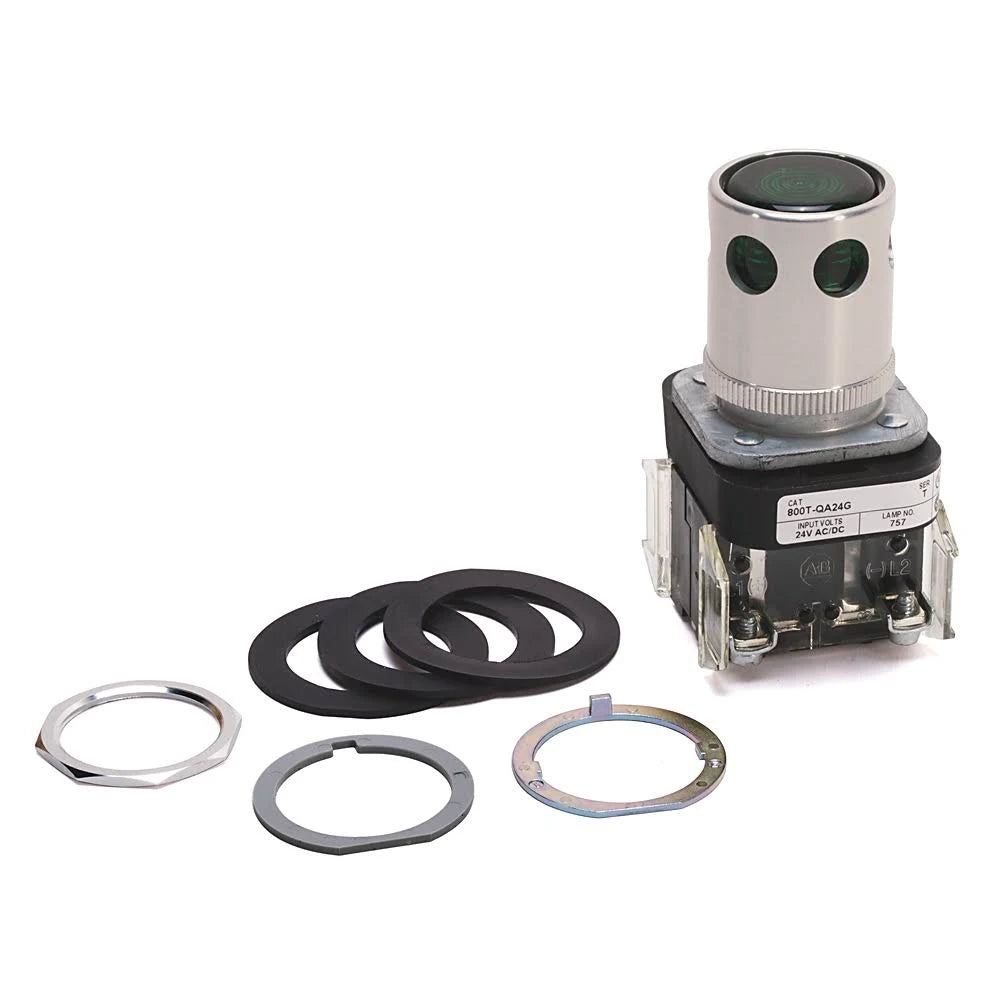

800T-QA24G | Allen-Bradley 30 mm Illuminated Push Button
- Regular price
- $152.00
- Sale price
- $152.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 800T-QA24G
Description
The Allen-Bradley 800T-QA24G is a robust 30 mm illuminated push button designed for reliable performance in demanding industrial applications. With its extended head and guard, green lens, and momentary action, this push button ensures safe and efficient operator control for machinery and processes.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
| Category |
Pilot Devices
|
| Part Number | 800T-QA24G |
| Subcategory | Pushbutton |
| Action | Momentary |
| Actuator | Extended Head with Guard |
| Block Type | Standard |
| Contact Configuration | 1 NO, 1 NC |
| Illumination Type | Incandescent |
| Lamp Voltage | 24 V AC/DC |
| Lens Color | Green |
| Lens Type | Rectangular |
| Enclosure Rating | Type 4/13 |
| Mounting Type | 1-Hole, Screw |
| Standards Compliance | C-TICK, CCC, CE, CSA, CUL, KC, MARINE, UL |
| Weight | 0.3900 lb |
Information About 800T-QA24G
This push button is part of the Allen-Bradley 800T series, known for its durability and versatility in industrial control systems. The 800T-QA24G features a standard block type with a contact configuration of 1 normally open (NO) and 1 normally closed (NC), providing flexibility in control circuit design. It utilizes a 24 V incandescent lamp for illumination, ensuring high visibility in both bright and dim environments. The rectangular green lens provides a clear and intuitive visual indication of the button’s status. Designed for full voltage operation (24 V AC/DC), it is suitable for transformer or full voltage wiring configurations.
Key Features:
- Momentary Action: Returns to the original position when released, ensuring immediate disengagement of the circuit, which is ideal for start/stop or jog applications.
- Extended Head with Guard: Provides enhanced safety and ergonomics by protecting the operator from accidental activation while offering an easy-to-press actuator.
- Standard Block Type: Offers straightforward wiring and maintenance, making it a reliable choice for a wide range of industrial control panels.
- Contact Configuration: Equipped with 1 NO and 1 NC contact, supporting flexible control circuit designs and multiple system configurations.
- Illumination Type: Features a 24 V incandescent lamp, providing bright and reliable illumination to enhance operator visibility and feedback.
- Lens Color and Type: Green rectangular lens ensures clear status indication, allowing operators to easily identify the button function at a glance.
- Voltage Compatibility: Operates at 24 V AC/DC, supporting full voltage wiring configurations commonly used in industrial control systems.
- Enclosure Rating: Rated for Type 4/13 applications, offering protection against dust, water, oil, and other industrial contaminants, making it suitable for harsh environments.
The 800T-QA24G push button is a versatile and dependable solution for operator interface applications, delivering performance and durability in industrial control systems.
