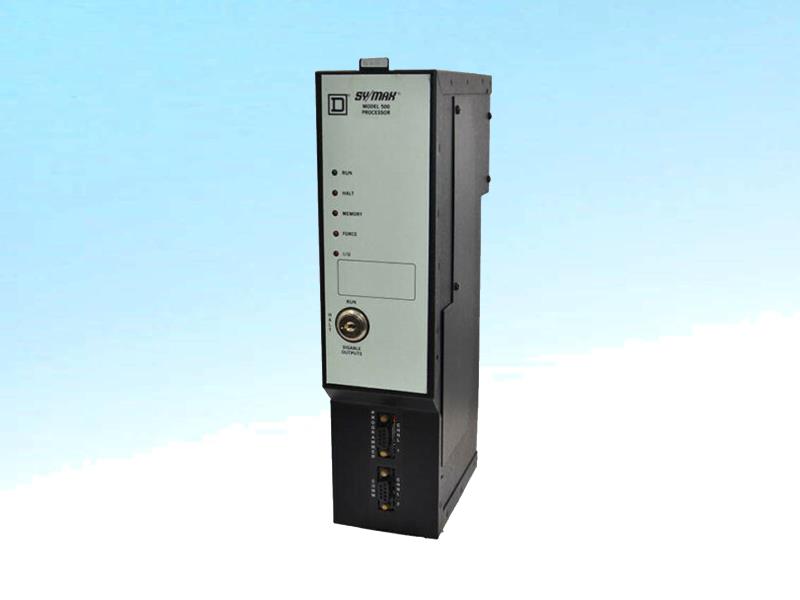

8020-SCP-522 | Schneider Electric Sy/Max Class Processor Module

The 8020-SCP-522 is a Model 500, 4K processor module with RAM manufactured by Square D. This processor module is equipped to handle various CPU/LI errors categorized within the range of 30000-32700. These errors encompass a wide spectrum of potential issues, each identified by specific codes ranging from 00 to 27. Examples include parity errors in status registers and image RAM, internal data errors, illegal PROM formats, opcode errors during operation, bus signal errors, software watchdog failures, and various memory parity and corruption issues. Each error code denotes a distinct diagnostic condition aimed at identifying and resolving operational faults within the processor module.

The 8020-SCP-522 is a versatile and reliable PLC module designed for integration within machine control systems, falling under the CLASS 8020 category. This module is engineered to provide advanced control and communication capabilities, making it a crucial component in industrial automation environments where precise control and real-time data communication are essential. Designed to meet the demanding requirements of modern industrial operations, the 8020-SCP-522 offers robust performance, flexibility, and ease of integration, ensuring it can handle a wide range of applications with efficiency and reliability.

One of the standout features of the 8020-SCP-522 is its inclusion of two distinct communication ports. The first is a dedicated COMMUNICATION PORT, which allows the module to interface seamlessly with other components within the PLC system and beyond. This port facilitates the exchange of data between the module and external devices, ensuring that the system can operate cohesively as part of a larger automation network. Whether it’s transferring data to a central control system or communicating with other PLC modules, the COMMUNICATION PORT ensures that information flows smoothly and accurately, supporting efficient system operations.

The second port is a PROGRAMMER PORT, designed to allow for easy programming and configuration of the PLC module. This port provides a direct interface for technicians and engineers to upload, modify, and download control programs, enabling quick adjustments and updates to be made to the system. The accessibility of the PROGRAMMER PORT is a significant advantage in environments where system configurations may need to be frequently updated to accommodate changes in production requirements or process improvements. The ability to quickly reprogram the module without extensive downtime ensures that operations can continue with minimal disruption.

The 8020-SCP-522 also features LED indicators, which provide immediate visual feedback on the module’s operational status. These indicators are essential for monitoring the health and functionality of the module in real-time, allowing operators and maintenance personnel to quickly identify issues such as communication failures or power disruptions. The presence of these LED indicators enhances the usability of the module, making it easier to troubleshoot and maintain, which is critical in maintaining continuous operation in industrial settings.

In terms of memory and processing capability, the 8020-SCP-522 is equipped with 500 4K RAM, offering ample space for storing control programs and processing data. This level of memory ensures that the module can handle complex control tasks and large data sets without compromising performance. The 4K RAM is particularly beneficial in applications that require high-speed processing and real-time decision-making, such as automated manufacturing lines, material handling systems, and other high-throughput environments.

The module’s construction and design adhere to industry standards, ensuring durability and long-term reliability even in harsh industrial conditions. Built to withstand environmental challenges such as temperature variations, dust, and mechanical vibrations, the 8020-SCP-522 is engineered for longevity and consistent performance. This durability reduces the likelihood of unexpected failures and extends the operational life of the system, contributing to lower maintenance costs and improved overall efficiency.

In summary, the 8020-SCP-522 PLC module is a powerful and flexible component within the CLASS 8020 series, designed to meet the rigorous demands of modern industrial automation. With its dual communication ports, ample RAM, LED indicators, and robust construction, this module provides the performance, reliability, and ease of use necessary for maintaining efficient and effective machine control systems. Whether used in complex manufacturing environments or other automation-intensive applications, the 8020-SCP-522 delivers the functionality and durability needed to support continuous, high-quality operations.
