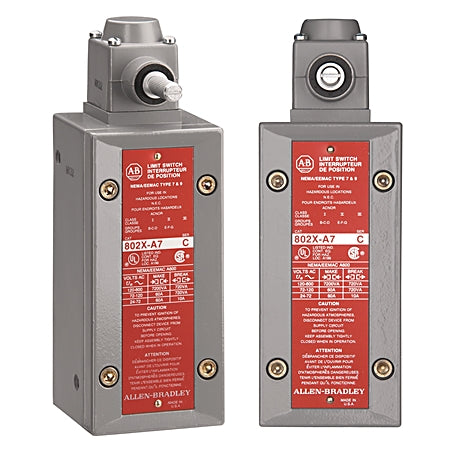

Part #: 802X-A7 Manufactured by: Allen-Bradley
Regular price
$499.00
Sale price
$499.00
Regular price
5 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The Allen-Bradley 802X-A7 is a spring return lever limit switch designed for reliable position sensing in harsh industrial...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: 802X-A7
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: 802X-A7

Description / Specifications

Description

The Allen-Bradley 802X-A7 is a spring return lever limit switch designed for precision position sensing in industrial automation systems. It features a rugged housing and mechanical actuator, making it ideal for detecting machine movement or part presence in harsh environments.





Technical Specifications

Condition New/Never Used Surplus
Brand Allen-Bradley
Category Limit and Proximity Switches
Part Number 802X-A7
Subcategory
Mechanical Limit Switches
Action Snap
Applications Full Switch (Head And Body)
Contact Configuration 1 NO, 1 NC
Enclosure Metal
Mounting Type Horizontal
Number of Poles 2 Pole
Size Hazardous Location
TC Connection 1/2 in NPT, Conduit Entry
Type Watertight
Actuator Rotary Lever Arm
Connection Type Conduit Entry
Contact Rating A600
Number of Circuits 2
Temperature Rating -46 to 121°C Operating, -46°C Ambient
Standard CSA,CUL,KC,UL
Weight 0.39 kgs





Information About 802X-A7

The Allen-Bradley 802X-A7 is a watertight limit switch from the 802X series, designed for reliable position sensing in industrial environments. Its robust construction ensures durability and consistent performance in demanding applications.

Key Features:

  • Model: 802X-A7

  • Actuation Type: Lever Type, Spring Return

  • Operation Mode: Clockwise (CW) and Counterclockwise (CCW) operation

  • Operating Torque: Standard Operating Torque

  • Travel to Operate Contacts: 16.5° (nominal)

  • Maximum Travel: 43°

  • Travel to Reset Contacts: 8° (maximum)

  • Torque to Operate Contacts: 0.34 N·m (3 lb·in)

  • Enclosure Ratings:

    • NEMA Type 4: Watertight

    • NEMA Type 7 and 9: Hazardous Locations

    • NEMA Type 13: Oiltight Construction

  • Certifications: UL Listed and CSA Certified

This limit switch is suitable for applications requiring watertight and hazardous location compliance, making it ideal for industries such as refineries, distilleries, grain elevators, and flour mills. Its design allows for both CW and CCW operation, providing flexibility in various installation scenarios.

IQElectro is not an authorized distributor.
QElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
Description / Specifications

Description

The Allen-Bradley 802X-A7 is a spring return lever limit switch designed for precision position sensing in industrial automation systems. It features a rugged housing and mechanical actuator, making it ideal for detecting machine movement or part presence in harsh environments.





Technical Specifications

Condition New/Never Used Surplus
Brand Allen-Bradley
Category Limit and Proximity Switches
Part Number 802X-A7
Subcategory
Mechanical Limit Switches
Action Snap
Applications Full Switch (Head And Body)
Contact Configuration 1 NO, 1 NC
Enclosure Metal
Mounting Type Horizontal
Number of Poles 2 Pole
Size Hazardous Location
TC Connection 1/2 in NPT, Conduit Entry
Type Watertight
Actuator Rotary Lever Arm
Connection Type Conduit Entry
Contact Rating A600
Number of Circuits 2
Temperature Rating -46 to 121°C Operating, -46°C Ambient
Standard CSA,CUL,KC,UL
Weight 0.39 kgs





Information About 802X-A7

The Allen-Bradley 802X-A7 is a watertight limit switch from the 802X series, designed for reliable position sensing in industrial environments. Its robust construction ensures durability and consistent performance in demanding applications.

Key Features:

  • Model: 802X-A7

  • Actuation Type: Lever Type, Spring Return

  • Operation Mode: Clockwise (CW) and Counterclockwise (CCW) operation

  • Operating Torque: Standard Operating Torque

  • Travel to Operate Contacts: 16.5° (nominal)

  • Maximum Travel: 43°

  • Travel to Reset Contacts: 8° (maximum)

  • Torque to Operate Contacts: 0.34 N·m (3 lb·in)

  • Enclosure Ratings:

    • NEMA Type 4: Watertight

    • NEMA Type 7 and 9: Hazardous Locations

    • NEMA Type 13: Oiltight Construction

  • Certifications: UL Listed and CSA Certified

This limit switch is suitable for applications requiring watertight and hazardous location compliance, making it ideal for industries such as refineries, distilleries, grain elevators, and flour mills. Its design allows for both CW and CCW operation, providing flexibility in various installation scenarios.
