8030-CC-25 | Schneider Electric Power Cable
- Regular price
- $214.00
- Sale price
- $214.00
- Regular price
-
Couldn't load pickup availability
Do you need more quantity?
Product Description P/N: 8030-CC-25
Description

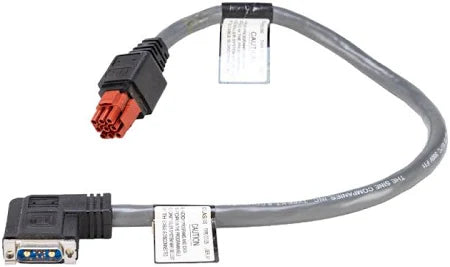

The 8030-CC-25 cable is 25 inches (64 cm) long and is designed to connect to a P2 connector.
Technical Specifications
| Brand | Schneider Electric |
| Part Number | 8030-CC-25 |
| Category | PLCs/Machine Control |
| Subcategory | PLC Module/Rack |
| Product Type | Power Cable |
Information About 8030-CC-25
This cable should only be used for auxiliary I/O and should not be used for powering a rack with a SY/MAX processor. This cable is capable of a maximum current of 8 amps at 40 degrees Celsius.
The 8030-CC-25 is designed to plug into a P2 connector. When the cable is plugged into the front of a Sy/Max module to one of these connectors, the cable will protrude approximately two inches from the front of the unit.
The 8030-CC-25 must be bent properly to ensure the connectors on the power supplies are not damaged. In order to properly route the 8030-CC-25, the second rack with auxiliary I/O must be placed below the power supply in order to properly route the cables. The 8030-CC-25 should never be bent in an upward direction from the P2 connector. It should be routed downward from the P2.
The 8030-CC-25 includes two slide locks over screws on either side of the connector. Be sure these are both in the open position before beginning any installation.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
IQElectro 2 Year Warranty
IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.Warranty Terms and Conditions
IQElectro is not an authorized distributor.
