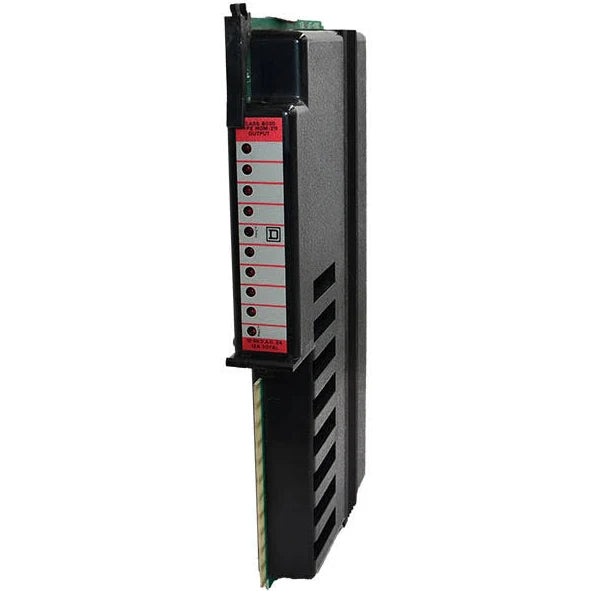

8030-HOM-211 | Schneider Electric Sy/Max 8-Point 12–50 VAC Output Module
- Regular price
- $297.00
- Sale price
- $297.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 8030-HOM-211
Description
The Schneider Electric 8030-HOM-211 is an 8-point output module designed to deliver reliable 12–50 VAC output control within Sy/Max automation systems. Featuring optical isolation and onboard LED indication, it provides stable operation for diverse industrial control applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Part Number | 8030-HOM-211 |
| Category | PLCs/Machine Control |
| Subcategory | PLC Module/Rack |
| Type | Output module |
| Points | 8 |
| Output Voltage | 12–50 VAC |
| Output Current | 2 A per output; 12 A total (0–50°C), 10 A total (50–60°C) |
| Off-State Leakage | 2.7 mA max at 250 V (50/60 Hz) |
| Surge Current | 25 A for 1 cycle (60 Hz) |
| Fuse Type | AGC 3A, 250 V (individually fused outputs) |
| Common Terminals | 2 groups of 4 outputs |
| Module Current Draw | 220–265 mA depending on duty cycle |
| Isolation Method | Optical isolation |
| Temperature Rating | 0–50°C (nominal), 50–60°C (reduced rating) |
| Humidity Rating | 0–95% non-condensing |
| Application | AC output control for Sy/Max automation |
Information About 8030-HOM-211
The 8030-HOM-211 is a Type HOM-211 output module from the Sy/Max Class 8030 series, supporting up to eight individually fused outputs. Each output is optically isolated and equipped with its own LED indicator, while two additional LEDs monitor fused groups of four outputs for fault detection. Designed to manage up to 2 A per output and 12 A per module, it offers robust performance within its specified operating temperature range. Built for straightforward integration into Sy/Max systems, the 8030-HOM-211 provides dependable AC output control for equipment requiring precise switching and safe isolation.
Key Features
- 8-Point AC Output Control: delivers eight 12–50 VAC outputs for varied industrial automation tasks.
- Optical Isolation: enhances signal integrity and protects control electronics from electrical disturbances.
- Individual LED Indicators: each output includes an LED to display ON status directly from the processor signal.
- Fused Outputs: each of the eight outputs is individually fused using AGC 3A, 250 V fuses for protection.
- Group Fault LEDs: two dedicated LEDs illuminate to indicate blown fuses in each group of four outputs.
- High Current Capability: supports 2 A per output and up to 12 A total at 0–50°C (10 A at 50–60°C).
- Low Off-State Leakage: maintains a maximum leakage of 2.7 mA at 250 V, ensuring reliable off-state behavior.
- Sy/Max System Integration: suitable for installation in Sy/Max racks with a rated current draw of 220–265 mA.
The 8030-HOM-211 delivers the reliability and precision required for stable AC output control in Sy/Max Class 8030 industrial automation systems.
