8030-HOM-222 | Schneider Electric Isolated Output Module, 6 Outputs, 120 VAC
- Regular price
- $694.00
- Sale price
- $694.00
- Regular price
-
Couldn't load pickup availability
Do you need help?

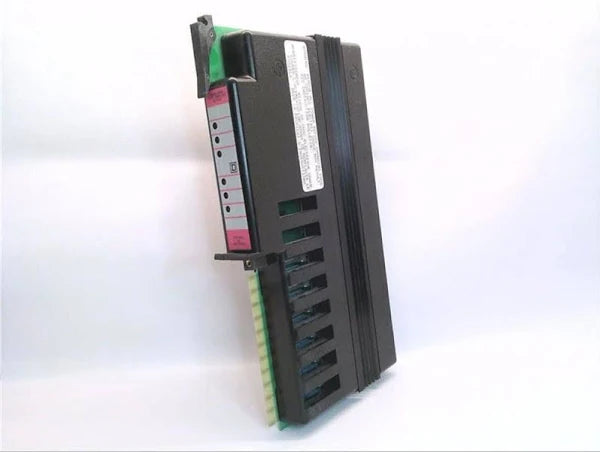

Product Description P/N: 8030-HOM-222
Description
The Schneider Electric 8030-HOM-222 is a Class 8030 isolated output module designed to deliver six individually isolated 120 VAC outputs for dependable industrial control. Its robust construction and optical isolation technology support reliable signal switching across varied load conditions.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | PLCs / Machine Control |
| Part Number | 8030-HOM-222 |
| Subcategory | PLC Module / Rack |
| Output Voltage | 120 VAC |
| Number of Outputs | 6 isolated outputs |
| Output Current | 2 A per output |
| Total Module Current | 9 A (0–50 °C), 10 A (50–60 °C) |
| Isolation Type | Optical isolation |
| Surge Current | 25 A for 1 cycle (60 Hz) |
| Fuse Type | AGC 3, 3 A, 250 V (individual per output) |
| Leakage Current (Off) | 2.0 mA max at 138 V |
| Voltage Drop (On) | 2.0 V max at 2 A load |
| Power Supply Draw | 225 mA (75% duty), 270 mA (100% duty) |
| Output Groups | Two sets of three loads with shared commons |
| Indicator Lights | LED activity indicators for each output |
| Application | Industrial AC load switching and control |
| Weight | 1.8 lbs |
Information About 8030-HOM-222
The 8030-HOM-222 belongs to Schneider Electric’s PLC output module family engineered for precise control of multiple AC loads in automated systems. It provides six optically isolated outputs, allowing each load to be powered by independent voltage sources for maximum configuration flexibility. With a 2 A rating per output, divided into two groups of three shared-common terminals, the module offers LED status indication for each channel, surge tolerance up to 25 A for one cycle, and individual AGC 3 fuses accessible from the module’s side. Its compatibility with 120 VAC loads and Sy/Max power supply requirements ensures dependable integration into industrial environments requiring accurate device actuation.
Key Features:
- Six Isolated Outputs: Each channel is optically isolated, allowing separate voltage sources and improved noise immunity.
- 120 VAC Output Capability: Supports standard industrial power levels for controlling contactors, solenoids and pilot lights.
- 2 A Per Channel Rating: Handles up to 2 A per output with total module capacity of 9 A at 0–50 °C and 10 A at 50–60 °C.
- Dual Common-Terminal Groups: Outputs are organized into two banks of three loads, each sharing a common terminal.
- Individual Output Fusing: Each of the six outputs includes an AGC 3 fuse for protection and simplified service.
- LED Status Indicators: Provides activity indication for each output, aiding troubleshooting and panel diagnostics.
- Surge Current Capability: Supports 25 A for one 60 Hz cycle, enhancing reliability under high inrush conditions.
- Stable Module Power Draw: Requires 225 mA at 75% duty cycle or 270 mA at full duty cycle from a Sy/Max power supply.
The 8030-HOM-222 delivers the reliability and precision required for isolated AC output control in industrial automation systems.
