8030-HOM-231 | Schneider Electric Output Module 8 Function 240 VAC Output

Description

The Schneider Electric 8030-HOM-231 is a versatile Output Module, offering 8 functions with 240VAC output. Designed for industrial control applications, it ensures precise and reliable control over various functions, contributing to enhanced efficiency and performance in diverse automation setups.

Technical Specifications

Information About 8030-HOM-231

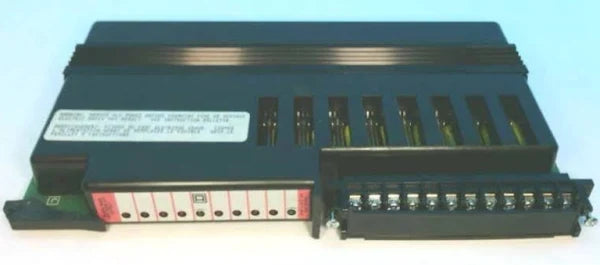

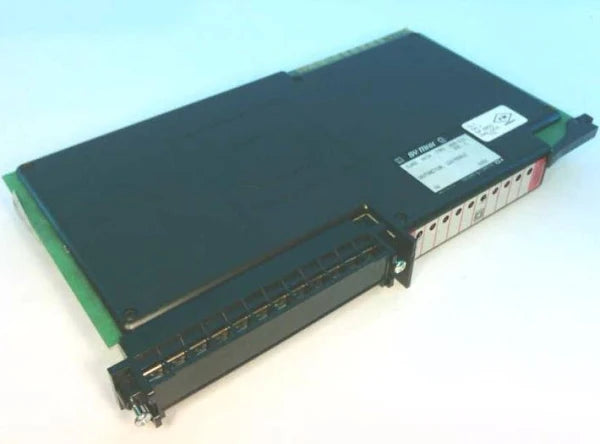

To support the manufacturing process, the Type HOM-231 240 VAC Output Module can drive up to 8 outputs. When the output receives an ON signal from the processor, an LED located on the front of the module is lit. Each individual output has an LED associated with it that indicates activity. A labeling area is provided next to each output for identification.

A common terminal is shared by each group of four loads. Each module contains two groups that share a common terminal. When a blown fuse is detected in one of the four loads in a group, an indicator LED on the front of the module illuminates. Each group of four is associated with an LED.

The eight outputs are optically isolated to improve reliability.

The maximum current is 2 Amp per output and a total of 12 Amps per module in a 0-50℃ temperature environment and 10 A in 50-60℃. The maximum Off state leakage is 2.7 mA at 250V 50/60 Hz. The maximum On state voltage drop across output is 2.0 V at 2 A load. The maximum surge current is 25 A for 1 cycle (60 Hz) (no more than 1 one per second). The rated module current draw on a Sy/Max power supply is 225 mA per module at 75% duty cycle and 270 mA per module at 100% duty cycle.

The fuse type rated for the module is AGC 3, 3A, 250 V. Each of the 8 outputs is individually fused. Lower-rated fuses may be installed, depending on the output devices being controlled. Fuses are accessible through openings in the side of the module.

The ambient temperature rating is 0-60℃. The humidity rating is 0-95% non-condensing. The weight (unpackaged) is 1.9 lbs (0.86 kg).
