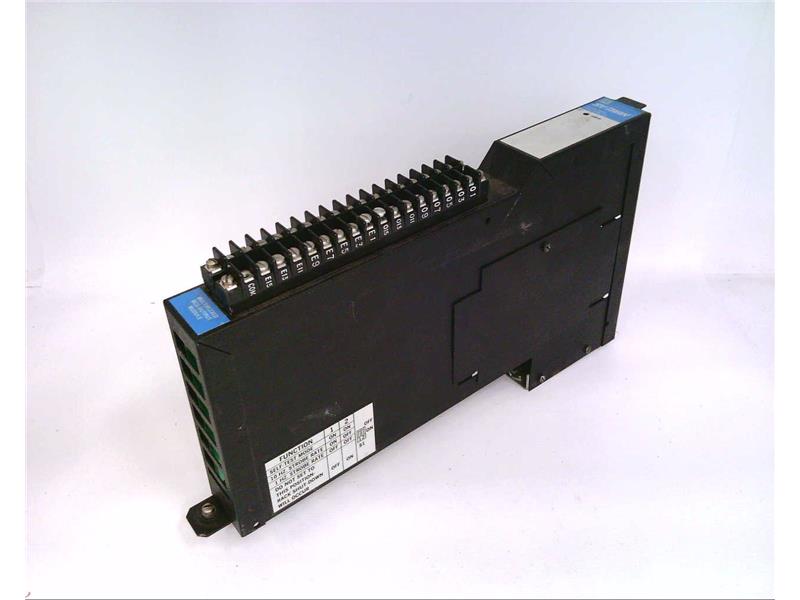

8030-ROM-141 | Sy/Max Multiplexed BCD Output Module for PLC Systems
- Regular price
- $825.00
- Sale price
- $825.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 8030-ROM-141
Description
The Sy/Max 8030-ROM-141 is a multiplexed BCD output module designed for PLC and machine control applications. This module supports up to sixteen registered addresses and interfaces with BCD display devices using onboard data latching and decoding. It is used to drive multi-digit numeric displays in industrial control systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric (Sy/Max) |
| Category | PLCs/Machine Control |
| Part Number | 8030-ROM-141 |
| Subcategory | PLC Module/Rack Output Module |
| Module Type | Multiplexed BCD output module |
| Registered Addresses | Up to 16 |
| Display Capacity | Up to 64 displays |
| Operating Voltage | 5 VDC |
| Current Draw | 900 mA |
| BCD Decoding | Onboard |
| Data Latching | Integrated |
| Field Wiring | Up to eight 24 AWG wires per terminal |
| Maximum Cable Length | 200 ft (60 m) |
| Application | Numeric display output for PLC systems |
Information About 8030-ROM-141
The 8030-ROM-141 is a multiplexed BCD output module developed for Sy/Max PLC architectures used in industrial automation. It is constructed to manage multiple BCD display devices through registered addressing and onboard decoding logic. The module integrates data latching circuitry to maintain stable output values during multiplexed operation. It is typically used in control systems where numeric display output and efficient wiring of multiple BCD devices are required.
Key Features:
- Multiplexed BCD output design: Supports efficient control of multiple BCD display devices.
- Sixteen registered addresses: Allows connection of up to sixteen four-digit display sets.
- Onboard BCD decoding: Converts multiplexed data for direct display operation.
- Integrated data latching: Maintains stable output values during scanning cycles.
- High display capacity: Supports up to sixty-four total numeric displays.
- Field wiring flexibility: Terminals accept up to eight 24 AWG wires per connection.
- Extended cable support: Allows up to 200 ft (60 m) distance between module and displays.
The 8030-ROM-141 delivers the reliability and precision required for multiplexed BCD display control in PLC-based industrial automation systems.
