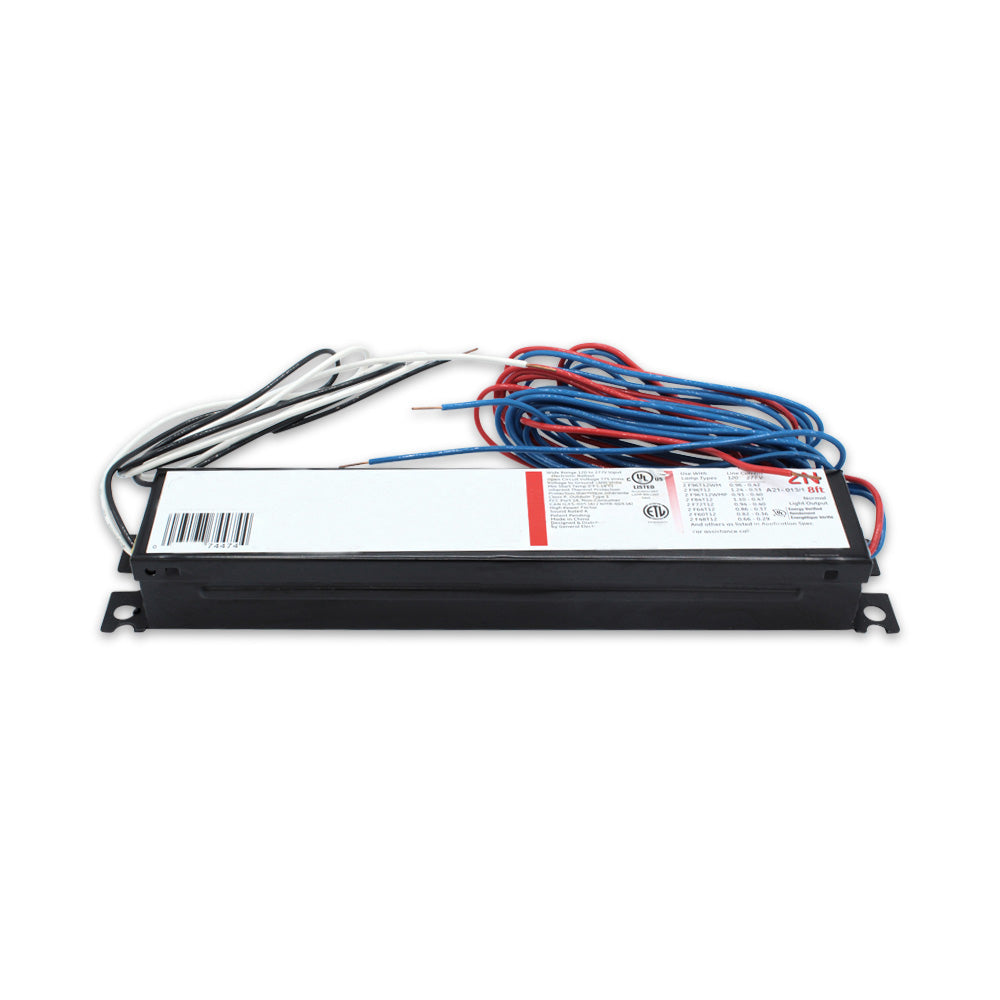

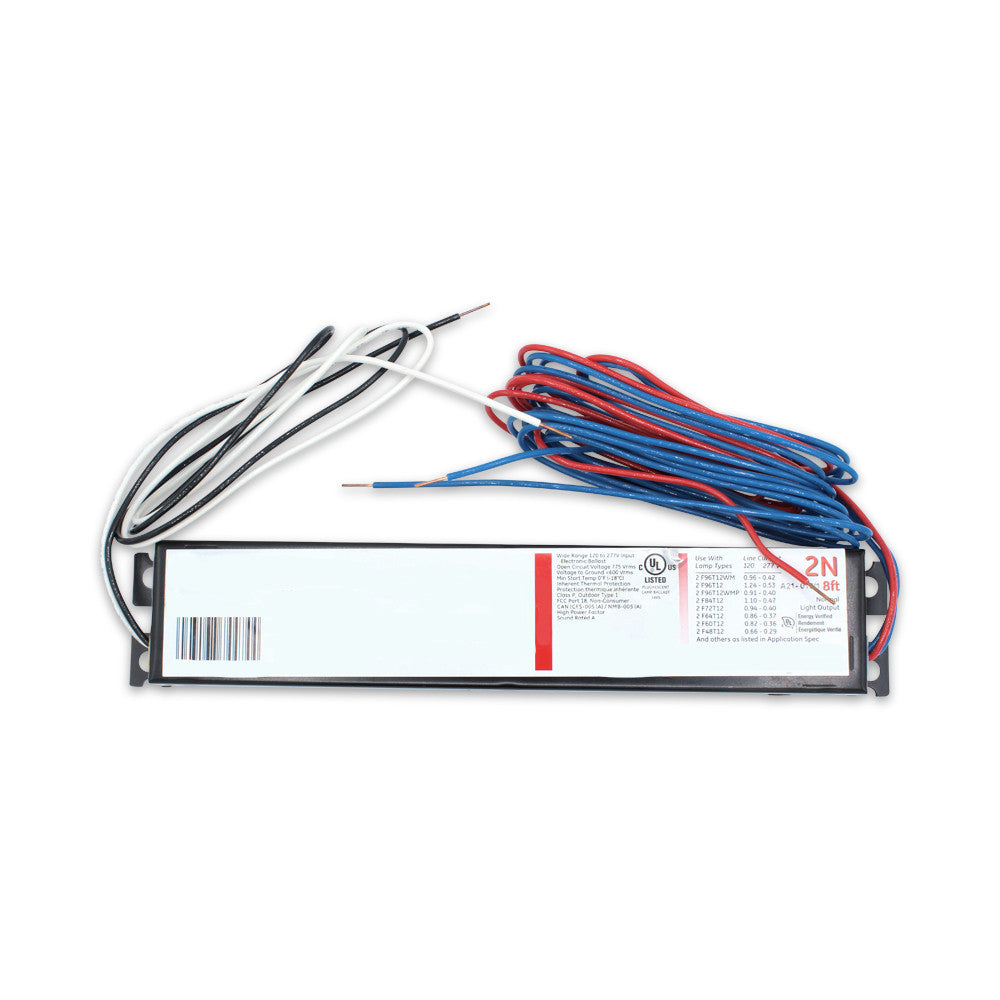

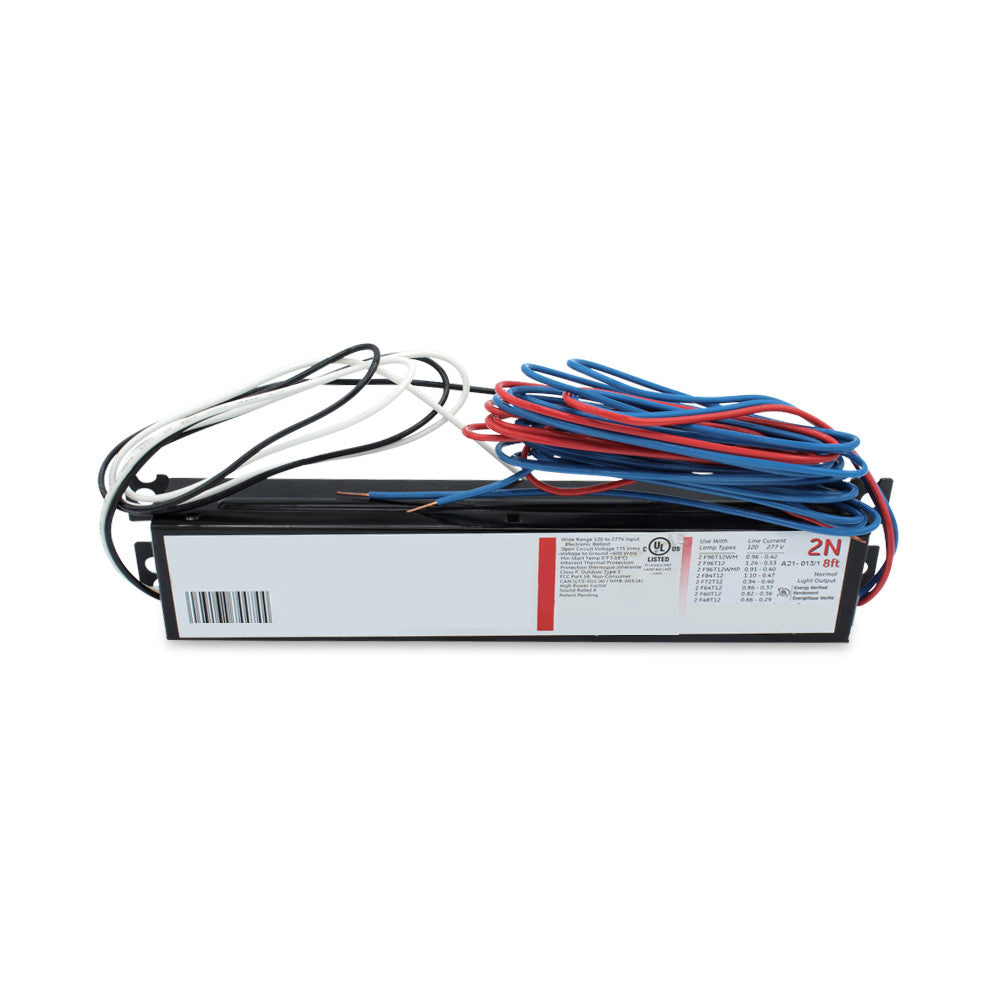

806-SLH-TC-P | MagneTek Universal 120V Magnetic Ballast for (2) F96T12 Slimline Lamps
- Regular price
- $105.00
- Sale price
- $105.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 806-SLH-TC-P
Description
The Universal 806-SLH-TC-P is a magnetic fluorescent ballast designed for instant start operation of two slimline T12 lamps on a 120V supply. It supports F96T12, F96T12ES, F84T12, and F72T12 lamp types in two-lamp configurations. The 806-SLH-TC-P utilizes a 4-wire connection scheme and is intended for use in compatible magnetic fluorescent lighting fixtures.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | MagneTek Universal |
| Category | Lighting Control |
| Part Number | 806-SLH-TC-P |
| Subcategory | Magnetic Ballasts |
| Ballast Type | Magnetic fluorescent |
| Input Voltage | 120 V AC |
| Number of Lamps | 2 |
| Supported Lamp Types | (2) F96T12, (2) F96T12ES, (2) F84T12, (2) F72T12 |
| Starting Method | Instant start |
| Wiring Configuration | 4-wire (Black, White, Blue, Red) |
| Fixture Type | Slimline T12 fluorescent |
| Case Size | 6 |
| Dimensions | 11 3/4" x 3 1/8" x 1 25/32" |
| Warranty | None |
| Weight | 10 lb |
Information About 806-SLH-TC-P
The 806-SLH-TC-P is a slimline magnetic ballast engineered to operate two T12 fluorescent lamps in instant start applications. It is designed for 120V input systems and uses a four-wire configuration consisting of black, white, blue, and red leads for line and lamp connections. The ballast supports multiple 8-foot and 6-foot T12 lamp variants, making it suitable for retrofit and replacement installations in commercial or industrial lighting systems. Its magnetic construction provides conventional transformer-based lamp starting and operation within compatible fluorescent fixtures.
Key Features
- Instant Start Operation: Energizes lamps without preheating for standard slimline T12 applications.
- 120V Input Rating: Designed for single-phase 120-volt supply systems.
- Two-Lamp Configuration: Operates two compatible T12 fluorescent lamps.
- Multi-Lamp Compatibility: Supports F96T12, F96T12ES, F84T12, and F72T12 lamps.
- 4-Wire Connection: Black and white input leads with blue and red lamp output leads.
- Magnetic Ballast Design: Transformer-based construction for traditional fluorescent systems.
- Compact Case Size 6 Housing: Suitable for fixture replacement where matching form factor is required.
The 806-SLH-TC-P delivers the reliability and precision required for two-lamp slimline T12 magnetic fluorescent lighting systems.
