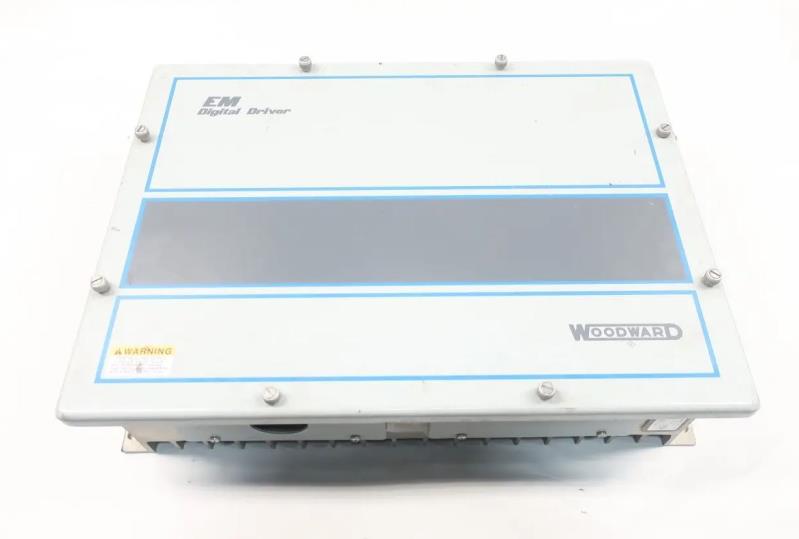

8200-176 | Woodward Gas Metering Digital Driver EM Digital Series

Description

The Woodward 8200-176 is a Gas Metering Digital Driver from the EM Digital Series. It provides precise control for gas flow applications, featuring advanced digital processing for accurate metering and efficient operation. Designed for reliability, it ensures optimal performance in demanding environments.

Technical Specifications

Information About 8200-176

The Woodward 8200-176 Gas Metering Digital Driver from the EM Digital Series is a highly specialized device designed for precision control and monitoring in gas metering applications. This component plays a critical role in ensuring accurate measurement and regulation of gas flow, making it essential for maintaining optimal performance and safety in various industrial and building maintenance settings.

Constructed with a robust aluminum chassis, the 8200-176 is engineered for durability and resilience in demanding environments. It measures 19 inches in width, 5.5 inches in depth, and 14 inches in height, making it compact enough to fit into standard control panels or equipment enclosures without occupying excessive space. The use of aluminum not only ensures a lightweight design but also contributes to effective heat dissipation, enhancing the unit’s reliability and longevity.

The driver operates within a nominal input voltage range of 18 to 32 Vdc, offering flexibility for integration into various power systems. This range accommodates a wide variety of applications, providing stability and consistent performance. The unit’s power consumption is 3.3 A continuous, which is a key consideration for ensuring efficient operation and minimizing the impact on overall system power usage.

The 8200-176 is designed to function within an operating temperature range of -20 to +68 degrees Celsius (-4 to +154 degrees Fahrenheit). This broad temperature range allows the device to perform effectively in a variety of environmental conditions, from cold industrial settings to warmer building maintenance environments. Additionally, the device can withstand storage temperatures ranging from -40 to +85 degrees Celsius (-40 to +185 degrees Fahrenheit), ensuring that it remains reliable even when not in active use.

In summary, the Woodward 8200-176 Gas Metering Digital Driver EM Digital Series combines rugged construction with precise functionality to deliver exceptional performance in gas metering applications. Its durable aluminum chassis, wide input voltage range, and extensive temperature tolerance make it a versatile and reliable choice for both industrial and building maintenance applications. This driver ensures accurate gas measurement and efficient control, contributing to the overall effectiveness and safety of gas management systems.

Manufacturer information

Woodward is a leading manufacturer of control systems and components for the aerospace and industrial sectors. With a history spanning over 150 years, Woodward specializes in providing innovative solutions for engine and energy control, serving customers worldwide.
