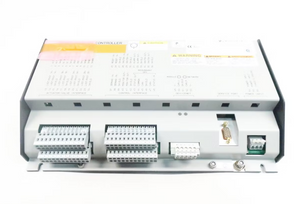

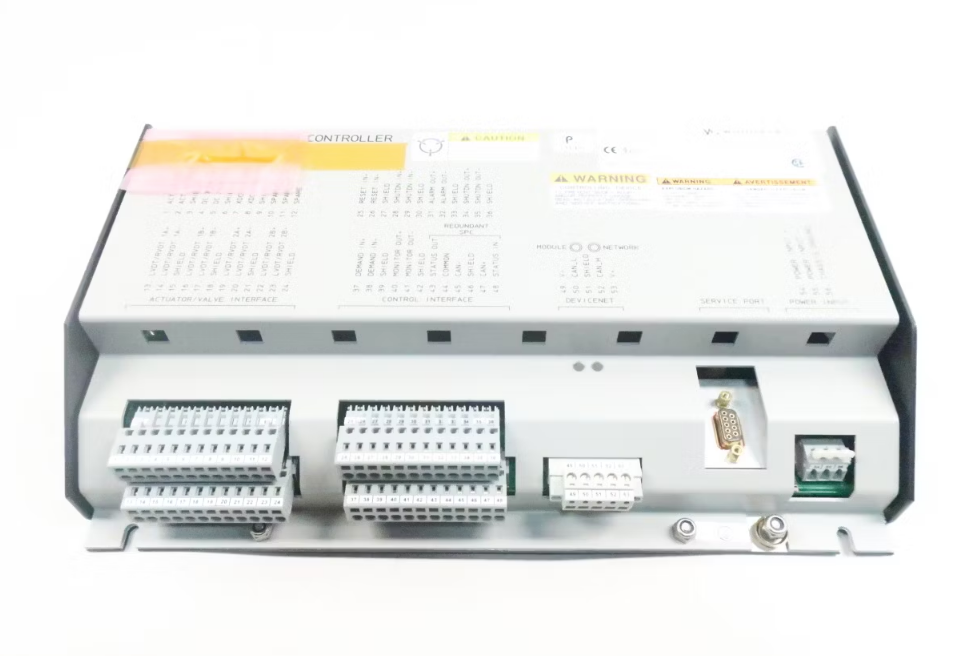

8200-226 | Woodward Servo Position Controller SPC Series

Description

The 8200-226 is a servo position controller from the Woodward SPC Series. It is designed to provide precise control of servo positions in industrial automation applications, ensuring accurate and reliable performance in system regulation and feedback control.

Technical Specifications

Information About 8200-226

The 8200-226 is a servo position controller from Woodward's SPC Series, designed to provide precise control over servo mechanisms in industrial applications. This device falls under the category of Servo Products and specifically within the subcategory of Servo Drive/Servo Control, indicating its critical role in managing the operation and positioning of servo systems. Engineered to deliver high performance and reliability, the 8200-226 is ideal for use in environments where accurate control of servo positions is essential for maintaining system stability and operational efficiency.

Operating with a nominal voltage of 24 Vdc, the 8200-226 is compatible with standard industrial power supplies, making it suitable for integration into a wide range of servo control systems. Its 24 Vdc operation ensures that the device can deliver consistent power to the servo mechanism, supporting smooth and precise movements. This voltage specification aligns with typical industry standards, facilitating easy integration into existing control systems and minimizing the need for additional power conversion equipment.

The 8200-226 supports a current range of ±10 to ±250 mA, providing flexibility in controlling various types of servo actuators. This wide current range allows the device to accommodate different servo sizes and torque requirements, making it a versatile choice for diverse applications. Whether the task involves controlling small, precise movements or managing larger, more robust servo mechanisms, the 8200-226 can provide the necessary current to achieve accurate positioning and responsive control.

The input impedance of the 8200-226 is rated at 200 Ω, which is optimized for efficient signal handling and stability. This impedance level ensures that the controller can accurately interpret input signals from various sensors and control devices, maintaining the integrity of the control loop. The high input impedance minimizes the impact on signal quality, reducing noise and interference that could affect the precision of servo positioning.

One of the standout features of the 8200-226 is its high-resolution capability, with an 11-bit resolution. This level of resolution allows the controller to process 2,048 distinct positions, providing extremely fine control over servo movements. The high resolution is critical in applications where precise positioning is required, such as robotics, automated manufacturing, and precision instrumentation. By offering such fine control, the 8200-226 ensures that even the smallest adjustments can be made accurately, enhancing the overall performance of the servo system.

The operating range of the 8200-226 is defined as 2-22 mA, allowing the device to function effectively within this current range. This operating range ensures that the controller can maintain accurate control over the servo mechanism, even under varying load conditions. The ability to operate across a broad current range enhances the adaptability of the controller, making it suitable for use in dynamic environments where load conditions may change rapidly.

The 8200-226 is designed to handle a typical heat load of 20 W, indicating its capacity to dissipate heat effectively during operation. Proper heat dissipation is essential for maintaining the reliability and longevity of electronic components, especially in demanding industrial settings. The 20 W power dissipation capability ensures that the 8200-226 can operate continuously without overheating, maintaining stable performance over extended periods of use.

Manufactured by Woodward, a leading provider of control solutions for industrial applications, the 8200-226 reflects the company's commitment to quality and innovation. Woodward's expertise in developing reliable control products ensures that the 8200-226 meets the high standards required for industrial automation, providing users with a dependable solution for their servo control needs.

In summary, the Woodward 8200-226 servo position controller is a versatile and high-performance solution for precise servo control in industrial applications. With its nominal 24 Vdc operation, wide current range, high input impedance, 11-bit resolution, and robust heat dissipation capabilities, it offers the accuracy, reliability, and flexibility needed to optimize servo-driven systems. Its compatibility with various servo types and sizes makes it an essential component for ensuring the efficiency and accuracy of industrial automation processes.

Manufacturer information

Woodward is a leading manufacturer of control systems and components for the aerospace and industrial sectors. With a history spanning over 150 years, Woodward specializes in providing innovative solutions for engine and energy control, serving customers worldwide.
