821-0063-11R A | Cognex In-Sight
- Regular price
- $4,297.00
- Sale price
- $4,297.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 821-0063-11R A
Description

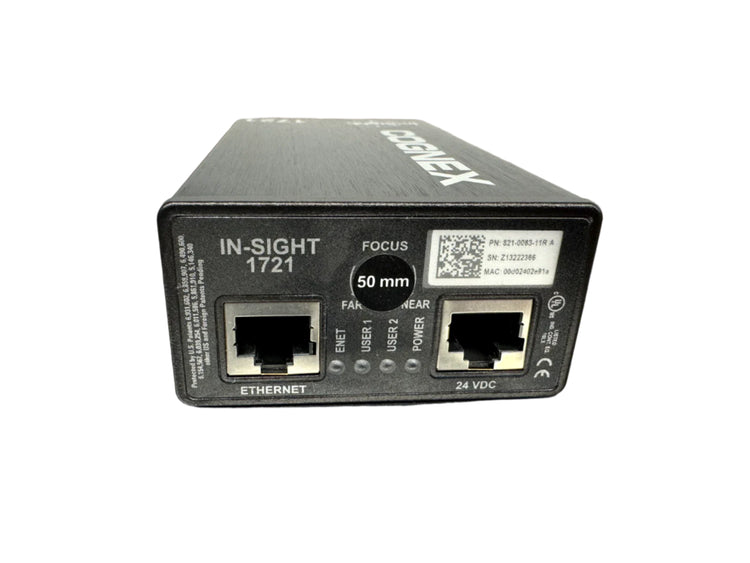

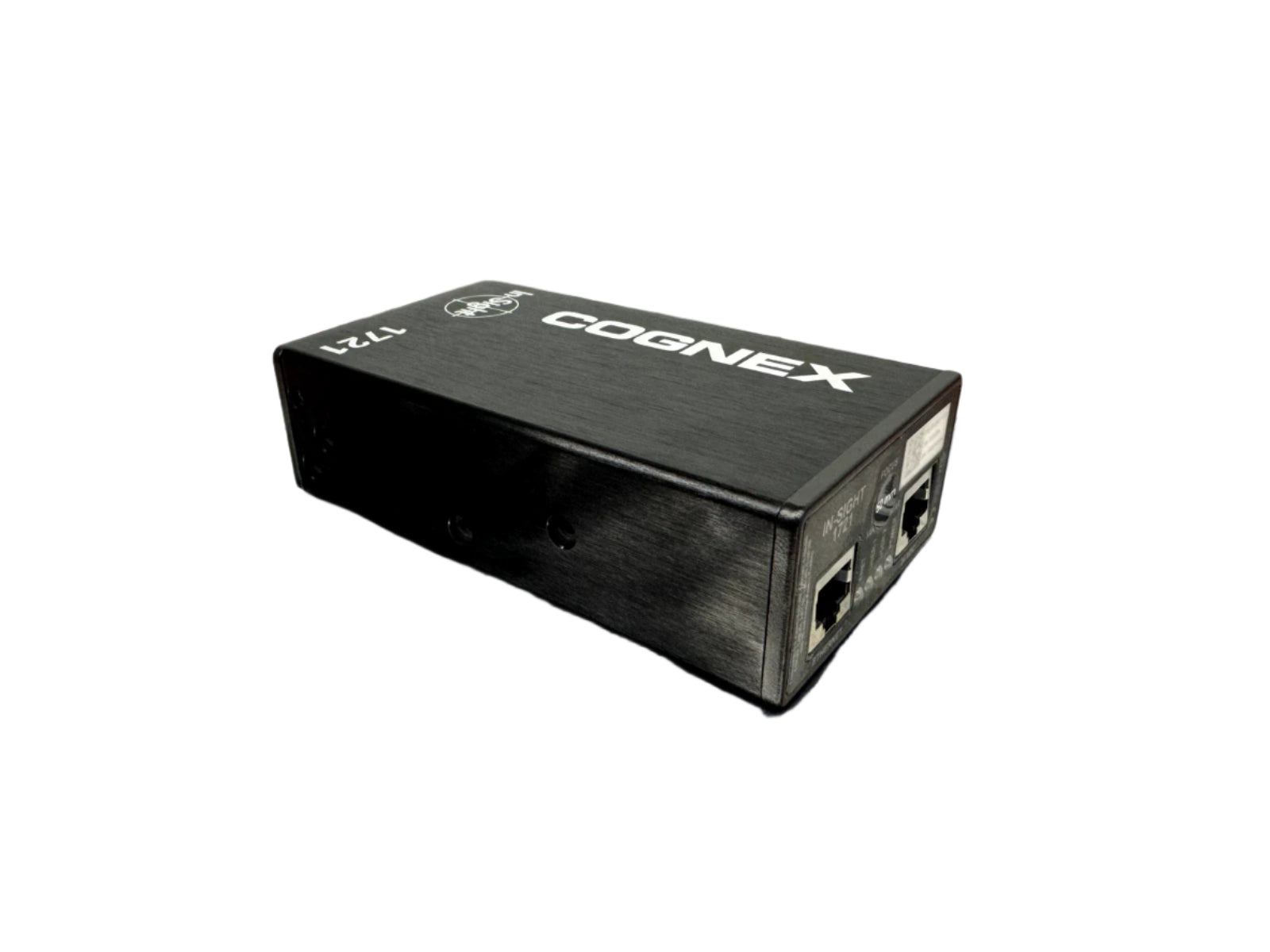

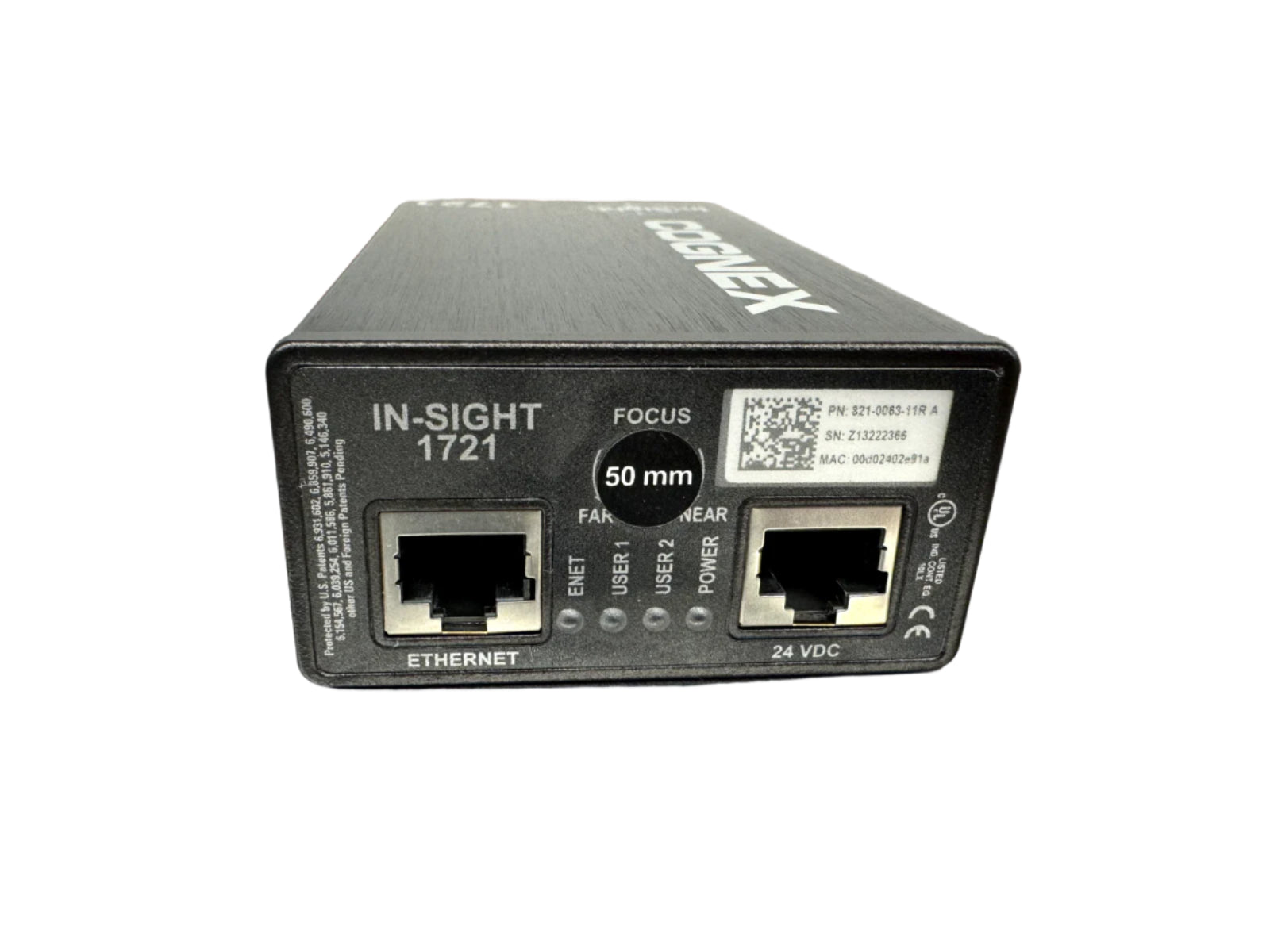

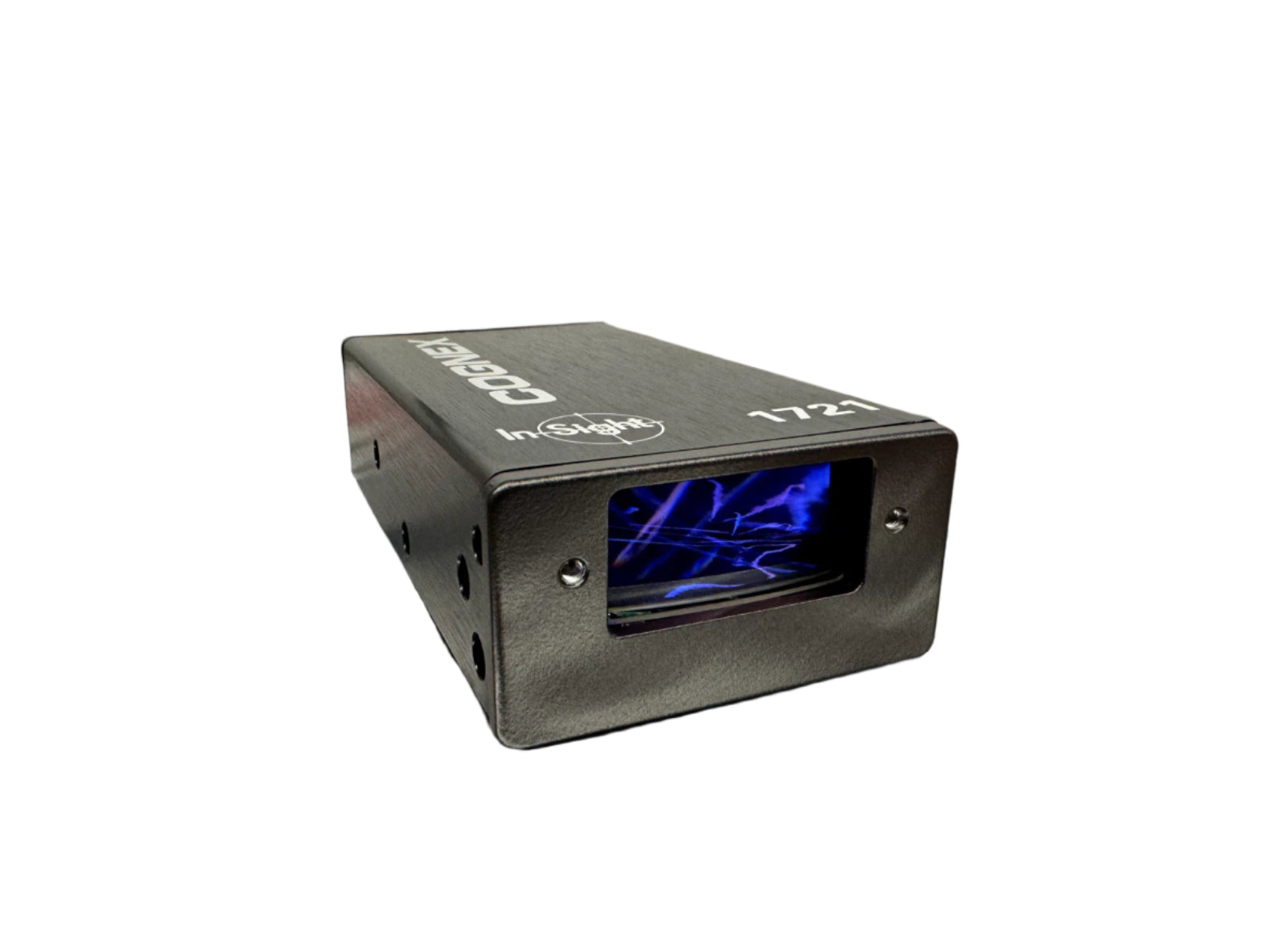

The Cognex In-Sight 1721, identified by part number 821-0063-11R A, is an industrial vision system designed for high-precision applications, particularly in semiconductor manufacturing. This model is commonly referred to as a "wafer reader" due to its capability to accurately read and inspect semiconductor wafers.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Cognex |
| Category |
Machine Vision Systems
|
| Part Number | 821-0063-11R A |
| Subcategory | Wafer Readers |
| Sensor Type | 1/3-inch CCD |
| Resolution | 1024 x 768 pixels |
| Lighting | Integrated red LED illumination |
| Working Distance | Variable; adjustable via focus screw |
| Mounting Options | Supports both vertical and horizontal configurations with optional mirror attachmen |
| Processor | Integrated vision processor |
| Memory |
128 MB non-volatile flash for job storage 256 MB SDRAM for image processing |
| Network Interface | Ethernet (10/100 Base-T, TCP/IP) |
| Serial Communication | RS-232C via breakout cable |
| I/O Ports |
1 opto-isolated acquisition trigger input 2 high-speed outputs Expandable via optional I/O modules |
| Power Supply | 24 VDC ±10% |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Humidity | 95% non-condensing |
| Protection Rating | IP67 (with appropriate lens cover) |
| Housing | Die-cast aluminum with painted finish |
| Dimensions | Approximately 83.3 mm x 123.2 mm x 61.4 mm |
| Weight | 0.35 kgs |
Information About 821-0063-11R A
The Cognex In-Sight 1721, identified by part number 821-0063-11R A, is an industrial vision system designed for high-precision applications, particularly in semiconductor manufacturing. This model is commonly referred to as a "wafer reader" due to its capability to accurately read and inspect semiconductor wafers.
Key Features:
- Model: In-Sight 1721
- Part Number: 821-0063-11R A
- Function: High-resolution vision system optimized for wafer reading and inspection tasks
- Applications: Semiconductor manufacturing, automated optical inspection, and other precision industrial processes
- Compliance: CE certified for use in regulated industrial environments
This vision system integrates seamlessly into automated production lines, providing reliable performance in demanding settings. Its compact design and robust construction make it suitable for environments where space is limited and operational reliability is critical.
