82453-85 | Honeywell 82400 Series DC Electromechanical Hour Meter
- Regular price
- $255.55
- Sale price
- $255.55
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 82453-85
Description
The Honeywell 82453-85 is an electromechanical hour meter designed to monitor cumulative operating time in industrial equipment. Operating from 10 to 80 VDC, it provides accurate time tracking up to 9999.9 hours using a quartz-controlled mechanism. Its sealed, panel-mounted design ensures reliable performance in demanding environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Controls & Indicators |
| Part Number | 82453-85 |
| Subcategory | Panel Meter |
| Series | 82400 Series |
| Type | Electromechanical Hour Meter |
| Operating Mode | Up Counter |
| Time Format | 9999.9 Hours |
| Number of Digits | 5 Digits |
| Display Type | Decade Wheel |
| Character Height | 0.120 in (3 mm) |
| Supply Voltage | 10 to 80 VDC |
| Reset Function | Non-Resettable |
| Mounting Type | Panel Mount, 3 Screw |
| Panel Cutout | Circular – 50.8 mm Diameter |
| Termination Style | 1/4 in Blade (Quick Connect) |
| Ingress Protection | IP66 |
| Operating Temperature | -40°C to +85°C |
| Approvals | UL Recognized, CSA Certified |
| Weight | 3.00 lbs |
Information About 82453-85

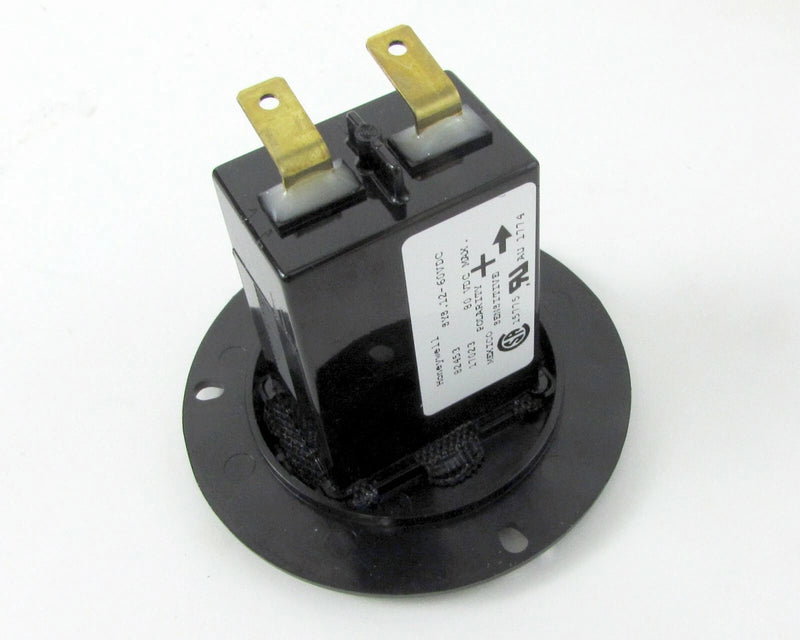

The 82453-85 is part of Honeywell’s 82400 Series of panel-mounted electromechanical time counters. It features a round housing with a sealed, shock-resistant polycarbonate case and lens to protect internal components from dust and moisture. Designed for non-resettable operation, the unit records total runtime in an upward counting format, making it suitable for maintenance scheduling and equipment lifecycle tracking. The device mounts in a circular panel cutout and connects via 1/4-inch blade terminals for straightforward integration into DC-powered systems.
Key Features:
-
Wide DC Voltage Range: Operates from 10 to 80 VDC for flexible installation.
-
Quartz Accuracy: ±0.02% (±200 ppm) timing precision for reliable hour tracking.
-
Non-Resettable Counter: Prevents tampering and ensures accurate lifetime measurement.
-
9999.9 Hour Capacity: Five-digit display with decimal format for detailed runtime tracking.
-
Sealed Construction: IP66-rated housing resists dust and water ingress.
-
High Temperature Tolerance: Operates from -40°C to +85°C for harsh environments.
-
Decade Wheel Display: Clear 0.120-inch (3 mm) character height for easy reading.
-
Panel Mount Design: Circular 50.8 mm cutout with 3-screw mounting configuration.
The 82453-85 delivers the reliability and precision required for accurate equipment runtime monitoring in industrial control systems.
