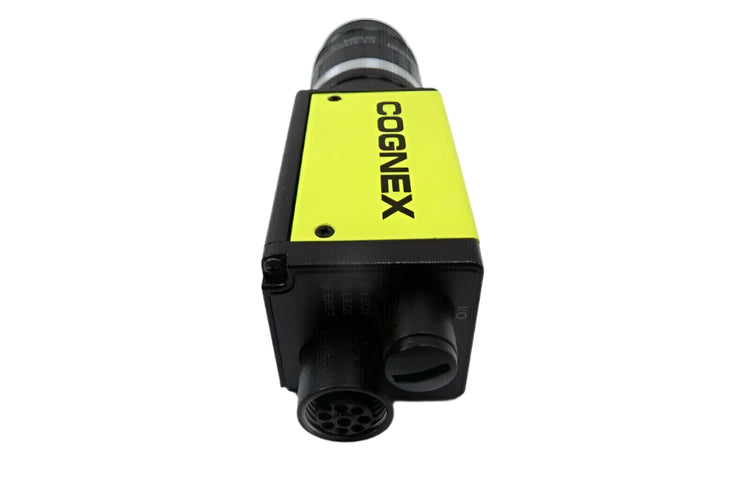

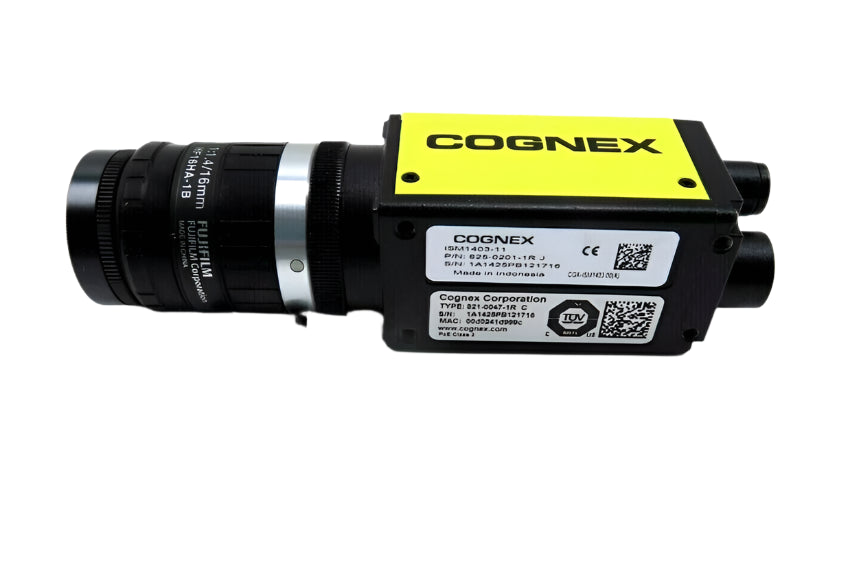

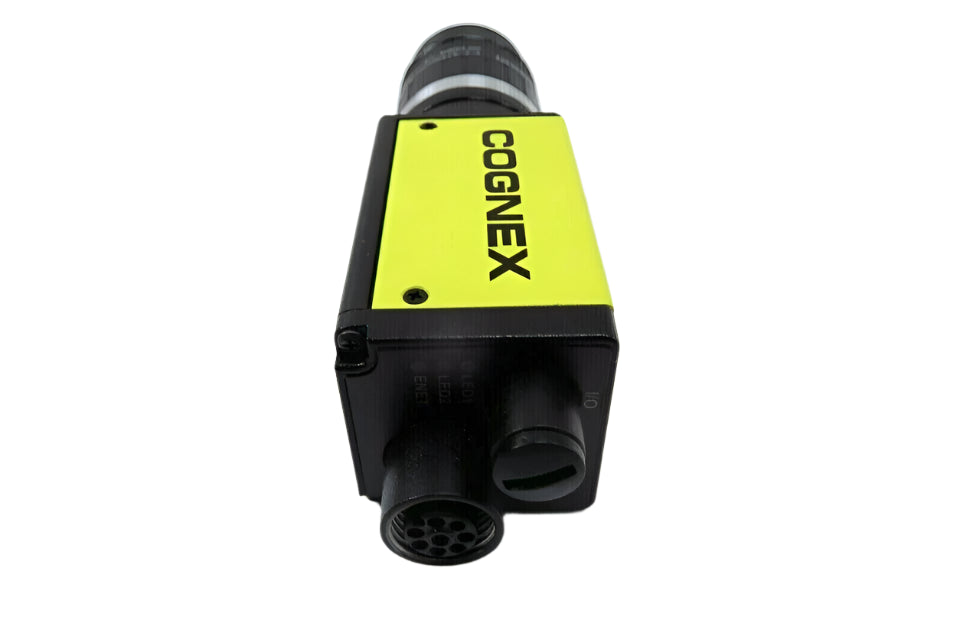

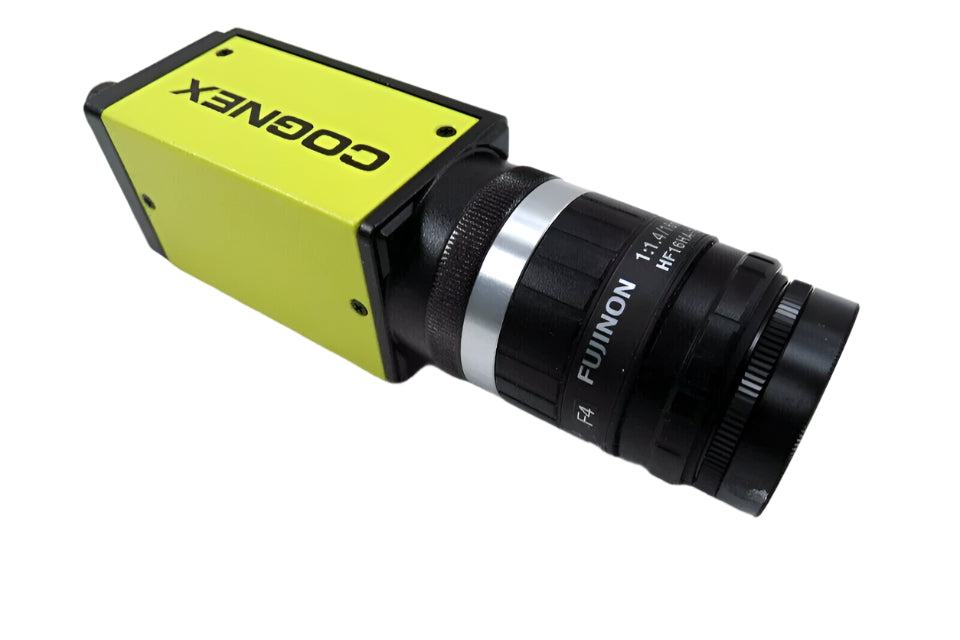

825-0201-1R | Cognex Industrial Camera
- Regular price
- $2,557.00
- Sale price
- $2,557.00
- Regular price
-
Couldn't load pickup availability
Do you need help?

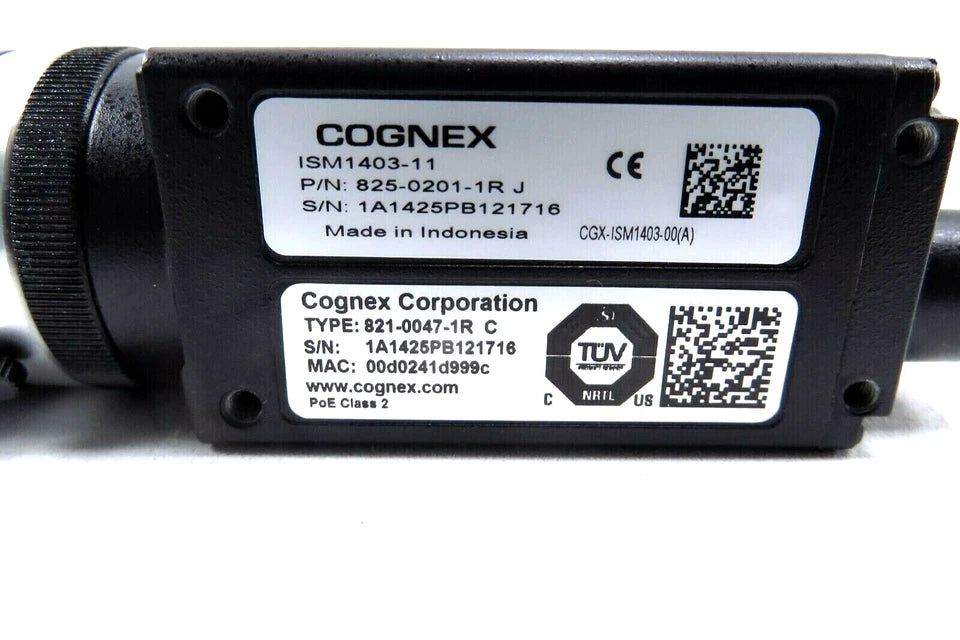

Product Description P/N: 825-0201-1R
Description
The Cognex 825-0201-1R is a compact, high-resolution vision system designed for industrial automation applications. It delivers precise image acquisition and processing capabilities, making it ideal for tasks such as inspection, measurement, and identification in space-constrained environments.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Cognex |
| Category |
Bar Code Equipment
|
| Part Number | 825-0201-1R |
| Subcategory | Bar Code Scanner Hand Held |
| Series | In-Sight Micro 1403 |
| Sensor Type | 1/1.8-inch CCD |
| Resolution | 1600 x 1200 pixels |
| Pixel Size | 4.4 x 4.4 µm |
| Frame Rate | Up to 14 frames per second |
| Shutter Speed | 52 µs to 1000 ms |
| Memory | 128MB flash, 256MB SDRAM |

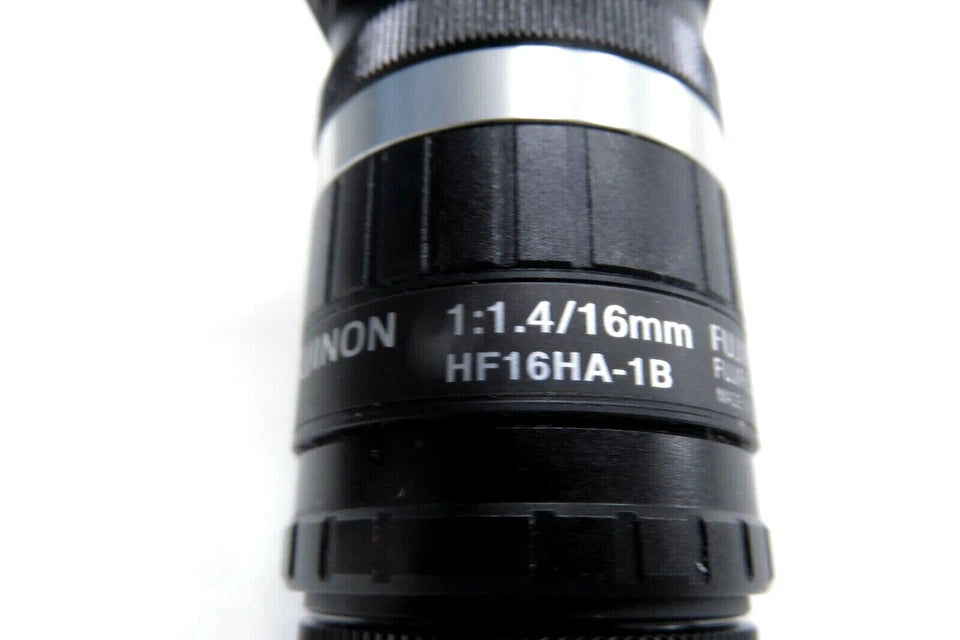

| Lens Mount | CS-mount and C-mount (with 5mm extension) |
| Trigger Input | 1 opto-isolated, 20–28VDC |
| High-Speed Outputs | 2 opto-isolated, NPN/PNP, 100mA max |
| Network Interface | 10/100 BaseT Ethernet with auto MDI/MDIX |
| Power Supply | Class 2 PoE (48V nominal) |
| Power Consumption | Max 6.49 W |
| Housing Material | Die-cast zinc |
| Protection Rating | IP51 (with cables and lens attached) |
| Operating Temperature | 0°C to 45°C |
| Dimensions | 30mm x 30mm x 60mm |
| Weight | 0.27 lbs |
Information About 825-0201-1R
The 825-0201-1R is part of Cognex's In-Sight Micro 1403 series, featuring a 1/1.8-inch CCD sensor with a resolution of 1600 x 1200 pixels. It operates at up to 14 frames per second and utilizes a progressive scan, full-frame integration method. The system includes 128MB of non-volatile flash memory and 256MB of SDRAM for image processing. Its compact design, combined with Power over Ethernet (PoE) capability, allows for easy integration into existing industrial setups.
Key Features:
- High-Resolution Imaging: Captures images at 1600 x 1200 pixels for detailed analysis.
- Compact Form Factor: Measures 30mm x 30mm x 60mm, suitable for tight spaces.
- Flexible Lens Options: Supports both CS-mount and C-mount lenses with a 5mm extension ring.
- Robust Memory: Equipped with 128MB flash memory and 256MB SDRAM for efficient processing.
- PoE Enabled: Simplifies installation by combining power and data over a single Ethernet cable.
- Durable Construction: Die-cast zinc housing with IP51 protection rating when properly sealed.
- Versatile I/O: Includes one opto-isolated trigger input and two high-speed outputs.
- Software Compatibility: Operates with In-Sight Explorer software for configuration and monitoring.
The 825-0201-1R delivers the reliability and precision required for demanding machine vision applications in industrial environments.
