825-0287-1R | Cognex Linescan Without Patmax

Description

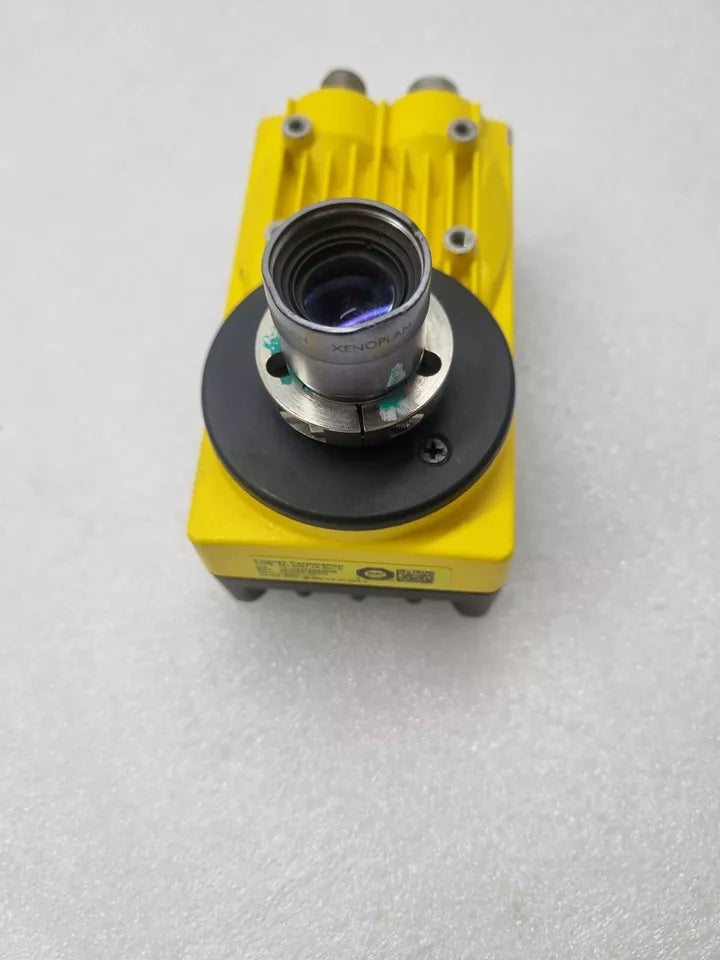

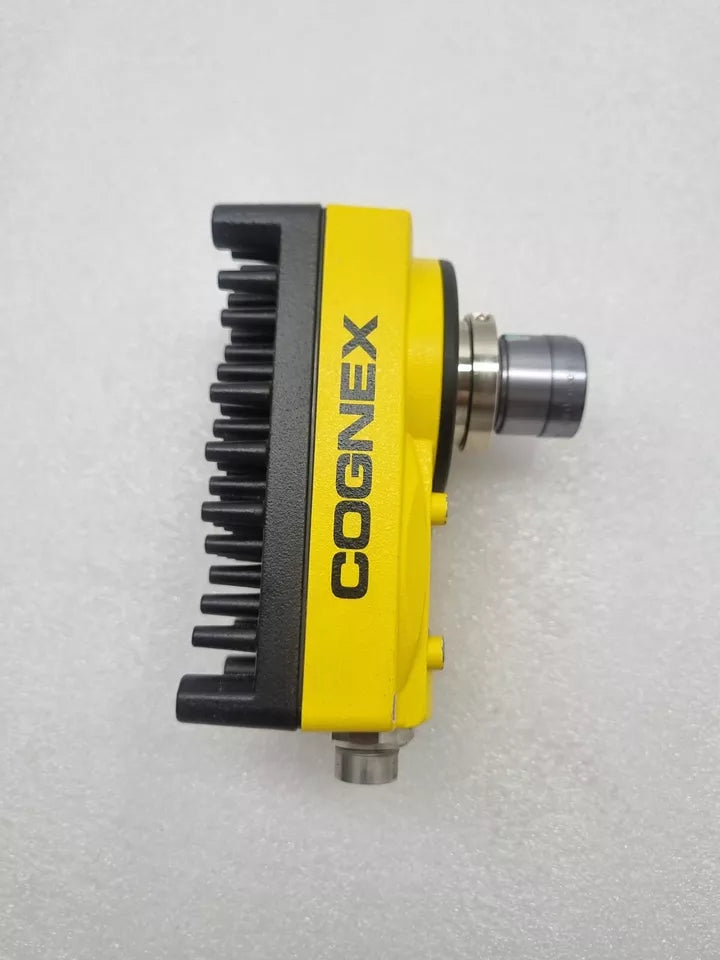

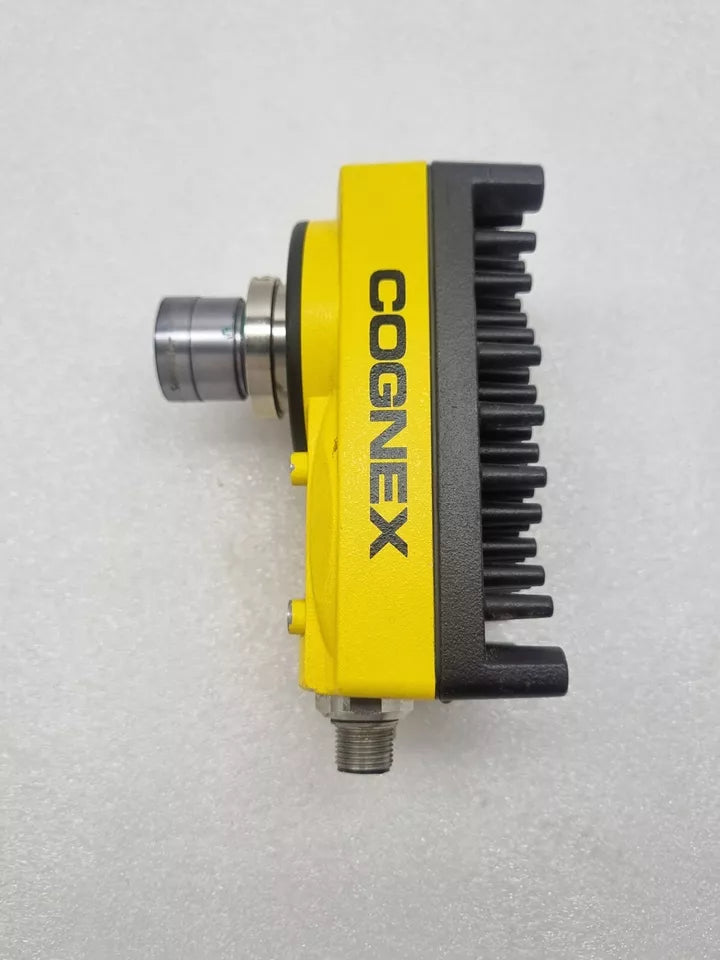

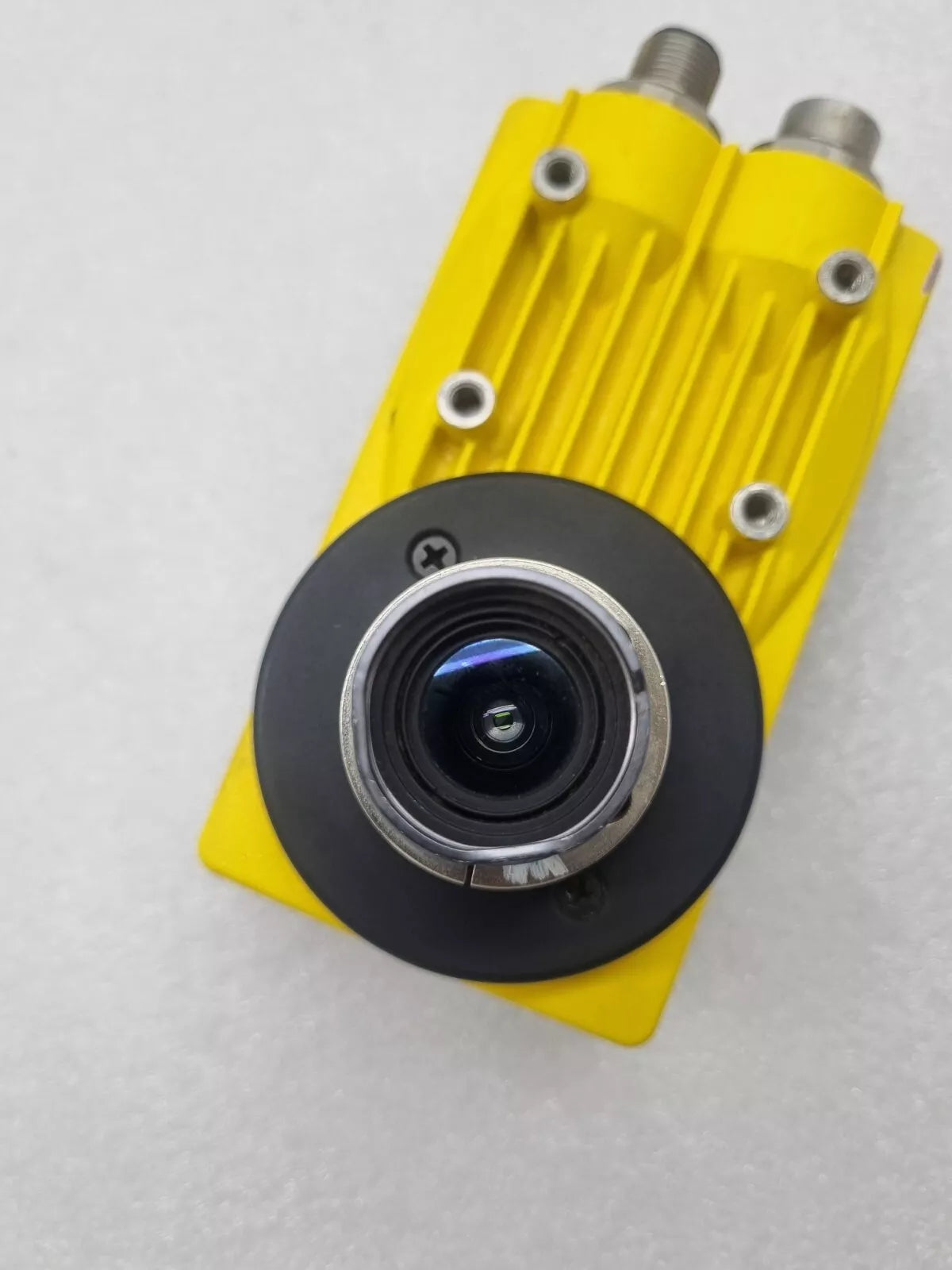

The Cognex 825-0287-1R is a linescan vision system that operates without Patmax pattern matching technology. It is designed for high-speed, high-resolution inspection and measurement applications, providing reliable performance in industrial automation settings.

Technical Specifications

Information About 825-0287-1R

The 825-0287-1R is a high-performance vision system assembly designed by Cognex, part of the In-Sight 5000 Series, and is specifically engineered to meet the demanding requirements of industrial automation and quality control applications. As a member of the Camera & Vision category and more precisely the Vision System Assembly subcategory, the 825-0287-1R is built to deliver reliable and accurate imaging capabilities for a wide range of inspection and monitoring tasks. Weighing just 0.54 lbs, this compact and lightweight device is easy to integrate into various industrial setups, making it an ideal choice for environments where space and weight are critical considerations.

At the core of the 825-0287-1R is its impressive 8.4-megapixel resolution, offering a high level of detail with a pixel count of 1024 x 8192 pixels. This resolution is essential for applications requiring precise image capture, such as defect detection, surface inspection, and measurement tasks. The ability to capture high-resolution images ensures that even the smallest details are clearly visible, enhancing the accuracy and reliability of inspection processes. The 825-0287-1R high resolution makes it suitable for applications in industries such as electronics manufacturing, automotive, pharmaceuticals, and food processing, where quality control is paramount.

The 825-0287-1R operates at a scan rate of 44,000 Hz, allowing it to capture images at high speeds. This high scan rate is crucial for applications involving fast-moving objects or processes that require real-time monitoring and analysis. The ability to capture images rapidly without compromising on resolution ensures that the 825-0287-1R can keep up with high-speed production lines and other dynamic environments, making it an invaluable tool for maintaining efficiency and quality in industrial operations.

Designed to operate on a 24 VDC input voltage, the 825-0287-1R is compatible with standard industrial power supplies, simplifying its integration into existing systems. The use of a common voltage standard ensures that the vision system can be easily installed without the need for additional power conversion equipment, reducing installation complexity and costs. This compatibility with industrial power standards makes the 825-0287-1R a practical choice for various applications across different industries.

Connectivity is a key feature of the 825-0287-1R, which includes support for Gigabit Ethernet, providing high-speed data transfer capabilities. The use of Gigabit Ethernet ensures that large amounts of image data can be transmitted quickly and reliably, enabling real-time processing and analysis. This high-speed connectivity is essential for applications where immediate feedback and decision-making are required. The 825-0287-1R is equipped with one 8-pin M12 connector for Ethernet connections, allowing it to be easily integrated into networked environments and facilitating communication with other devices and systems.

In addition to Ethernet connectivity, the 825-0287-1R features a breakout connection using a separate 8-pin M12 connector. This additional connectivity option provides flexibility in integrating the vision system with various peripheral devices and control systems, enhancing its versatility in complex automation setups. The breakout connection allows for customized configurations, making the 825-0287-1R adaptable to a wide range of applications and system architectures.

For serial communication, the 825-0287-1R includes an RS-232C connection, a widely used standard in industrial automation for data exchange between devices. The inclusion of RS-232C ensures compatibility with legacy systems and devices, making the 825-0287-1R suitable for both new installations and upgrades to existing systems. This versatility in communication options enhances the integration capabilities of the vision system, ensuring that it can be seamlessly incorporated into diverse industrial environments.

The 825-0287-1R is designed without an integrated lens, allowing users the flexibility to select and install lenses that are best suited to their specific application requirements. This modular approach enables customization of the field of view and focal length, ensuring that the vision system can be optimized for different inspection tasks. The ability to choose the appropriate lens enhances the system’s adaptability, making it suitable for a wide range of inspection and monitoring applications.

A key feature of the 825-0287-1R is its IP67 protection rating, indicating that the device is dust-tight and protected against the effects of temporary immersion in water. This high level of environmental protection ensures that the vision system can operate reliably in harsh industrial conditions, including areas with exposure to dust, moisture, and other contaminants. The IP67 rating makes the 825-0287-1R suitable for use in challenging environments such as outdoor installations, wash-down areas, and other settings where environmental protection is essential.

The robust construction and advanced features of the 825-0287-1R make it an ideal choice for industrial applications that demand high performance, reliability, and flexibility. Its high-resolution imaging, rapid scan rate, and versatile connectivity options ensure that it can meet the needs of modern industrial automation and quality control processes. Whether used for defect detection, assembly verification, or process monitoring, the 825-0287-1R delivers the precision and reliability required to maintain high standards of quality and efficiency.

In summary, the Cognex 825-0287-1R is a high-resolution vision system assembly designed for demanding industrial applications. With its 8.4-megapixel resolution, 44,000 Hz scan rate, and robust IP67 protection rating, the 825-0287-1R offers the performance and reliability needed for a wide range of inspection and monitoring tasks. Its compatibility with Gigabit Ethernet, RS-232C communication, and customizable lens options make it a versatile solution for integrating into complex industrial automation systems. The 825-0287-1R is an essential tool for enhancing quality control and operational efficiency in industries that require precise and reliable vision capabilities.

Manufacturer information

Cognex Corporation is a global leader in machine vision and industrial barcode reading. Founded in 1981, Cognex specializes in providing vision systems, software, and sensors for automation, quality inspection, and logistics. Their solutions are widely used in manufacturing, logistics, and various industries to enhance efficiency and quality control.
