825-10186-1R | Cognex Barcode Readers
- Regular price
- $3,154.00
- Sale price
- $3,154.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 825-10186-1R
Description

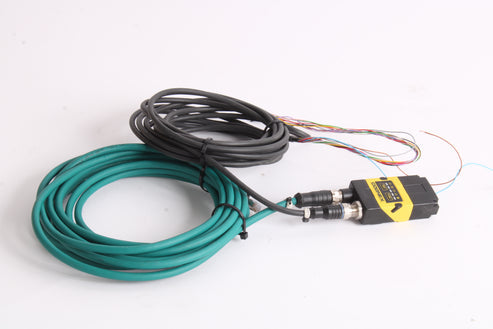

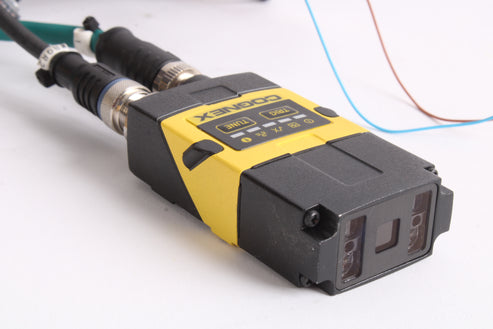

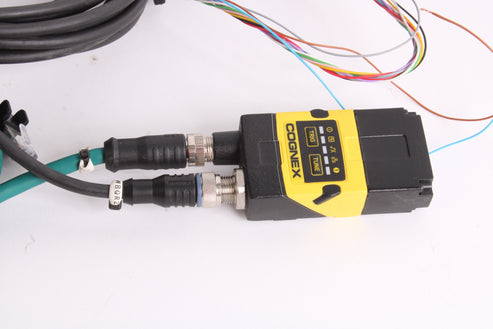

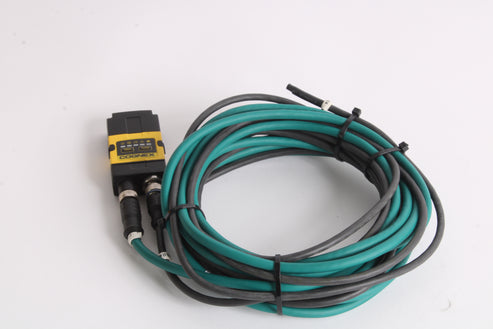

The Cognex 825-10186-1R is a DataMan DM262X fixed-mount barcode reader, part of the DataMan 260 series. Designed for high-speed, high-accuracy decoding of both 1D and 2D barcodes, including challenging direct part marks (DPM), it is well-suited for industrial automation applications.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Cognex |
| Category |
Bar Code Equipment
|
| Part Number | 825-10186-1R |
| Subcategory | Bar Code Scanner Hand Held |
| Mount Orientation | Right-Angle |
| Code Type Support | 1D and 2D barcodes, including DPM (Direct Part Marks) |
| Lens Compatibility | Edmund Optics 8.5mm F1.3 lens |
| Decoding Algorithms | 1DMax™, 2DMax™, Hotbars™ |
| Sensor Resolution | 1280 x 960 pixels (1.3MP global shutter) |
| Lighting | Integrated red LED (adjustable brightness) |
| Communication Interfaces | Ethernet (TCP/IP), RS-232, USB |
| Power Supply | 24V DC |
| Enclosure Rating | IP65 |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Housing | Industrial aluminum |
| Configuration Tools | Cognex Setup Tool software |
| Applications | Factory automation, part tracking, quality control |
| Weight | 0.35 lbs |
Information About 825-10186-1R
The Cognex DataMan DM262X, identified by part number 825-10186-1R, is a fixed-mount industrial barcode reader designed for high-speed and high-accuracy decoding of 1D and 2D barcodes, including direct part marks (DPM). This model is part of the DataMan 260 Series and features a right-angle configuration, making it ideal for space-constrained installations.
Key Features:
- Model: DataMan DM262X
- Part Number: 825-10186-1R
- Function: High-performance barcode reader for 1D, 2D, and DPM codes
- Applications: Manufacturing, logistics, product traceability, and automated inspection systems
- Compliance: IP65-rated industrial housing, CE certified for use in regulated environments
This barcode reader is equipped with advanced decoding algorithms like 1DMax™, 2DMax™, and Hotbars™ to ensure accurate code reading even under challenging conditions such as low contrast or damaged labels. Its compact, rugged design and powerful imaging capabilities allow it to integrate seamlessly into automated production lines, offering reliable performance in demanding industrial settings.
Description
The Cognex 825-10186-1R is a DataMan DM262X fixed-mount barcode reader, part of the DataMan 260 series. Designed for high-speed, high-accuracy decoding of both 1D and 2D barcodes, including challenging direct part marks (DPM), it is well-suited for industrial automation applications.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Cognex |
| Category |
Bar Code Equipment
|
| Part Number | 825-10186-1R |
| Subcategory | Bar Code Scanner Hand Held |
| Mount Orientation | Right-Angle |
| Code Type Support | 1D and 2D barcodes, including DPM (Direct Part Marks) |
| Lens Compatibility | Edmund Optics 8.5mm F1.3 lens |
| Decoding Algorithms | 1DMax™, 2DMax™, Hotbars™ |
| Sensor Resolution | 1280 x 960 pixels (1.3MP global shutter) |
| Lighting | Integrated red LED (adjustable brightness) |
| Communication Interfaces | Ethernet (TCP/IP), RS-232, USB |
| Power Supply | 24V DC |
| Enclosure Rating | IP65 |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Housing | Industrial aluminum |
| Configuration Tools | Cognex Setup Tool software |
| Applications | Factory automation, part tracking, quality control |
| Weight | 0.35 lbs |
Information About 825-10186-1R
The Cognex DataMan DM262X, identified by part number 825-10186-1R, is a fixed-mount industrial barcode reader designed for high-speed and high-accuracy decoding of 1D and 2D barcodes, including direct part marks (DPM). This model is part of the DataMan 260 Series and features a right-angle configuration, making it ideal for space-constrained installations.
Key Features:
- Model: DataMan DM262X
- Part Number: 825-10186-1R
- Function: High-performance barcode reader for 1D, 2D, and DPM codes
- Applications: Manufacturing, logistics, product traceability, and automated inspection systems
- Compliance: IP65-rated industrial housing, CE certified for use in regulated environments
This barcode reader is equipped with advanced decoding algorithms like 1DMax™, 2DMax™, and Hotbars™ to ensure accurate code reading even under challenging conditions such as low contrast or damaged labels. Its compact, rugged design and powerful imaging capabilities allow it to integrate seamlessly into automated production lines, offering reliable performance in demanding industrial settings.
