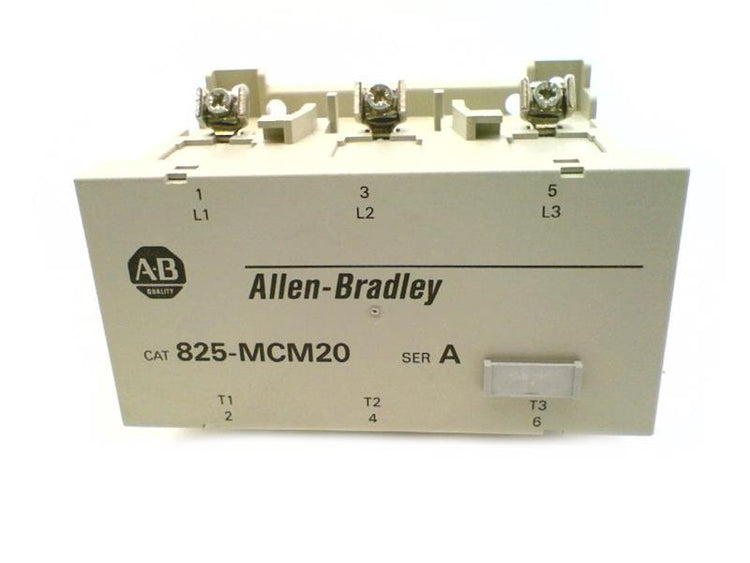

825-MCM20 | Allen-Bradley Converter Module
- Regular price
- $899.00
- Sale price
- $899.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 825-MCM20
Description
The Allen-Bradley 825-MCM20 is a current converter module from the 825-P series, designed to protect and monitor three-phase industrial motors. It supports a current range of 2.5 to 20 A and a continuous thermal current of 24 A.
Technical Specifications
| Condition | New/Never Used Surplus | |
|---|---|---|
| Brand | Allen-Bradley |
|
| Category |
Control Devices
|
|
| Part Number | 825-MCM20 |
|
| Subcatecory |
Conversion Modules
|
|
| Product Bulletin | 825-P Motor Protection unit | |
|
Current Range |
2.5-20 A | |
| Motor Circuit per IEC | 660V AC | |
| Operating Voltage | 690 VAC (IEC); 600 VAC (CSA/UL) | |
| Rated Continuous Thermal Current | 24 A | |
| Rated Frequency | 50/60Hz +/- 3Hz | |
| Rated Saturation Current | 240 Amperes | |
| Weight | 1.05 kgs |
Information About 825-MCM20
The Allen-Bradley 825-MCM20 is a current converter module from the 825-P series, designed to protect and monitor three-phase industrial motors. It supports a current range of 2.5 to 20 A and a continuous thermal current of 24 A. Operating at voltages up to 690 VAC (IEC) or 600 VAC (CSA/UL), it offers comprehensive motor protection features including thermal overload, overcurrent, undercurrent, phase loss, ground fault detection, and more. The module includes inputs for up to six PTC thermistors, discrete I/O, and optional DeviceNet communication. Housed in an IP65/IP20-rated enclosure, it is suitable for various industrial motor protection applications .
Key Features:
-
Current Range: 2.5 to 20 A
-
Continuous Thermal Current: 24 A
-
Operating Voltage: Up to 690 VAC (IEC), 600 VAC (CSA/UL)
-
Protection Features: Thermal overload, overcurrent, undercurrent, phase loss, ground fault detection
-
Inputs: Supports up to six PTC thermistors
-
Communication: Optional DeviceNet
-
Enclosure Rating: IP65/IP20
This module is designed for easy integration into motor control systems, providing reliable protection and monitoring capabilities for industrial applications.
