Product Description P/N: 8288261.9638
Description

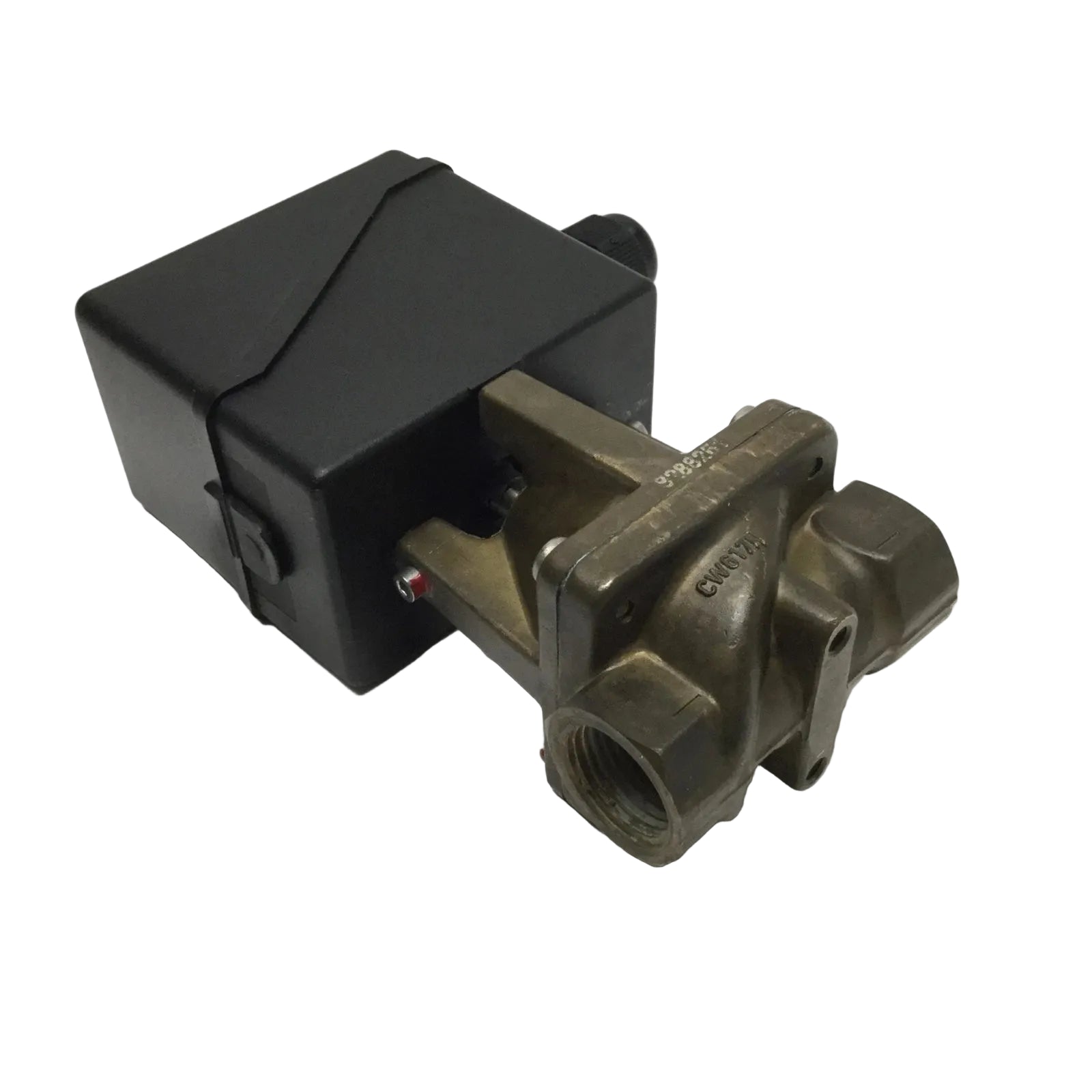

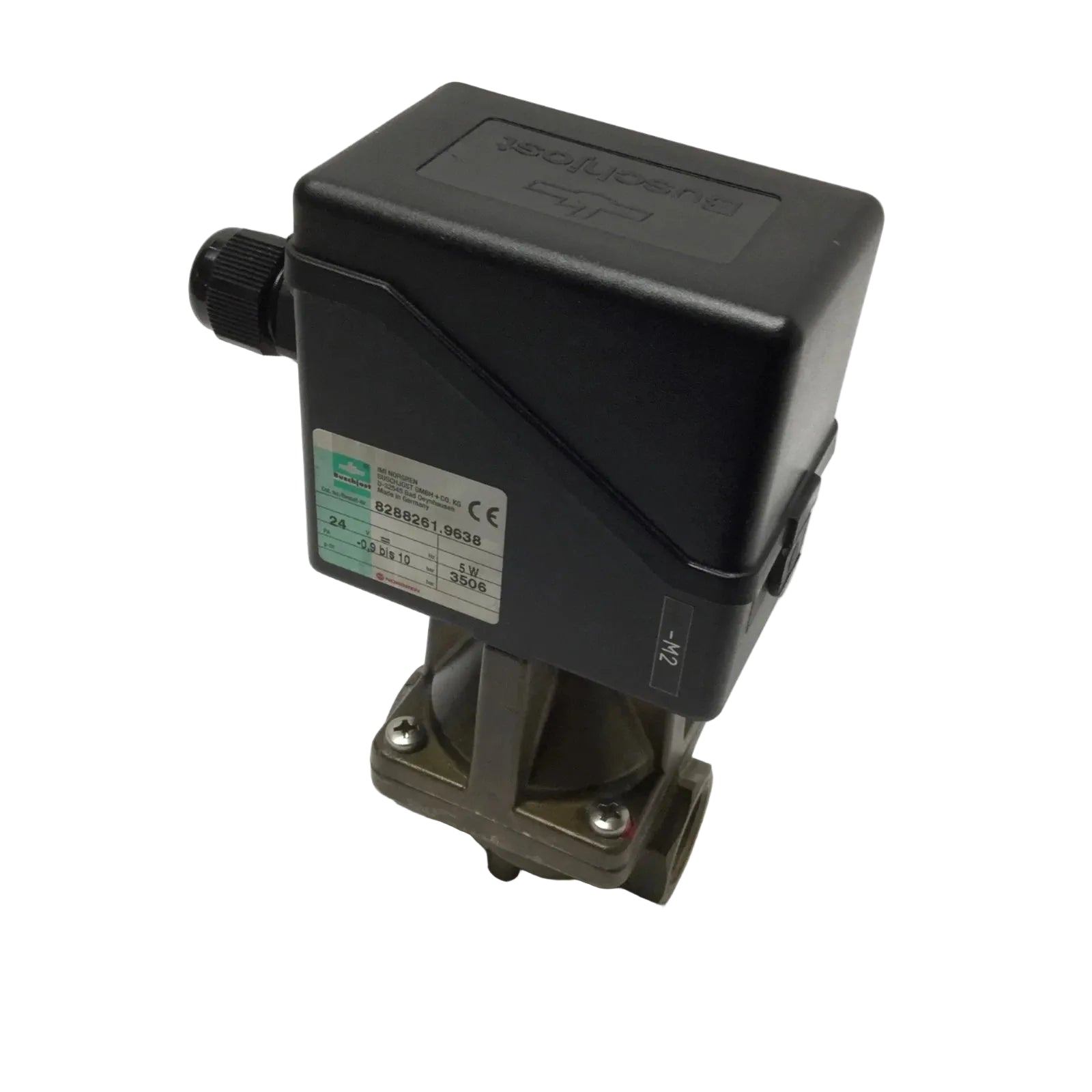

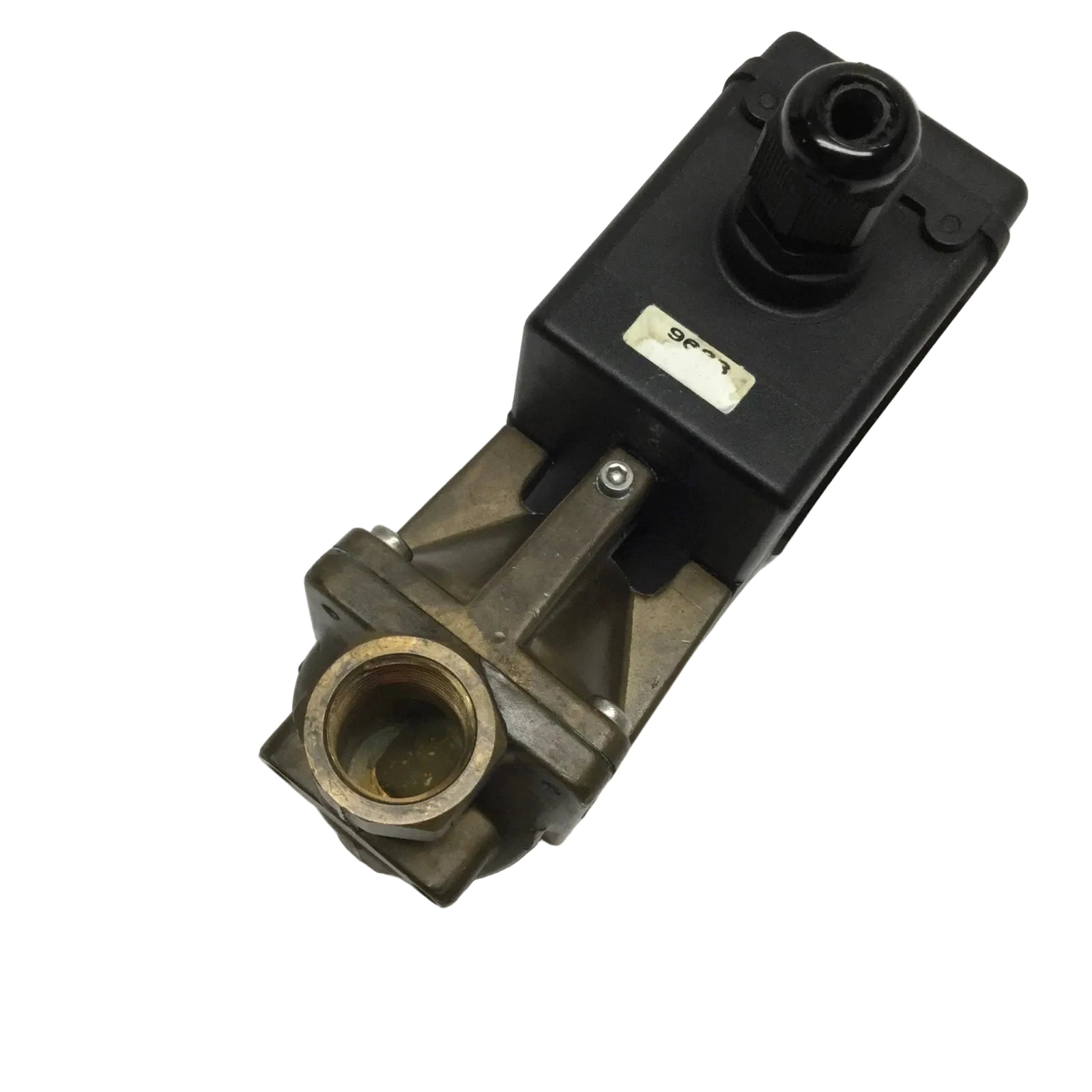

The Buschjost 8288261.9638 is a 2-way motorized valve with a brass body designed for precise fluid control in industrial automation systems. Operating on 24VDC with a bipolar stepper motor, it provides accurate positioning and stable flow regulation up to 10 bar. This valve is suited for applications requiring controlled flow of gases or liquids within process and OEM equipment.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Buschjost |
| Category | Valves |
| Part Number | 8288261.9638 |
| Subcategory | Motorized Valves |
| Valve Type | 2-Way |
| Body Material | Brass |
| Port Size | G1/2 |
| Maximum Operating Pressure | -0.9 to 10 bar |
| Flow Coefficient (Kv) | 1.1 |
| Motor Type | Bipolar Stepper Motor |
| Motor Frequency | 200 Hz |
| Step Resolution | 2028 steps per 90° rotation |
| Motor Voltage | 24VDC |
| Current Rating | 0.4A Constant Current |
| Drive Requirement | External Drive Required |
| Weight | Approx. 1.2 kg |
Information About 8288261.9638
The 8288261.9638 is a stepper motor-driven valve engineered for controlled modulation in process control environments. Built with a durable brass body and G1/2 threaded ports, it is designed for integration into fluid handling systems where accurate adjustment of flow is required. The integrated bipolar stepper motor operates at up to 200 Hz and requires an external drive for controlled stepping, delivering 2028 steps per 90° rotation for fine positioning. Its operating pressure range of -0.9 to 10 bar makes it compatible with both vacuum and pressurized systems in industrial automation, laboratory equipment, and machinery control panels.
Key Features:
- 2-Way Flow Configuration: Enables precise on/off or modulating control in single-line fluid circuits.
- Brass Valve Body: Provides corrosion resistance and mechanical durability in industrial environments.
- G1/2 Port Size: Standard threaded connection for straightforward installation into piping systems.
- Wide Pressure Range: Operates from -0.9 to 10 bar, supporting vacuum and pressurized applications.
- High-Resolution Stepper Motor: 2028 steps per 90° rotation for accurate flow adjustment.
- 24VDC Operation: Powered by 24VDC at 0.4A constant current for industrial control compatibility.
- 200 Hz Motor Frequency: Supports responsive positioning when paired with a suitable drive controller.
- External Drive Required: Allows flexible integration with compatible motion control systems.
The 8288261.9638 delivers the reliability and precision required for controlled fluid regulation in automated industrial systems.
