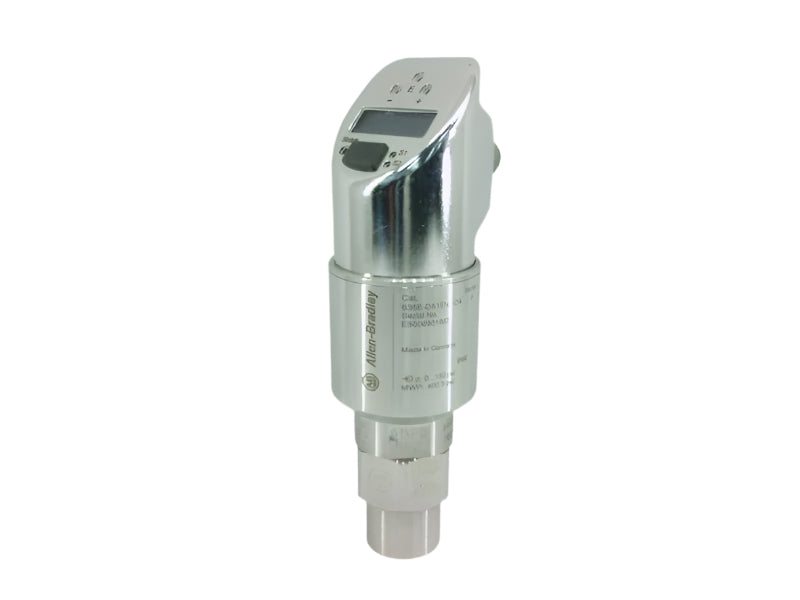

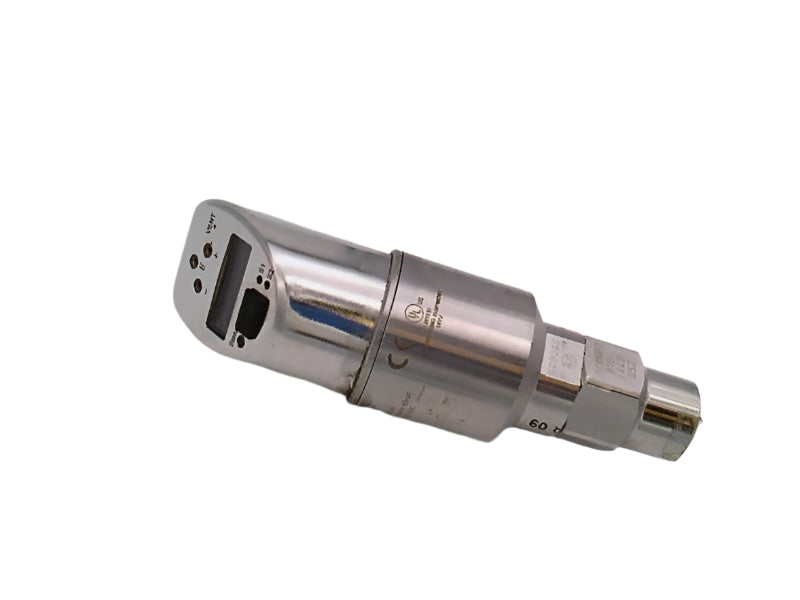

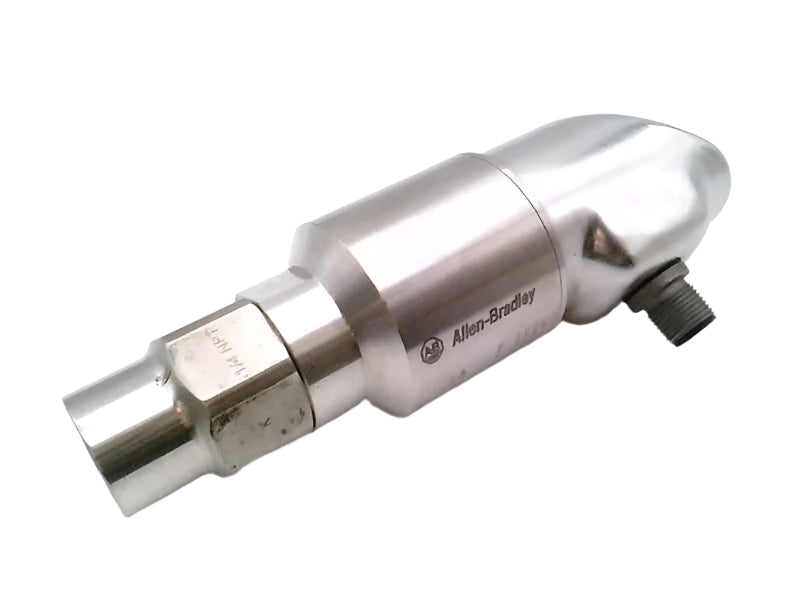

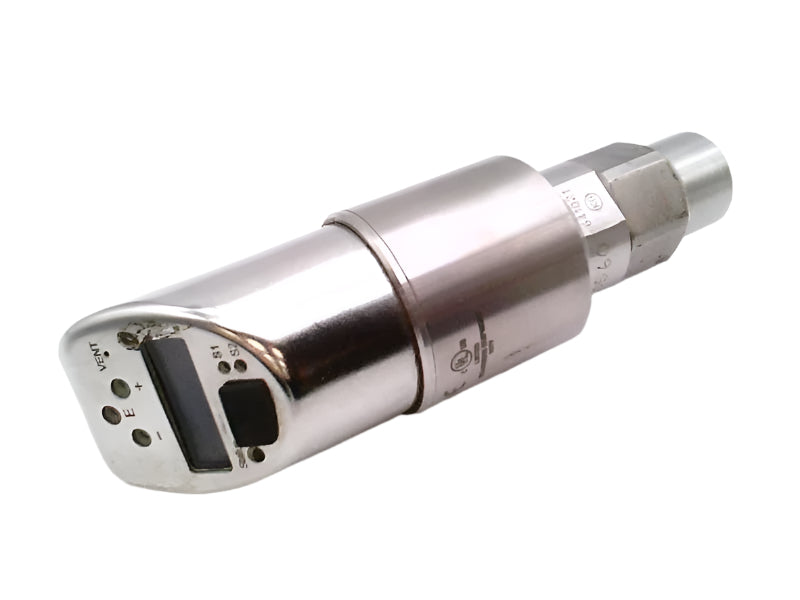

836E-DA1EN1-D4 | Allen Bradley Pressure Switch
- Regular price
- $854.00
- Sale price
- $854.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 836E-DA1EN1-D4
Description
The 836E-DA1EN1-D4 is a solid-state pressure switch from Allen-Bradley’s 836E family, designed to monitor fluid or gas pressure in industrial systems. It offers a measurement range up to 150 psi, features a ¼″ NPT female pressure port, and provides dual PNP solid-state switching outputs (12–30 V DC) with a 4-pin M12 electrical connection.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Allen Bradley |
| Category |
Sensors & Switches
|
| Part Number | 836E-DA1EN1-D4 |
| Subcategory | Pressure Switch |
| Technology | Solid-State |
| Pressure Range | 0–145 PSI |
| Pressure Port | 1/4" NPT Female |
| Output Type | Dual PNP (2 Solid-State Switching Outputs) |
| Operating Voltage | 12–30 V DC |
| Electrical Connection | 4-Pin M12 Connector |
| Weight | 0.63 lbs |
Information About 836E-DA1EN1-D4
The 836E-DA1EN1-D4 is a solid-state pressure switch from Allen-Bradley’s 836E series, developed for reliable pressure monitoring in industrial automation and fluid control systems. Designed with a 0–145 PSI pressure range, it features dual PNP outputs and a ¼″ NPT female pressure port, enabling accurate control and integration into a wide range of applications. Operating on 12–30 V DC and using a standard 4-pin M12 connector, this unit supports quick installation and consistent performance in harsh environments. Although discontinued, it remains widely used in OEM and MRO operations.
Key Features:
- Solid-State Pressure Sensing: Provides precise, electronic switching without mechanical wear, ensuring long service life and fast response times.
- Dual PNP Output Configuration: Supports two programmable solid-state outputs for flexible control and feedback functionality.
- Standard NPT Connection: ¼″ NPT female process connection allows easy integration with fluid systems and manifolds.
- Wide Voltage Range: Operates on 12–30 V DC for compatibility with most industrial control systems.
- Compact, Durable Design: Ideal for space-constrained control panels, with rugged construction suitable for demanding environments.
- M12 Electrical Interface: 4-pin M12 connector ensures quick and secure electrical hookup using standard cabling.
- Digital Configuration Support (Series Feature): Most 836E models support push-button setup and LED/LCD status indicators for simplified commissioning.
The Allen-Bradley 836E-DA1EN1-D4 pressure switch delivers dependable, high-performance pressure monitoring for automation systems. With dual solid-state outputs, wide operating voltage, and standard connection types, it offers a streamlined solution for maintaining pressure control across various industrial processes—even after its discontinuation.
