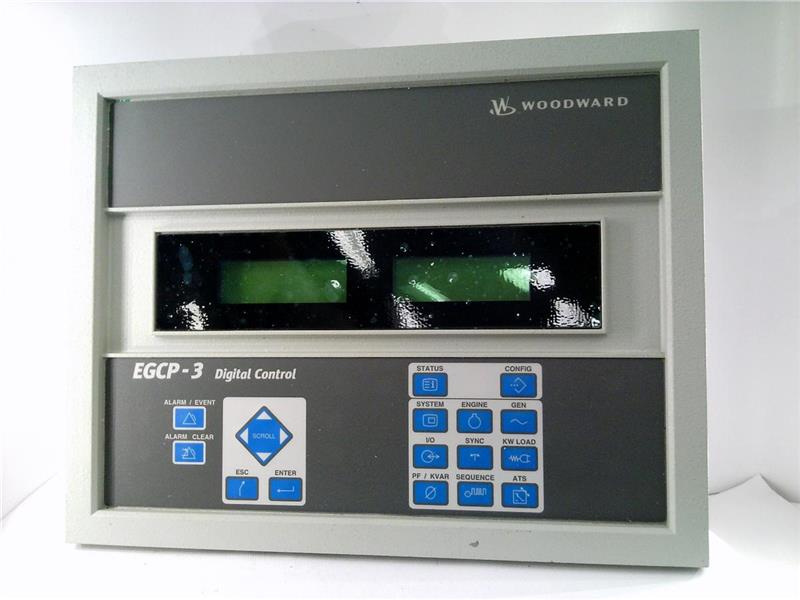

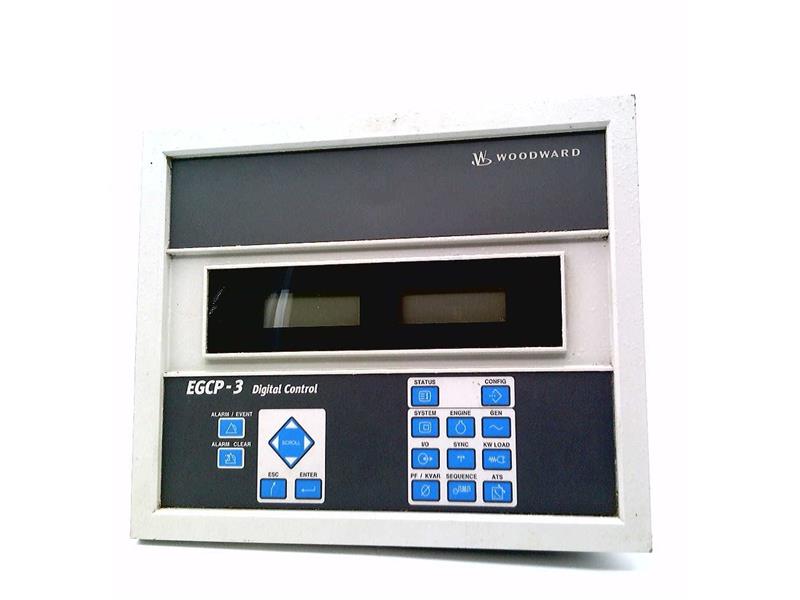

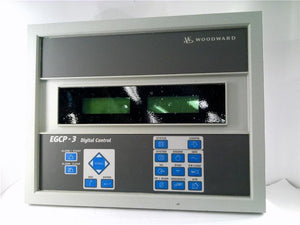

8406-113 | Woodward Dual Display MC Control Operator Interface EGCP-3 Series

The 8406-113 is a Woodward Dual Display MC Control Operator Interface designed for use with the EGCP-3 Series. It provides a dual display interface for monitoring and controlling engine and generator parameters. The device is engineered for integration into EGCP-3 systems, offering reliable and precise operation in industrial applications.

The 8406-113 is an advanced Operator Interface designed by Woodward, categorized under HMI (Human-Machine Interface), MMI (Man-Machine Interface), and OIT (Operator Interface Terminal) systems. It is specifically engineered to provide a reliable and efficient interface for monitoring and controlling industrial processes, particularly within the context of engine and generator management. As an operator interface, the 8406-113 facilitates the communication between the operator and the control systems, enabling precise adjustments, monitoring, and control of various parameters critical to system operation.

The unit has a robust and compact design, with dimensions of 282H x 359W x 135D mm, making it suitable for integration into a wide range of industrial environments. Despite its compact size, the 8406-113 is a substantial device, weighing approximately 9.00 lbs (4.3 kg or 9.5 pounds), indicating its sturdy construction and durability. This weight also suggests the use of high-quality materials in its build, ensuring that the interface can withstand the rigors of industrial applications and provide long-term reliability.

One of the key features of the 8406-113 Operator Interface is its versatile speed bias output capabilities. The unit can output speed bias signals in various formats, including 4–20 mA, 0–5 V, Pulse Width Modulation (PWM), or ±3 V. This flexibility in output options allows the interface to be used in a variety of applications, catering to different control system requirements. The ability to handle multiple signal types makes the 8406-113 an adaptable solution for controlling engine speed and other related parameters, ensuring compatibility with a broad range of systems.

The 8406-113 operates on an input voltage range of 18-32 V DC, providing sufficient power to handle its functions while maintaining energy efficiency. This wide voltage range allows the interface to be used in diverse environments where different power supply standards may be present. Additionally, the device is designed to function optimally within a broad operating temperature range of –20 to +70 °C, making it suitable for use in various industrial settings, from cold storage facilities to high-temperature environments. The storage temperature range of –30 to +80 °C further emphasizes the device’s resilience, allowing it to be stored safely in extreme conditions without risk of damage.

The interface includes three serial ports, providing ample connectivity options for integrating with other system components. These ports enable the interface to communicate with multiple devices simultaneously, facilitating data exchange and control commands across the system. The inclusion of multiple serial ports enhances the flexibility of the 8406-113, making it a central component in complex control networks.

The 8406-113 Operator Interface is designed to meet NEMA 4 standards when properly installed, ensuring that it provides adequate protection against environmental factors such as dust, water, and ice. This level of protection is crucial for maintaining the reliability and longevity of the device in harsh industrial environments. Compliance with NEMA 4 standards underscores the ruggedness of the 8406-113, making it suitable for outdoor use and in locations where it may be exposed to adverse conditions.

Woodward, the manufacturer of the 8406-113, is known for its expertise in developing high-performance control systems for the energy and process industries. The 8406-113 reflects this expertise, offering a reliable and feature-rich interface that meets the demanding requirements of modern industrial applications. The device's combination of robust construction, versatile functionality, and compliance with industry standards makes it a valuable addition to any control system.

In summary, the 8406-113 Operator Interface by Woodward is a durable and versatile device designed to facilitate precise control and monitoring in industrial applications. With its ability to handle various speed bias outputs, broad operating and storage temperature ranges, multiple serial ports, and compliance with NEMA 4 standards, the 8406-113 provides a reliable solution for managing critical system parameters. Its compact yet robust design ensures that it can be integrated into a wide range of environments, making it an essential tool for operators seeking to maintain control over complex industrial processes.
