8406-120 | Woodward Generator Controller
- Regular price
- $3,279.00
- Sale price
- $3,279.00
- Regular price
-
Couldn't load pickup availability
Do you need more quantity?
Product Description P/N: 8406-120
Description
The 8406-120 EGCP-2 Engine Generator Control Package, manufactured by Woodward, is a microprocessor-based unit suitable for non-hazardous locations. Rated for an operating temperature range of -20 to +70 °C (-40 to +105 °C for storage), this model is compatible with speed control and automatic voltage regulation for gas or diesel generator sets up to 30,000 kW. It can operate in utility paralleled or stand-alone configurations, specifically tailored for small- to medium-sized generator sets.
Technical Specifications
|
Part # |
8406-120 |
|
Category |
HMI / MMI / OIT |
|
Subcategory |
Operator Interface |
|
Dimensions |
11.1 x 14.1 x 2.7 inches |
|
Display Type |
2 Backlit LCDs |
|
Features |
Multiple Crank Repeat Set Point |
|
Input Voltage |
150–300 Vac PT Input, 9–32 Vdc |
|
Manufacturer |
Woodward |
|
Operating Temperature |
–20 to +70 °C |
|
Standards |
Vibration SV2 5–2000 Hz @ 4 G and RV1 10–2000 Hz @ 0.04 G²/Hz |
|
Storage Temperature |
–40 to +105 °C |
Information About 8406-120
The 8406-120 EGCP-2 Generator Controller, manufactured by Woodward, is a microprocessor-based unit tailored for non-hazardous locations. Operating within a temperature range of -20 to +70 °C (-40 to +105 °C for storage), it interfaces with speed control and automatic voltage regulation systems for gas or diesel generator sets, handling capacities of up to 30,000 kW. Configurable for utility paralleled or stand-alone operation, it specifically targets small- to medium-sized generator sets.

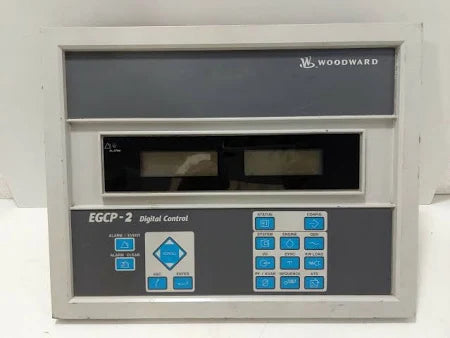

Physically, the 8406-120 measures 11.1 x 14.1 x 2.7 inches, incorporating a front panel featuring a keypad and two backlit LCD displays. This interface facilitates configuration of site-specific requirements, real-time monitoring of unit operation, and alert management. With the ability to display eight lines of status information and an option for four lines of configuration or alarm log data, users can effectively manage system parameters. Additionally, a red LED indicator on the front panel alerts users to alarm and shutdown conditions.
Manufacturer information
Woodward is a leading manufacturer of control systems and components for the aerospace and industrial sectors. With a history spanning over 150 years, Woodward specializes in providing innovative solutions for engine and energy control, serving customers worldwide.
IQElectro 2 Year Warranty
IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.Warranty Terms and Conditions
IQElectro is not an authorized distributor.
