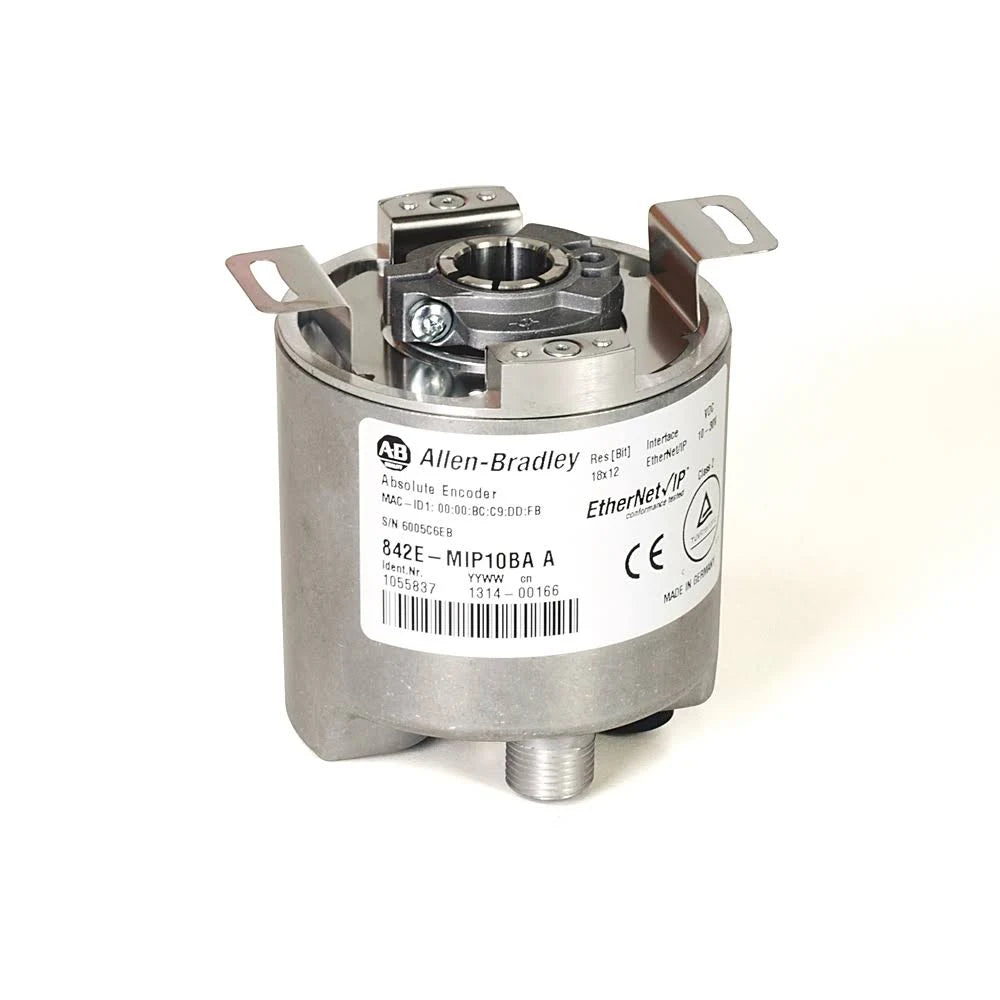

842E-MIP10BA | Allen-Bradley EtherNet/IP Multi-Turn Encoder 10-30VDC
- Regular price
- $2,249.00
- Sale price
- $2,249.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 842E-MIP10BA
Description
The Allen-Bradley 842E-MIP10BA is a high-precision, EtherNet/IP multi-turn encoder engineered for accurate position sensing and feedback in industrial automation systems. Combining absolute position data with advanced EtherNet/IP connectivity, this encoder delivers ultra-high resolution feedback across multiple turns, supporting even the most demanding motion control applications.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
| Category |
Sensors & Switches
|
| Part Number | 842E-MIP10BA |
| Subcategory | Encoder/Resolver |
| Resolution | 18 bits per revolution |
| Multi-Turn Capability | 4096 turns |
| Voltage Range | 10-30 VDC |
| Connection Type | Dual M12 Connectors |
| Output | EtherNet/IP with 1588 Time Protocol |
| Shaft Type | 1/2-inch Hollow Shaft |
| Material | Aluminum |
| Standards Compliance | CCC, CE, KC, RCM |
| Weight | 1.0100 lb |
Information About 842E-MIP10BA
The 842E-MIP10BA is designed as an absolute encoder, meaning it retains position information even in the event of power loss, ensuring accurate and reliable system restarts. It features a multi-turn capability of up to 4096 turns, enabling comprehensive position tracking for applications requiring extended range of motion feedback. With a resolution of 18 bits per revolution, it provides ultra-fine position details for precise motion control. The encoder operates with a supply voltage range of 10 to 30 VDC, supporting standard industrial control panel power systems.
Key Features:
- Absolute Multi-Turn Sensing: Supports up to 4096 turns, enabling accurate position tracking over extended motion ranges, essential for complex machinery and processes.
- Ultra-High Resolution: Offers 18 bits per revolution, delivering precise position data for advanced motion control applications.
- EtherNet/IP Connectivity: Facilitates seamless integration into industrial Ethernet networks, supporting real-time data exchange and system monitoring.
- 1588 Time Protocol: Ensures high-precision time synchronization, critical for coordinated motion control in distributed systems.
- Robust Voltage Range: Operates on 10 to 30 VDC, compatible with common industrial power supplies and control panels.
- Compact M12 Connection: Features dual M12 connectors for convenient wiring and easy integration into industrial automation systems.
- Durable Construction: Built with a rugged aluminum housing, ensuring reliable performance in harsh industrial environments.
- Hollow Shaft Design: 1/2-inch hollow shaft simplifies mechanical coupling to motor shafts or drive systems.
The 842E-MIP10BA multi-turn encoder provides reliable, high-resolution position feedback, enhancing productivity and accuracy in a wide range of industrial applications.
