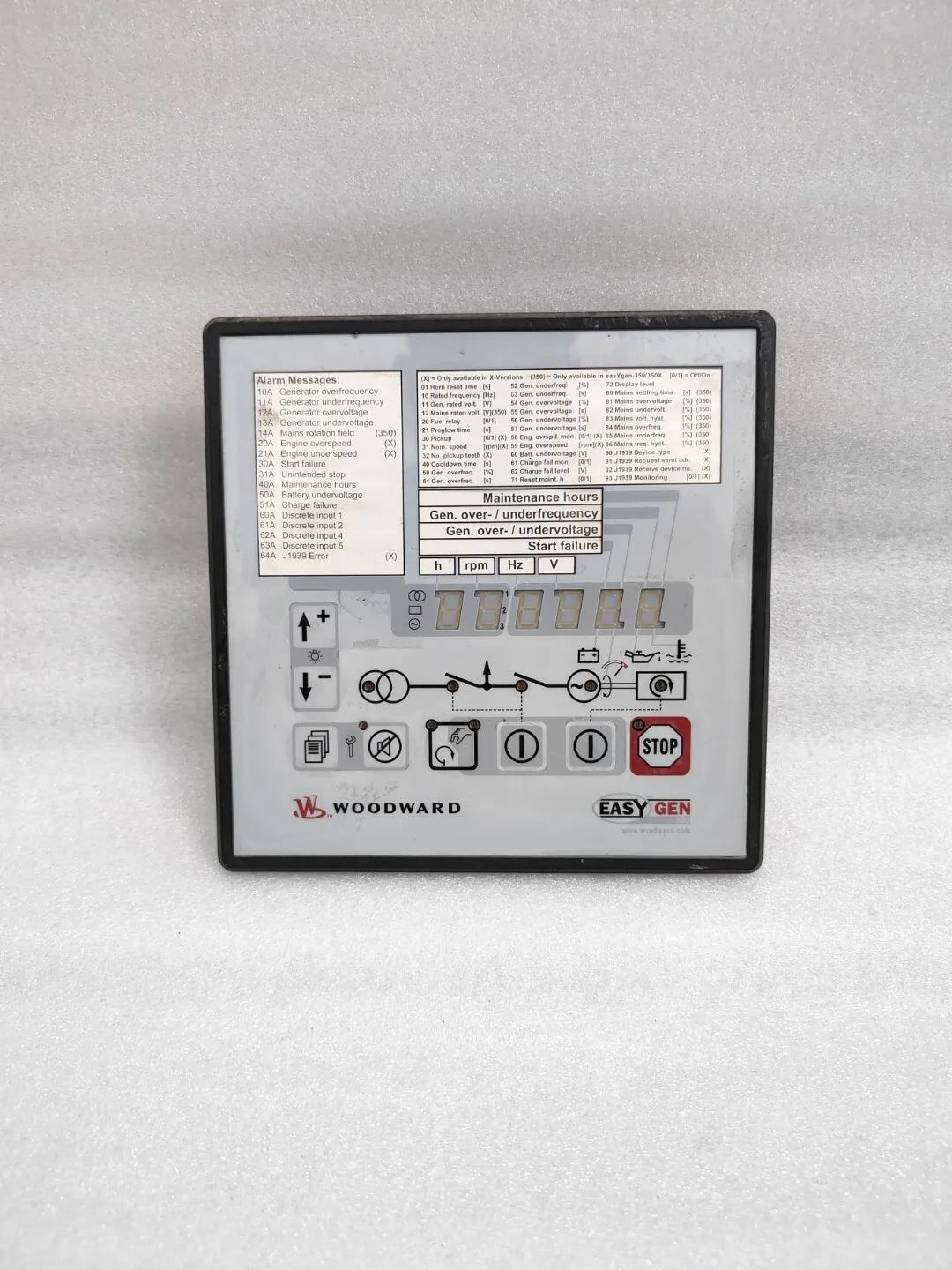

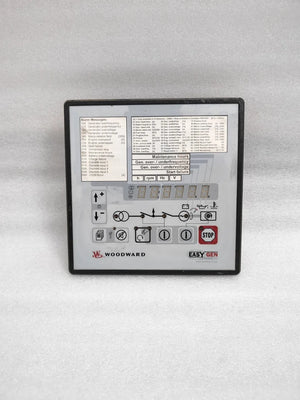

8440-1801 | Woodward Engine Metering Generator
- Regular price
- $450.00
- Sale price
- $450.00
- Regular price
-
Do you need help?
Product Description P/N: 8440-1801
Description
The 8440-1801 is a Woodward Engine Metering Generator designed for monitoring and controlling engine parameters. It provides accurate metering and data collection for engine performance analysis. This device integrates with engine management systems to ensure efficient operation and monitoring.
Technical Specifications
Part Number |
8440-1801 |
Product Name |
Woodward Engine Metering Generator |
Dimensions |
158W x 158H x 40D mm |
Endurance Vibration |
4 G, 30 Hz, 1.5 hours |
Housing |
easYpack |
Insulation Voltage |
1,500 Vdc |
Maximum Value (Vmax) |
346/600 Vac |
Temperature Standards |
IEC 60068-2-30, IEC 60068-2-2, IEC 60068-2-1 |
Weight |
Less than 450 grams |
Information About 8440-1801
The 8440-1801 is a Woodward Engine Metering Generator designed to provide precise monitoring and control of engine parameters. This device is integral to engine management systems, offering accurate metering and data collection capabilities essential for analyzing engine performance and ensuring efficient operation. The 8440-1801 is tailored to meet the rigorous demands of industrial environments, providing reliable functionality under various operational conditions.
This metering generator features compact dimensions of 158 mm in width, 158 mm in height, and 40 mm in depth, allowing for easy integration into existing engine control setups. Despite its compact size, the 8440-1801 is built to handle demanding environments, making it a versatile choice for applications requiring precise engine monitoring. Weighing less than 450 grams, the lightweight design facilitates straightforward installation and reduces the overall weight burden on the control panel or housing.
The 8440-1801 is housed in a robust easYpack enclosure, which offers both durability and protection for internal components. The easYpack housing is designed to withstand industrial conditions, providing a secure barrier against dust, moisture, and other environmental factors that could potentially impact the device's performance. The sturdy construction of the easYpack housing ensures that the metering generator remains operational in harsh conditions, maintaining accuracy and reliability throughout its lifespan.
One of the critical features of the 8440-1801 is its capability to withstand vibration. Engineered to endure vibrations up to 4 G at 30 Hz for a duration of 1.5 hours, this metering generator is ideal for use in settings where mechanical vibrations are common. This endurance ensures that the 8440-1801 can operate reliably without degradation in performance, even in environments where equipment is subjected to constant motion or vibration.
The insulation voltage rating of 1,500 Vdc highlights the 8440-1801's capacity to handle high voltage levels, providing robust electrical insulation to safeguard against voltage spikes and electrical faults. This high insulation voltage is critical for protecting both the metering generator and the connected engine management system, ensuring long-term reliability and safety. The 8440-1801's design meets the stringent requirements for electrical insulation, making it a dependable choice for various industrial applications.
With a maximum value (Vmax) of 346/600 Vac, the 8440-1801 can manage a wide range of voltage inputs, accommodating different power supply conditions. This flexibility in handling various voltage levels enhances the metering generator's applicability across different engine types and setups, making it suitable for a broad range of industrial applications. Whether used in low-voltage or high-voltage environments, the 8440-1801 ensures consistent performance and accurate metering.
The 8440-1801 adheres to multiple temperature standards, including IEC 60068-2-30, IEC 60068-2-2, and IEC 60068-2-1. These standards specify the metering generator's ability to operate effectively under varying temperature conditions, ensuring reliable performance in environments that experience temperature fluctuations. Compliance with these standards confirms that the 8440-1801 can endure both high and low-temperature extremes, providing dependable operation in a wide range of climatic conditions.
The Woodward Engine Metering Generator 8440-1801 is designed with a focus on both durability and precision. Its compliance with rigorous international standards ensures that it meets the demands of modern industrial applications, providing accurate data for engine monitoring and control. The metering generator's robust construction, high insulation voltage, and ability to withstand mechanical vibrations make it a reliable choice for use in environments where other equipment might fail.
Overall, the 8440-1801 Woodward Engine Metering Generator is a critical component for any engine management system requiring precise and reliable metering capabilities. Its compact design, combined with its high performance and adherence to stringent standards, makes it an ideal solution for monitoring engine parameters and ensuring efficient engine operation. Whether used in power generation, marine, or industrial engine applications, the 8440-1801 provides the necessary tools for accurate engine management and control, supporting optimal engine performance and longevity.
Manufacturer information
Woodward is a leading manufacturer of control systems and components for the aerospace and industrial sectors. With a history spanning over 150 years, Woodward specializes in providing innovative solutions for engine and energy control, serving customers worldwide.
