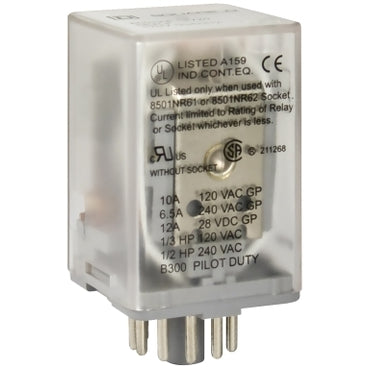

8501KP12V20 | Schneider Electric Plug-In Relay - 8 pin plug-in - 2 poles - 120VAC coil
- Regular price
- $67.00
- Sale price
- $67.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 8501KP12V20
Description
The Schneider Electric 8501KP12V20 is a versatile plug-in relay designed for industrial control applications. With an 8-pin configuration, 2 poles, and a 120VAC coil, it offers reliable and efficient electrical switching, ensuring seamless integration into diverse automation setups.
Technical Specifications
| Brand | Schneider Electric |
| Part Number | 8501KP12V20 |
| Coil Voltage | 120 VAC at 50/60 Hz |
| Contact Configuration | DPDT |
| Contact Current Rating | 10 Ampere |
| Contact Voltage Rating | 240 VAC at 50/60 Hz, 28 VDC |
| Mounting | Plug-In/Socket/Solder |
| Terminal Type | Tubular |
| Type | AC Operated |
| Poles | 2 |
| Pins | 8 |
Information About 8501KP12V20
Features / Benefits
8501 K Relays are Designed for Multipole Switching Applications at 240 Volt or Lower
These Relays have Industry Standard Wiring and Pin Arrangements which Allows for Their Use as Replacements for Many Similar Relays Without Wiring or Hardware Modifications
10 or 15 Ampere Versions
DPDT or 3PDT
Horsepower Rated
DPDT Latching Relay
AC or DC Operation
General Purpose Relays are Suited for Use as Logic Elements and Power Switching Output Devices in Material Handling, Processing, Lighting Control, HVAC/R and Other Industrial Applications
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
