Part #: 8536SAG12V02H30S Manufactured by: Schneider Electric
Regular price
$537.00
Sale price
$537.00
Regular price
4 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
8536SAG12V02H30S - NEMA Motor Starter, Type S, Nonreversing, Size 00, 9A, 2HP at 460VAC, up to 100kA SCCR, 3 Phase, 3 Pole...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: 8536SAG12V02H30S
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Schneider Electric
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: 8536SAG12V02H30S

Description / Specifications

Description

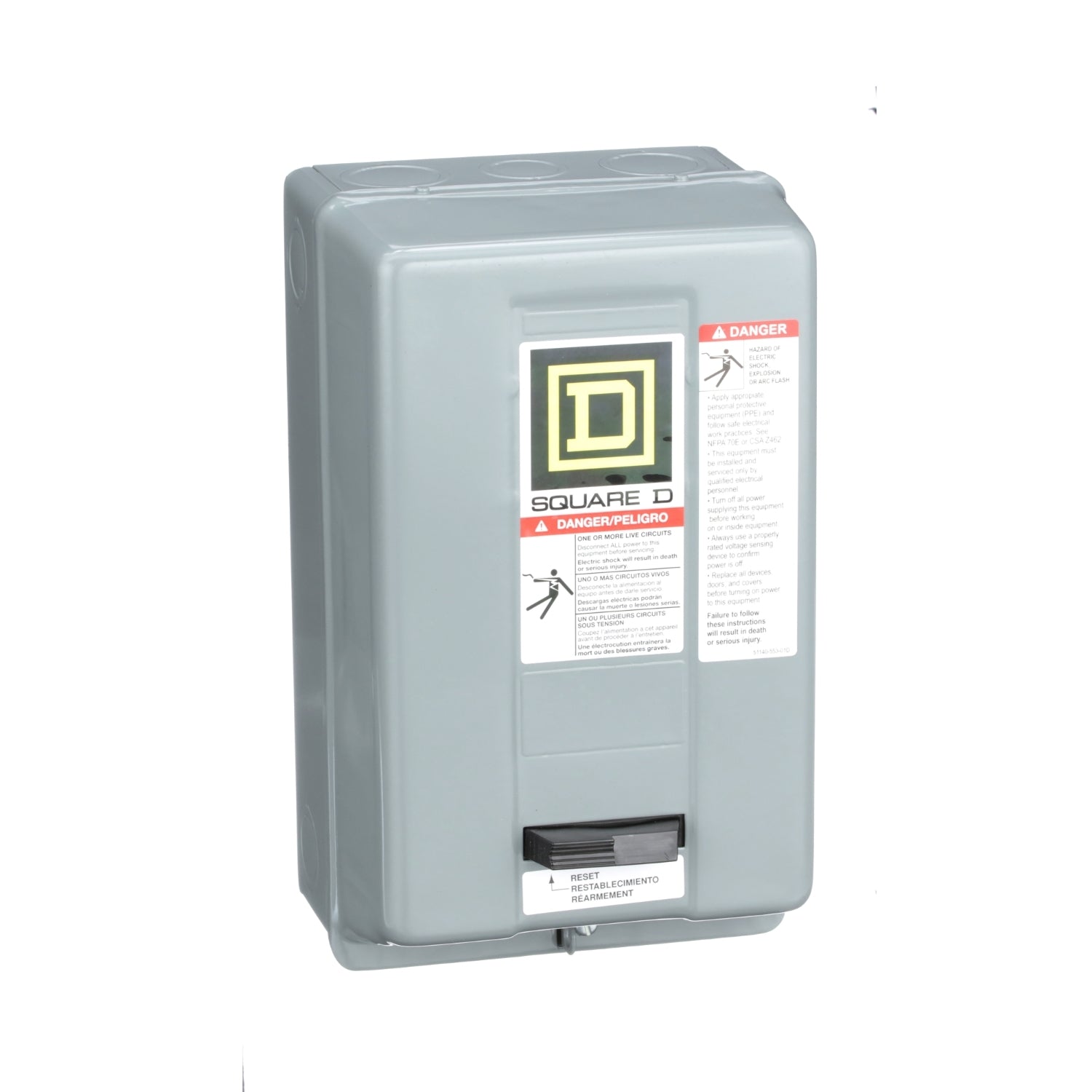

The Square D 8536SAG12V02H30S is a 3 Pole starter with a current rating of 9 Amps and a voltage rating of 600VAC. It has a coil volts of 110VAC at 50Hz, 120VAC at 60Hz. The 8536SAG12V02H30S has a surface mounting type and it is used for full voltage starting and stopping of AC squirrel cage motor applications.


Technical Specifications


Brand Schneider Electric
Part Number 8536SAG12V02H30S
Category Contactors & Starters
Subcategory Starter
Series 8536
Amperage 9A
Voltage 120V
Poles 3
Phase 3
Nema Rating Nema 1
Dimensions (HxWxD) 10 x 6.0 x 5.56




Information About 8536SAG12V02H30S

The 8536SAG12V02H30S from Schneider Electric is a robust NEMA motor starter designed for industrial applications requiring reliable motor control and protection. It belongs to the 8536 series, known for its durability and efficiency in handling three-phase motor operations.

With an amperage rating of 9A and a voltage rating of 120V, the starter is suitable for controlling moderate-sized motors in various industrial settings. It features three poles, essential for managing three-phase circuits and ensuring comprehensive electrical control.

Rated NEMA 1, the enclosure provides basic protection against dust and non-corrosive liquids, making it suitable for indoor installations where environmental conditions are controlled. The compact dimensions of 10 inches in height, 6.0 inches in width, and 5.56 inches in depth ensure space-efficient installation in electrical panels.

The 8536SAG12V02H30S motor starter is designed for ease of installation and operation, providing essential motor control functions such as starting, stopping, and overload protection. It incorporates reliable components and robust construction, ensuring long-term performance and operational reliability in industrial environments.

Overall, the 8536SAG12V02H30S motor starter from Schneider Electric combines durability, efficiency, and compliance with safety standards, making it an ideal choice for applications requiring precise motor management and dependable performance in controlled indoor environments.



Manufacturer information

Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.

IQElectro is not an authorized distributor.
QElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
