Part #: 8536SBO2V02H30S Manufactured by: Schneider Electric
Regular price
$480.00
Sale price
$480.00
Regular price
4 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The 8536SBO2V02H30S is a NEMA Type S motor starter designed for full voltage starting and stopping of AC squirrel cage mot...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: 8536SBO2V02H30S
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Schneider Electric
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: 8536SBO2V02H30S

Description / Specifications

Description

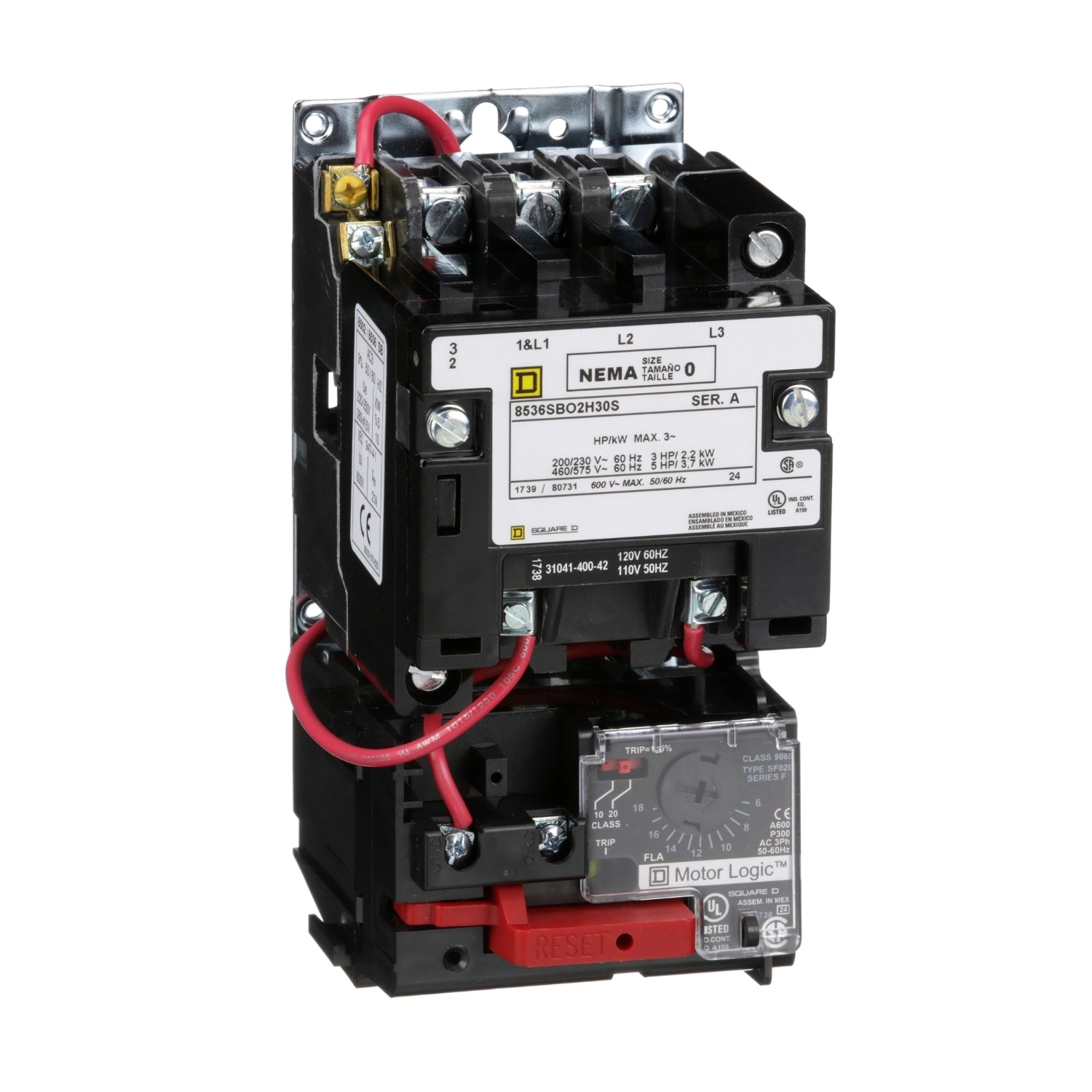

The 8536SBO2V02H30S is a NEMA motor starter of Type S, designed for non-reversing operations. It belongs to Size 0 category, accommodating up to 18A. Primarily utilized for full voltage starting and stopping of AC squirrel cage motors, it is configured for 3 phase, 3 pole operations. This motor starter is rated for 5HP at 460VAC, with a Short Circuit Current Rating (SCCR) of up to 100kA.

Equipped with Motor Logic overload relay, it features a range of 6A to 18A to detect overcurrent conditions. Operating with a 120VAC coil, it is designed to be open without an enclosure. The dimensions measure 6.77 inches in height, 3.50 inches in width, and 4.22 inches in depth.





Technical Specifications

Part #

8536SBO2V02H30S

Category

Contactors & Starters

Subcategory

Starter Product Type

Product Range

S

Starter Type

Non-reversing NEMA Size 0

Rated Current

18 A

Number of Poles

3P

Maximum Voltage Rating

600 V AC

Phase

3 phase

Type of Overload

Solid state Motor Logic class 10/20

Control Circuit Type

Separate control circuit

Control Units

No control units

Pilot Light

Without pilot light

Auxiliary Contacts

Without

Terminal Type

Screw clamp terminals

Height

6.81 in (172.96 mm)

Width

3.50 in (88.90 mm)

Depth

4.22 in (107.19 mm)



Information About 8536SBO2V02H30S

The 8536SBO2V02H30S is a NEMA motor starter of Type S, primarily utilized for full voltage starting and stopping of AC squirrel cage motors. These Type S starters are designed for various industrial applications, featuring ratings up to 810 amperes. This specific model is a 3 pole NEMA Size 0 non-reversing starter with an 18 ampere rating.

NEMA Size 0 motor starters, like the 8536SBO2V02H30S, offer 3 phase ratings of 3 HP at 200 and 230 VAC and 5 HP at 460 and 575 VAC. Equipped with a Motor Logic overload relay, it features a range of 6A to 18A to sense overcurrent conditions.

With a maximum Short Circuit Current Rating (SCCR) of 100 kA, this starter ensures robust performance when protected by an appropriate circuit breaker or fuse, meeting UL508A standards. Replaceable coils are available in a variety of voltages, providing flexibility in installation.
