8536SCO3V02H30S | Schneider Electric NEMA Motor Starter
- Regular price
- $525.00
- Sale price
- $525.00
- Regular price
-
Couldn't load pickup availability
Do you need help?

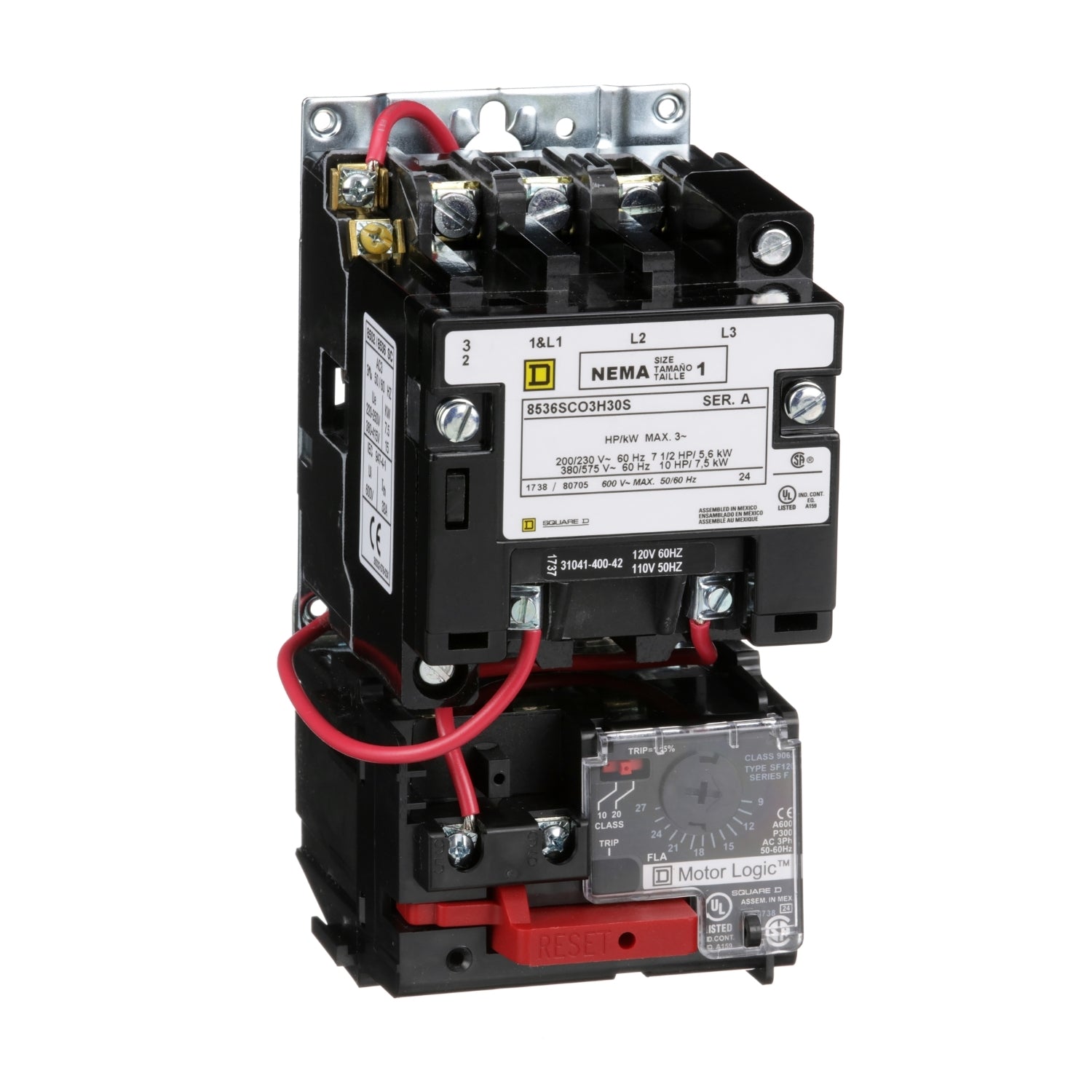

Product Description P/N: 8536SCO3V02H30S
Description
The 8536SCO3V02H30S is a Type S NEMA motor starter designed for full voltage starting and stopping of AC squirrel cage motors. This non-reversing starter is classified as Size 1 with a 27 ampere rating and is configured for 3-phase operation. It supports motor ratings up to 10 HP at 460VAC, and up to 7.5 HP at lower voltages such as 200VAC and 230VAC.
Equipped with Motor Logic overload relay technology, the starter features a range of 9A to 27A to detect and respond to overcurrent conditions effectively. It boasts a maximum Short Circuit Current Rating (SCCR) of 100 kA per UL508A, provided it is appropriately protected by a circuit breaker or fuse.
Technical Specifications
|
Part # |
8536SCO3V02H30S |
|
Category |
Contactors & Starters |
|
Subcategory |
Starter |
|
Product Type |
Motor starter |
|
Product Range |
S |
|
Starter Type |
Non reversing NEMA Size 1 |
|
Rated Current |
27 A |
|
Number of Poles |
3P |
|
Maximum Voltage Rating |
600 V AC |
|
Phase |
3 phase |
|
Type of Overload |
Solid state Motor Logic class 10/20 |
|
Coil Voltage |
110 V AC 50 Hz |
|
|
120 V AC 60 Hz |
|
Control Circuit Type |
Separate control circuit |
|
Control Units |
No control units |
|
Pilot Light |
Without pilot light |
|
Auxiliary Contacts |
Without |
|
Terminal Type |
Screw clamp terminals |
|
Height |
6.81 in (172.96 mm) |
|
Width |
3.50 in (88.90 mm) |
|
Depth |
4.22 in (107.19 mm) |
Information About 8536SCO3V02H30S
The 8536SCO3V02H30S is a Type S NEMA motor starter designed for full voltage starting and stopping of AC squirrel cage motors in industrial applications. This non-reversing starter is classified as Size 1 with a 27 ampere rating and operates on a 3-phase electrical system.
Key features of the 8536SCO3V02H30S include its capability to handle motors up to 10 horsepower (HP) at 460VAC, with corresponding ratings of 7.5 HP at 200VAC and 230VAC, and 10 HP at 575VAC. It incorporates a Motor Logic overload relay with a range from 9A to 27A, allowing it to detect and respond to overcurrent conditions effectively.
The starter boasts a maximum Short Circuit Current Rating (SCCR) of 100 kA per UL508A, provided it is properly protected by a circuit breaker or fuse. It features a 120VAC coil for separate control operations, offering flexibility in voltage configurations. Notably, the device is an open type without an enclosure, measuring 6.77 inches in height, 3.50 inches in width, and 4.22 inches in depth.
Type S motor starters like the 8536SCO3V02H30S are versatile, supporting replaceable coils across a wide range of voltages to accommodate various operational requirements. They are complemented by a diverse array of accessories available for customization and enhanced functionality.
