8536SDO1V02H30S | Schneider Electric NEMA Motor Starter
- Regular price
- $1,050.00
- Sale price
- $1,050.00
- Regular price
-
Couldn't load pickup availability
Do you need help?

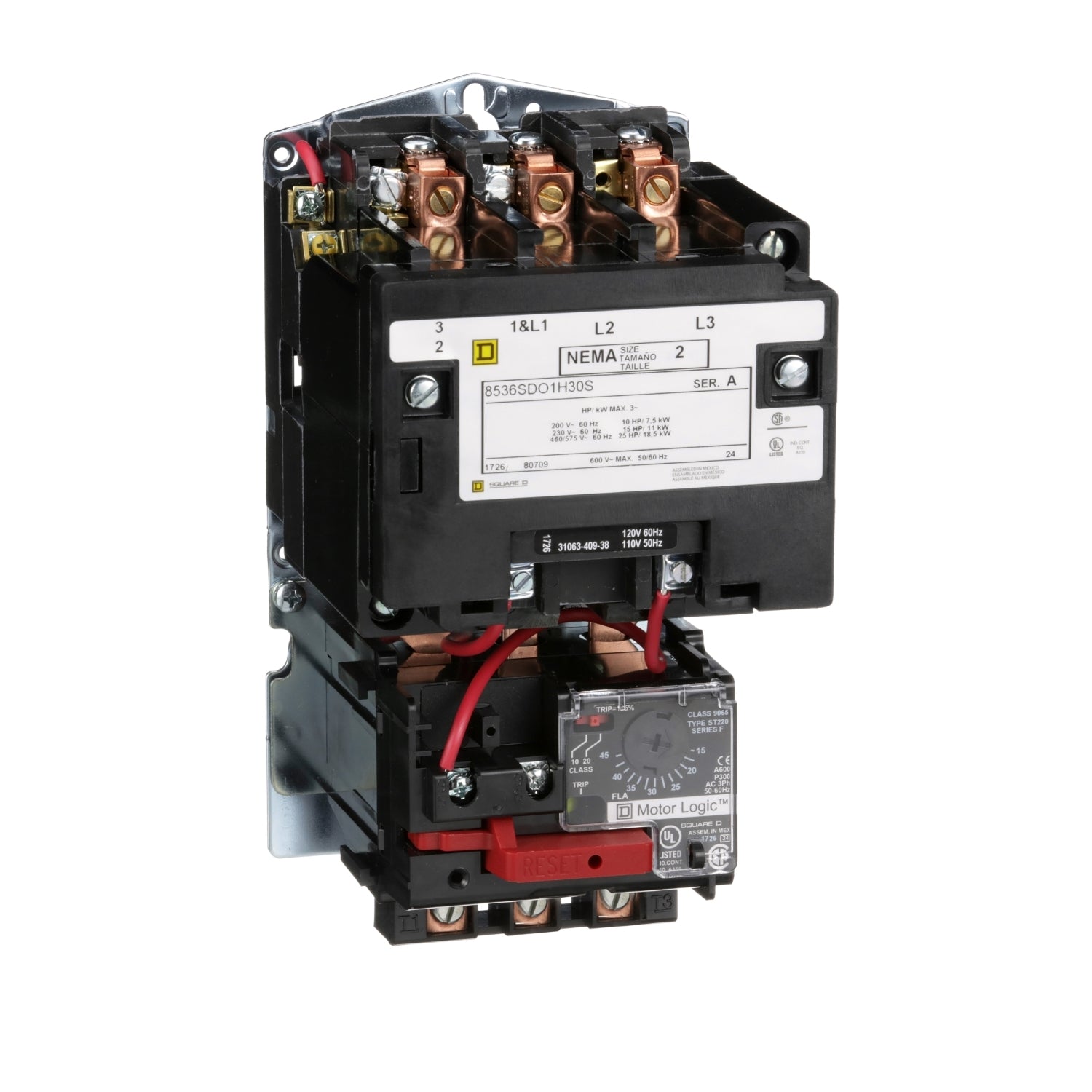

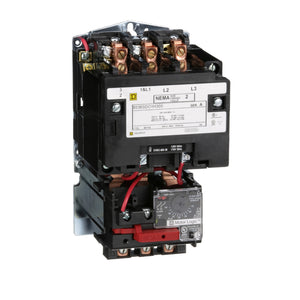

Product Description P/N: 8536SDO1V02H30S
Description
The 8536SDO1V02H30S is a NEMA Motor Starter, specifically a Type S, Nonreversing model, Size 2, with a 45A rating. It is designed for full voltage starting and stopping of AC squirrel cage motors. This 3-pole NEMA starter is suitable for 3-phase systems and features Motor Logic overload relay technology with a range of 15A to 45A to detect overcurrent conditions.
Technical Specifications
|
Part # |
8536SDO1V02H30S |
|
Category |
Contactors & Starters |
|
Subcategory |
Starter Product Type |
|
|
Motor Starter |
|
Product Range |
S |
|
Starter Type |
Non-Reversing NEMA Size 2 |
|
Rated Current |
45 A |
|
Number of Poles |
3P |
|
Maximum Voltage Rating |
600 V AC |
|
Phase |
3 Phase |
|
Type of Overload |
Solid State Motor Logic Class 10/20 |
|
Control Circuit Type |
Separate Control Circuit |
|
Control Units |
No Control Units |
|
Pilot Light |
Without Pilot Light |
|
Auxiliary Contacts |
Without |
|
Terminal Type |
Screw Clamp Terminals |
|
Height |
7.81 in (198.37 mm) |
|
Width |
4.31 in (109.47 mm) |
|
Depth |
4.94 in (125.48 mm) |
Information About 8536SDO1V02H30S
The 8536SDO1V02H30S is a NEMA Motor Starter, specifically a Type S, Nonreversing, Size 2 model, with a rated current of 45A. It is primarily employed for full voltage starting and stopping of AC squirrel cage motors, with Type S starters capable of accommodating ratings up to 810 amperes. This particular starter is configured as a 3-pole NEMA Size 2 non-reversing variant.
Featuring a Motor Logic overload relay with a range of 15A to 45A, this NEMA starter is equipped to sense overcurrent conditions. It offers 3-phase ratings of 10 HP at 200 VAC, 15 HP at 230 VAC, and 25 HP at 460 and 575 VAC. Additionally, it boasts a maximum Short Circuit Current Rating (SCCR) of up to 100kA per UL508A, provided it is protected by an appropriate circuit breaker or fuse.
Type S motor starters come with replaceable coils available in various voltages. The 8536SDO1V02H30S is equipped with a 110/120 VAC 50/60 Hz operating coil wired for separate control. This NEMA starter is an open device without an enclosure and measures 7.81 inches in height, 4.31 inches in width, and 4.94 inches in depth.
