Part #: 8536SDO1V02S Manufactured by: Schneider Electric
Regular price
$779.00
Sale price
$779.00
Regular price
1 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The 8536SDO1V02S is a Type S NEMA motor starter designed for full voltage starting and stopping of AC squirrel cage motors...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: 8536SDO1V02S
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Schneider Electric
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
8536SDO1V02S | Schneider Electric NEMA Motor Starter, Type S
    8536SDO1V02S | Schneider Electric NEMA Motor Starter, Type S
8536SDO1V02S | Schneider Electric NEMA Motor Starter, Type S

Product Description P/N: 8536SDO1V02S

Description / Specifications

Description

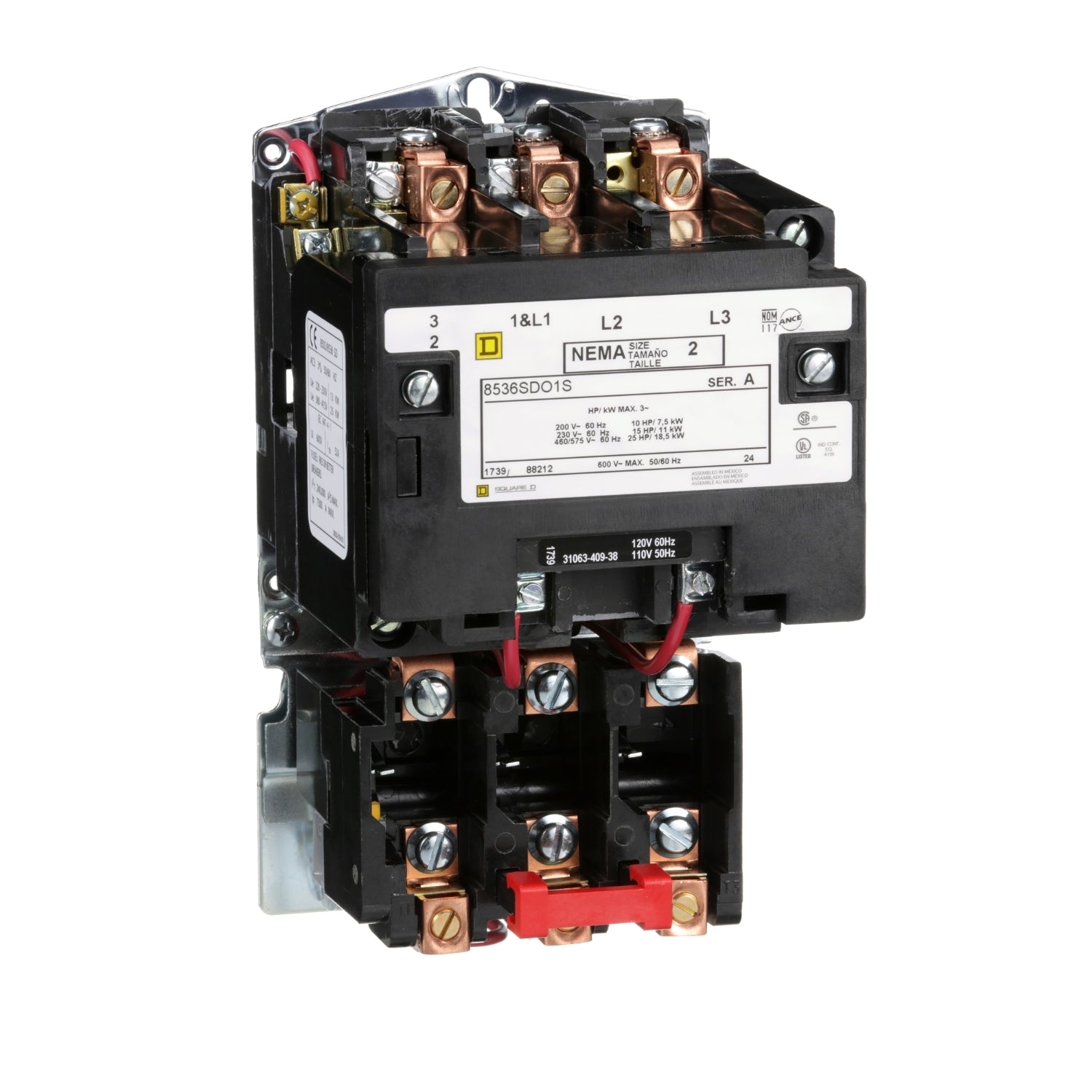

The 8536SDO1V02S is a Type S NEMA motor starter designed for full voltage starting and stopping of AC squirrel cage motors. This NEMA Size 2 non-reversing starter has a 45 ampere rating and is equipped with a melting alloy type overload relay utilizing Type B thermal units to detect overcurrent conditions. With ratings up to 810 amperes, this starter supports 3 phase motors with capacities of 10 HP at 200 VAC, 15 HP at 230 VAC, and 25 HP at 460 and 575 VAC.

Operating with a 110/120 VAC 50/60 Hz operating coil wired for separate control, this starter is an open device without an enclosure, measuring 7.81 inches tall, 4.31 inches wide, and 4.94 inches deep. It offers a maximum Short Circuit Current Rating (SCCR) of 5 kA per UL508A when appropriately protected by a circuit breaker or fuse.



Technical Specifications

Part #

8536SDO1V02S

Category

Contactors & Starters

Subcategory

Starter

Design

Type S Starter

Rated Current

45 A

Number of Poles

3P

Maximum Voltage Rating

600 V AC

Phase

3 phase

Type of Overload

Melting alloy

Horsepower Rating

10 HP 200 V AC

Control Circuit Type

Separate control circuit

Control Units

No control units

Pilot Light

Without pilot light

Auxiliary Contacts

Without

Terminal Type

Screw clamp terminals

Height

7.81 in (198.37 mm)

Width

4.31 in (109.47 mm)

Depth

4.94 in (125.48 mm)



Information About 8536SDO1V02S

The 8536SDO1V02S is a Type S NEMA motor starter primarily used for full voltage starting and stopping of AC squirrel cage motors. Type S motor starters are capable of handling currents up to 810 amperes.

This particular starter is a 3-pole NEMA Size 2 non-reversing starter with a rating of 45 amperes. It features 3-phase ratings of 10 HP at 200 VAC, 15 HP at 230 VAC, and 25 HP at 460 and 575 VAC.

Equipped with a melting alloy type overload relay utilizing Type B thermal units, this non-reversing NEMA motor starter is adept at sensing overcurrent conditions. It boasts a maximum Short Circuit Current Rating (SCCR) of 5 kA per UL508A when protected by an appropriate circuit breaker or fuse.

Type S motor starters come with replaceable coils available in various voltages. The 8536SDO1V02S, for instance, features a 110/120 VAC 50/60 Hz operating coil wired for separate control.



Manufacturer information

Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.

IQElectro is not an authorized distributor.
QElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
