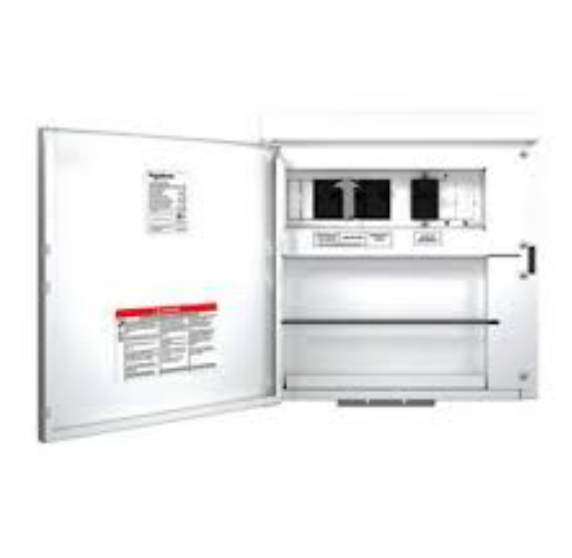

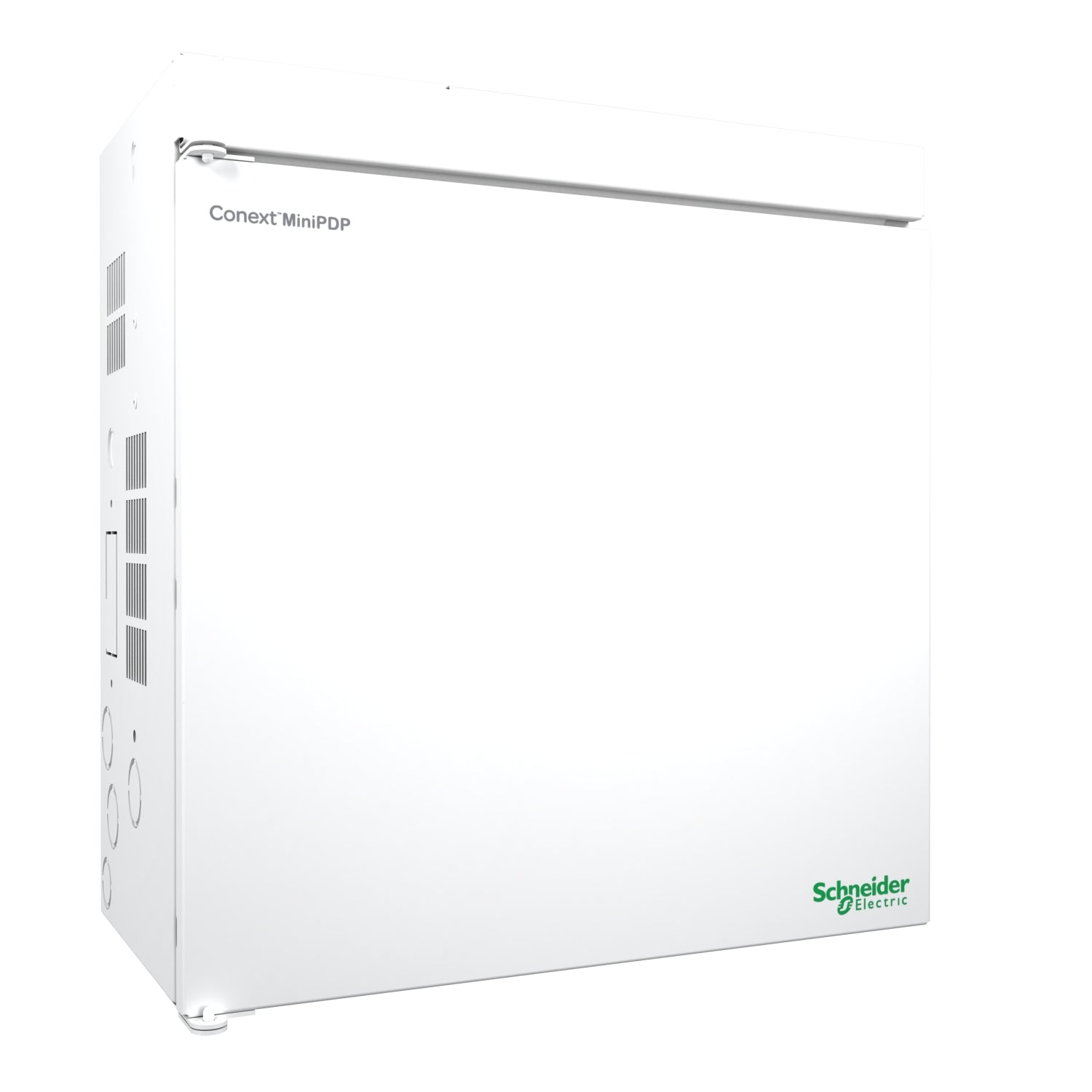

865-1013-01 | Schneider Electric Conext XW Mini Power Distribution Panel for Solar Systems
- Regular price
- $427.00
- Sale price
- $427.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 865-1013-01
Description
The Schneider Electric 865-1013-01 is a compact mini power distribution panel designed to manage DC and AC power connections in off-grid and backup solar energy systems. Built for compatibility with Conext XW series inverters, the Schneider Electric 865-1013-01 simplifies system integration by providing a pre-wired solution for batteries, charge controllers, and generators.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Solar Power Equipment |
| Part Number | 865-1013-01 |
| Subcategory | Power Distribution Panel |
| Product Series | Conext XW |
| Panel Type | Mini Power Distribution Panel |
| Supported Inverters | Conext XW / XW+ (Single Inverter) |
| System Voltage | 120/240 VAC |
| Phase Configuration | Single Phase / Split Phase |
| DC Battery Breaker | 250 A Integrated |
| Wiring Configuration | Factory Wired |
| Mounting Orientation | Field-Reversible |
| Conduit Entry Points | Top, Bottom, Sides, Rear |
| Application | Off-Grid and Backup Power Systems |
| Country of Origin | India |
| Weight | 34.67 lb |
Information About 865-1013-01

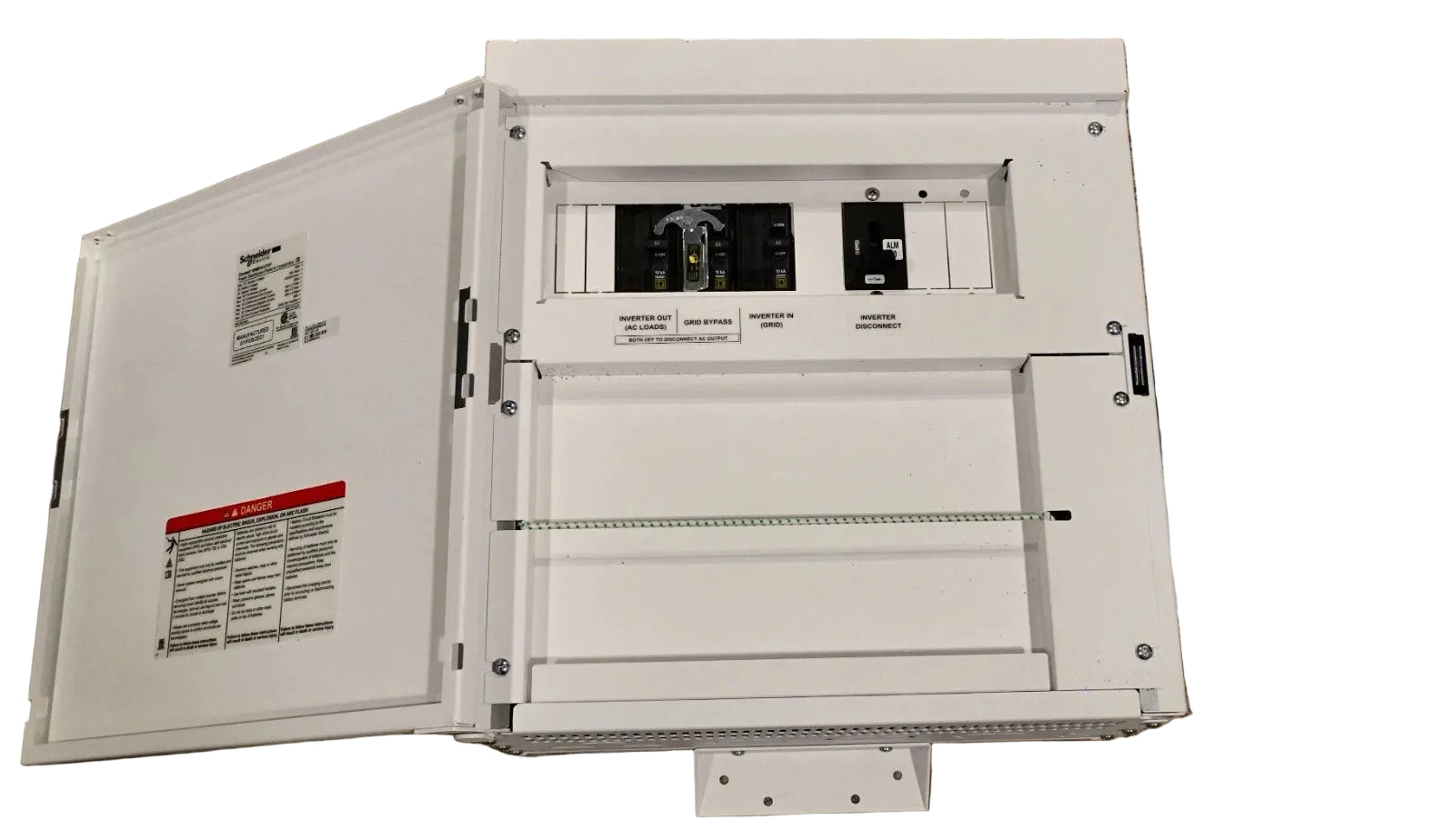

The 865-1013-01 is part of the Schneider Electric Conext XW Mini Power Distribution Panel lineup, engineered to streamline renewable energy installations. It is factory-wired and labeled to support a single Conext XW or XW+ inverter/charger along with Conext MPPT solar charge controllers and a battery bank. The panel supports single-phase and split-phase configurations and includes an integrated 250A DC battery breaker for primary system protection. Designed with flexible conduit entry points and a field-reversible door, it allows adaptable mounting and service access in residential and light commercial energy systems.
Key Features:
- Pre-Wired Distribution Panel: Reduces installation time by providing factory-installed breakers, bus bars, and wiring.
- XW Series Compatibility: Designed specifically for use with Conext XW and XW+ inverter/charger systems.
- Integrated 250A DC Breaker: Provides centralized battery disconnect and overcurrent protection.
- AC and DC Power Management: Supports coordinated distribution to inverter, battery, charge controllers, and generator.
- Flexible System Configuration: Accommodates single-phase and split-phase system designs.
- Service-Friendly Design: Field-reversible door and breaker layout enable easier inspection and maintenance.
- Multiple Conduit Entry Points: Allows adaptable installation from top, bottom, sides, or rear.
The 865-1013-01 delivers the reliability and precision required for safe and organized power distribution in off-grid and backup solar energy systems.
