868STRA-AQ | Edwards Signaling 24V Surface Mount Horn/Strobe Amber 90 dB 90 CD UL Rated
- Regular price
- $705.00
- Sale price
- $705.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 868STRA-AQ
Description

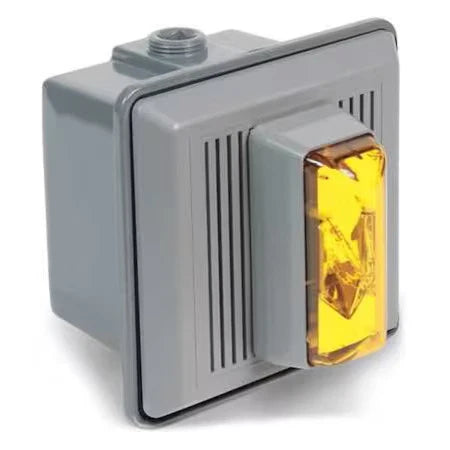

The Edwards Signaling 868STRA-AQ Surface Mount Horn/Strobe is a combination audible and visual signaling device designed for industrial and outdoor applications. Operating on 24 VAC/VDC, it provides a 90 dB horn output and a 90 candela amber Xenon strobe, delivering reliable notification for safety and warning systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Edwards Signaling |
| Category | Audible and Visual Signaling Devices |
| Part Number | 868STRA-AQ |
| Subcategory | Horn/Strobe Unit |
| Model | 860 |
| Type | Surface Mount Horn/Strobe |
| Operating Voltage | 24 VAC/VDC |
| Current Draw (24 VAC) | 0.37 A (strobe), 0.072 A (horn) |
| Current Draw (24 VDC) | 0.39 A (strobe), 0.022 A (horn) |
| Sound Intensity | 90 dB @ 10 ft |
| Light Intensity | 90 candela |
| Flash Rate | 60 flashes per minute |
| Lamp Type | Xenon |
| Lens Color | Amber |
| Housing Material | Gray engineered thermoplastic |
| Mounting Type | Surface mount, 3-13/32 in deep square box |
| Operating Temperature | -31°F to 150°F (-35°C to 66°C) |
| Approvals | UL 1638 (strobe), UL 464 (horn) |
| Application | Outdoor warning and industrial signaling |
| Enclosure Rating | Weather-resistant, suitable for outdoor use |
| Dimensions | 5.5 in W × 5.5 in H × 3.4 in D |
| Weight | 2.1 lb (approx.) |
Information About 868STRA-AQ
The 868STRA-AQ is part of the Edwards 860 Series of durable, high-performance horn/strobe units designed for both indoor and outdoor environments. It features a corrosion-resistant gray engineered thermoplastic housing and an amber Xenon strobe lens for high visibility. The strobe and horn functions can operate independently, offering installation flexibility for various signaling requirements. UL 1638 and UL 464 certified, this model is suitable for industrial facilities, warehouses, and outdoor safety systems exposed to temperature extremes.
Key Features:
- Dual Function Operation: Integrated horn and Xenon strobe can function independently for flexible use.
- High Visibility Strobe: Amber lens delivers 90 candela light output with a 60 FPM flash rate.
- Audible Alert: Provides 90 dB sound intensity at 10 feet for effective notification.
- Rugged Construction: Gray engineered thermoplastic housing resists corrosion and harsh environments.
- Wide Voltage Range: Operates on 24 VAC/VDC for system compatibility.
- Low Power Consumption: Efficient operation with minimal current draw on both horn and strobe circuits.
- Wide Temperature Range: Performs reliably from -31°F to 150°F ambient temperature.
- UL Certified: Meets UL 1638 (strobe) and UL 464 (horn) standards for safety and reliability.
The 868STRA-AQ delivers the reliability and precision required for industrial signaling and outdoor alert applications.
Description
The Edwards Signaling 868STRA-AQ Surface Mount Horn/Strobe is a combination audible and visual signaling device designed for industrial and outdoor applications. Operating on 24 VAC/VDC, it provides a 90 dB horn output and a 90 candela amber Xenon strobe, delivering reliable notification for safety and warning systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Edwards Signaling |
| Category | Audible and Visual Signaling Devices |
| Part Number | 868STRA-AQ |
| Subcategory | Horn/Strobe Unit |
| Model | 860 |
| Type | Surface Mount Horn/Strobe |
| Operating Voltage | 24 VAC/VDC |
| Current Draw (24 VAC) | 0.37 A (strobe), 0.072 A (horn) |
| Current Draw (24 VDC) | 0.39 A (strobe), 0.022 A (horn) |
| Sound Intensity | 90 dB @ 10 ft |
| Light Intensity | 90 candela |
| Flash Rate | 60 flashes per minute |
| Lamp Type | Xenon |
| Lens Color | Amber |
| Housing Material | Gray engineered thermoplastic |
| Mounting Type | Surface mount, 3-13/32 in deep square box |
| Operating Temperature | -31°F to 150°F (-35°C to 66°C) |
| Approvals | UL 1638 (strobe), UL 464 (horn) |
| Application | Outdoor warning and industrial signaling |
| Enclosure Rating | Weather-resistant, suitable for outdoor use |
| Dimensions | 5.5 in W × 5.5 in H × 3.4 in D |
| Weight | 2.1 lb (approx.) |
Information About 868STRA-AQ
The 868STRA-AQ is part of the Edwards 860 Series of durable, high-performance horn/strobe units designed for both indoor and outdoor environments. It features a corrosion-resistant gray engineered thermoplastic housing and an amber Xenon strobe lens for high visibility. The strobe and horn functions can operate independently, offering installation flexibility for various signaling requirements. UL 1638 and UL 464 certified, this model is suitable for industrial facilities, warehouses, and outdoor safety systems exposed to temperature extremes.
Key Features:
- Dual Function Operation: Integrated horn and Xenon strobe can function independently for flexible use.
- High Visibility Strobe: Amber lens delivers 90 candela light output with a 60 FPM flash rate.
- Audible Alert: Provides 90 dB sound intensity at 10 feet for effective notification.
- Rugged Construction: Gray engineered thermoplastic housing resists corrosion and harsh environments.
- Wide Voltage Range: Operates on 24 VAC/VDC for system compatibility.
- Low Power Consumption: Efficient operation with minimal current draw on both horn and strobe circuits.
- Wide Temperature Range: Performs reliably from -31°F to 150°F ambient temperature.
- UL Certified: Meets UL 1638 (strobe) and UL 464 (horn) standards for safety and reliability.
The 868STRA-AQ delivers the reliability and precision required for industrial signaling and outdoor alert applications.
