868STRR-AQ | Edwards AdaptaBeacon Horn Strobe, 24V AC/DC, Red Lens, 90 dB, Surface Mount
- Regular price
- $682.00
- Sale price
- $682.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: 868STRR-AQ
Description

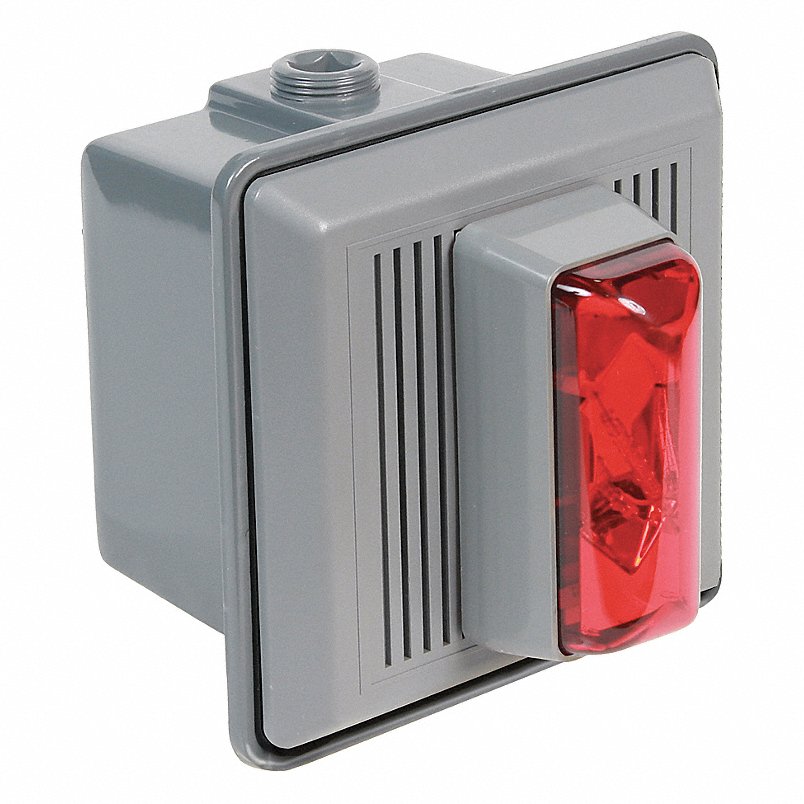

The Edwards™ 868STRR-AQ is a horn-strobe signaling appliance from the AdaptaBeacon 860 Series, designed for high-visibility and high-decibel alerting in industrial and safety applications. It features a gray thermoplastic housing, a red xenon strobe lens, and produces a 90 dB continuous horn output at 10 feet with a 60 FPM strobe flash rate. This unit operates on 24 VAC/VDC and is built for rugged surface mounting in demanding indoor or outdoor environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Edwards |
| Category | Fire Safety |
| Part Number | 868STRR-AQ |
| Subcategory | Horn Strobe |
| Product Type | Horn and Strobe Unit |
| Housing Material | Thermoplastic (Gray) |
| Lens Color | Red |
| Mounting Style | Surface mount with supplied back box |
| Voltage | 24 VAC or 24 VDC |
| Current Draw | 462 mA @ 24 VAC / 412 mA @ 24 VDC |
| Sound Output | 100 dB @ 1 m / 90 dB @ 10 ft |
| Sound Pattern | Continuous horn |
| Light Source | Xenon strobe |
| Light Output | 21 CP |
| Flash Rate | 60 flashes per minute |
| Operating Temp Range | -31 °F to 150 °F (-35 °C to 66 °C) |
| Humidity Rating | Up to 95% RH non-condensing |
| Standards | UL 1638 (Strobe), UL 464 (Horn) |
| Enclosure Size | 5-59/64 in. square × 3-13/32 in. deep |
| Application | Indoor/Outdoor signaling, alarm, process control |
| Weight | ~2.5 lbs |
Information About 868STRR-AQ
The 868STRR-AQ is part of the Edwards 868STR AdaptaBeacon series, engineered to provide both visual and audible signaling in one device. Its strobe and horn can be operated independently, allowing flexibility in alarm and process control applications. Designed with a corrosion-resistant gray thermoplastic housing, it is suitable for harsh environments such as manufacturing sites, warehouses, or process plants. The xenon strobe provides 21 candlepower output at a fixed 60 flashes per minute, ensuring reliable visibility, while the horn produces a loud, continuous 100 dB tone at 1 meter. The unit mounts to a supplied weatherproof surface back box, ensuring durability and ease of installation.
Key Features:
- Dual Function Appliance: Combines xenon strobe and horn in one unit for audible/visual signaling.
- High Sound Output: 100 dB at 1 meter / 90 dB at 10 feet continuous tone.
- Xenon Strobe Light: Produces 21 CP intensity with 60 flashes per minute.
- Independent Operation: Horn and strobe circuits may be operated together or separately.
- Durable Housing: Gray engineered thermoplastic enclosure resists corrosion and impacts.
- Outdoor Rated: Suitable for harsh environments with wide operating temperature range.
- Low Current Draw: Efficient design with 412 mA @ 24 VDC and 462 mA @ 24 VAC.
- UL Listed: Meets UL 1638 (strobe) and UL 464 (horn) standards for signaling appliances.
- Easy Mounting: Supplied surface-mount weatherproof back box simplifies installation.
- Fixed Brightness & Tone: Provides consistent 21 CP flash and continuous horn tone.
- Reliable Power Options: Operates on 24 VDC or 24 VAC for versatile installations.
The 868STRR-AQ delivers reliable, high-output audio/visual signaling for industrial, safety, and alarm system applications.
