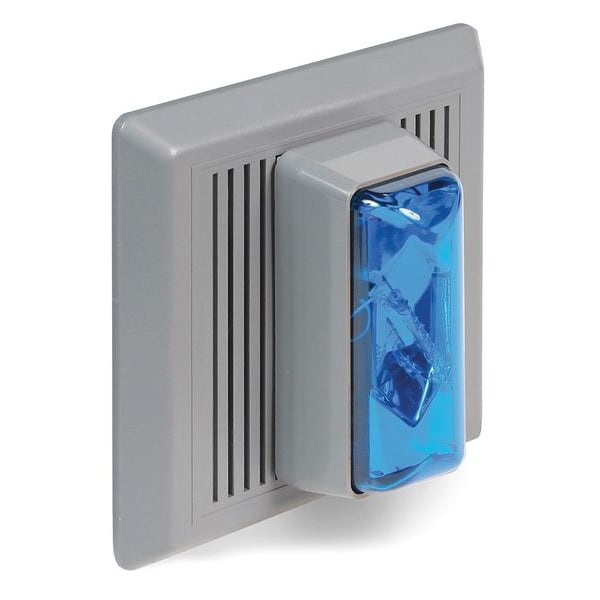

869STRB-AQ | Edwards Signaling 24V Blue Flush Mount Horn/Strobe 90dB 20cd UL
- Regular price
- $574.00
- Sale price
- $574.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 869STRB-AQ
Description
The Edwards Signaling 869STRB-AQ Indoor Flush Mount Electronic Horn/Strobe is a 24 VAC/VDC audible and visual signaling device featuring a blue Xenon strobe light and a high-decibel electronic horn. Designed for indoor flush-mount installations, it delivers dependable visual and audible alerts for emergency, warning, and status indication applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Edwards Signaling |
| Category | Fire Alarm and Safety Devices |
| Part Number | 869STRB-AQ |
| Subcategory | Strobe/Flashing Light Unit |
| Series | 860 Series |
| Type | Strobe Light with Horn |
| Mounting Type | Flush mount (4-inch square box) |
| Application | Indoor |
| Housing Material | Gray engineered thermoplastic |
| Lens Color | Blue |
| Sound Intensity | 90 dB @ 10 ft |
| Operating Voltage | 24 VAC / 24 VDC |
| Operating Current (24 VAC) | 0.37 A (strobe), 0.072 A (horn) |
| Operating Current (24 VDC) | 0.39 A (strobe), 0.022 A (horn) |
| Lamp Type | Xenon flash tube |
| Light Intensity | 20 candela (cd) |
| Flash Rate | 60 flashes per minute (FPM) |
| Temperature Rating (Nominal) | 86°F (30°C) |
| Ambient Operating Temperature | 32°F to 120°F (0°C to 49°C) |
| Approval Standards | UL 1638 (Strobe), UL 464 (Horn) |
| Sound Type | Continuous electronic tone |
| Dimensions (W × H) | 5.5 in × 5.5 in |
| Weight | Approx. 1 lb (0.45 kg) |
| Wiring | Separate inputs for horn and strobe |
| Color Finish | Gray housing with blue lens |
| Country of Origin | USA |
Information About 869STRB-AQ
The 869STRB-AQ is part of Edwards Signaling’s 860 Series of combination horn/strobe units, built for reliable operation in security, alert, and evacuation systems. Constructed with a gray engineered thermoplastic housing, this device features a blue lens and a 90 dB horn output at 10 feet, providing both audible and visual signaling in one compact unit. The Xenon strobe delivers 20 candela light intensity at a 60 flashes-per-minute (FPM) rate and operates independently from the horn if required. Approved under UL 1638 (Strobe) and UL 464 (Horn) standards, the unit is optimized for indoor use and mounts to a standard 4-inch flush box, ensuring simple installation and long-term durability.
Key Features:
- Dual Function Operation: Independent horn and strobe circuits for flexible signaling configurations.
- High-Visibility Alert: 20 cd blue Xenon strobe rated at 60 FPM for clear visual indication.
- Audible Signal Output: 90 dB horn at 10 feet ensures strong audible coverage.
- Wide Voltage Range: Operates on both 24 VAC and 24 VDC supply.
- Low Current Draw: Efficient operation at 0.37 A (strobe) and 0.072 A (horn) at 24 VAC.
- Flush Mount Design: Fits standard 4-inch electrical square box for neat, secure installation.
- Rugged Housing: Made from gray engineered thermoplastic for impact and heat resistance.
- UL Listed: Complies with UL 1638 and UL 464 standards for signaling devices.
The 869STRB-AQ delivers the reliability and precision required for emergency signaling and visual notification in indoor alerting systems.
