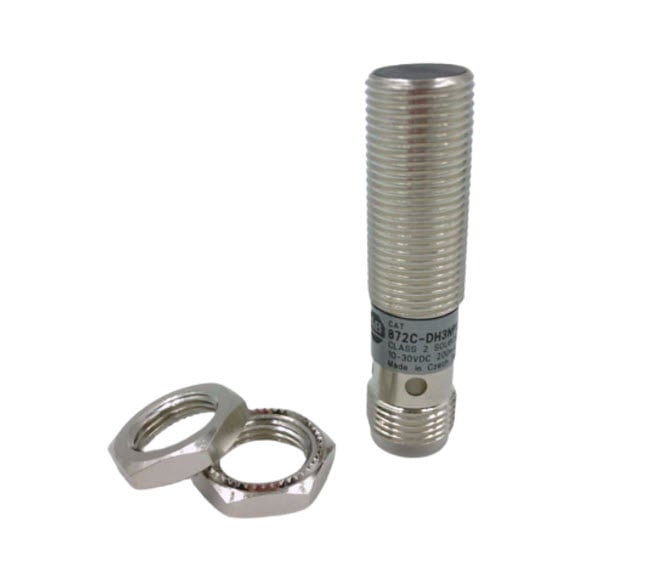

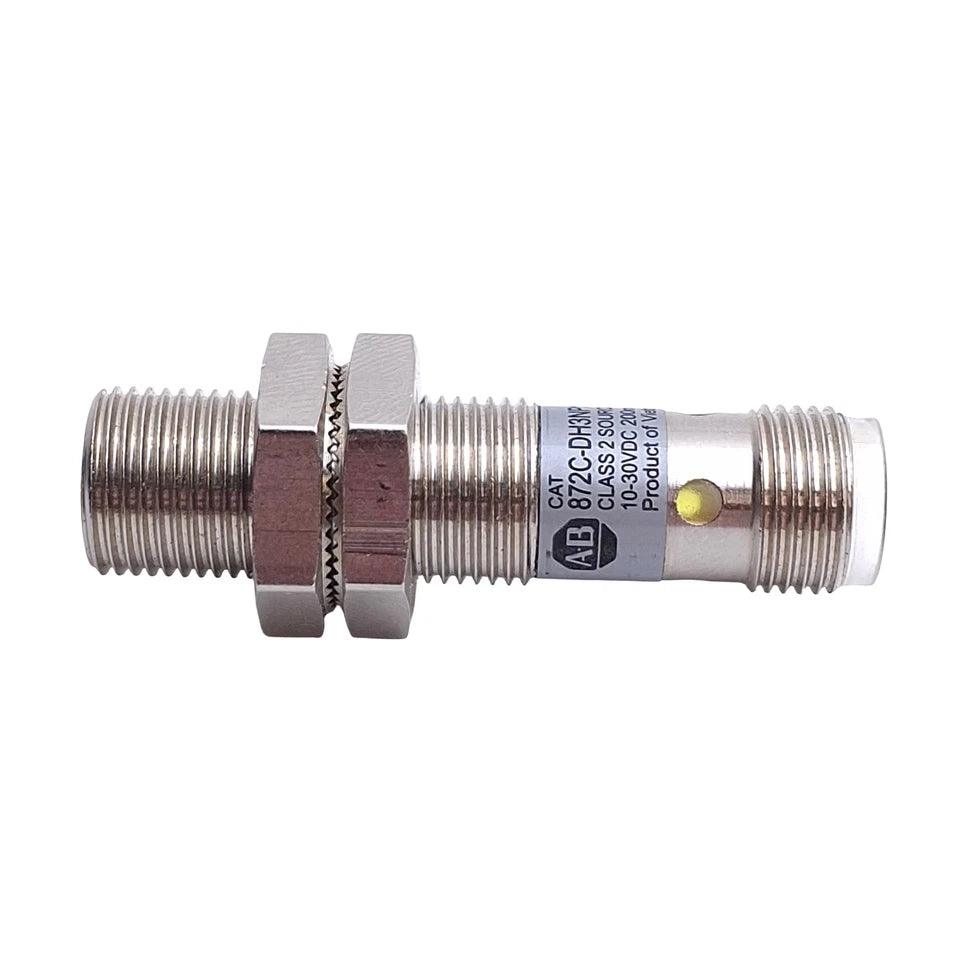

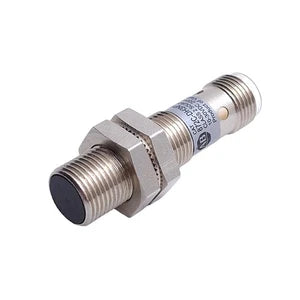

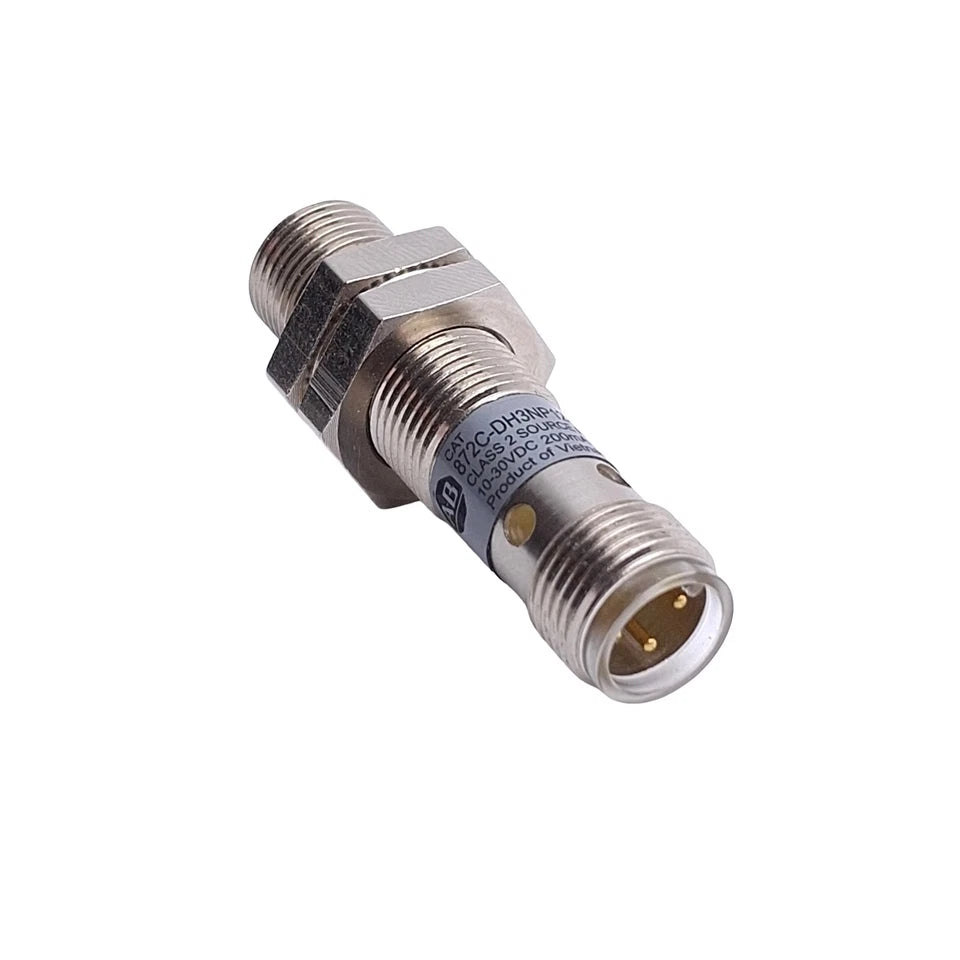

872C-DH3NP12-D4 | Allen-Bradley Proximity Switch
- Regular price
- $77.00
- Sale price
- $77.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 872C-DH3NP12-D4
Description
The Allen-Bradley 872C-DH3NP12-D4 is an inductive proximity sensor designed to detect metal objects without physical contact.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
| Category |
Sensors & Switches
|
| Part Number | 872C-DH3NP12-D4 |
| Subcatecory |
Sensors & Switches
|
|
Connection Type
|
Micro Quick-Disconnect (DC) |
| Output Configuration | N.O., Source (PNP) |
| Voltage Rating | 10 - 30V DC |
|
Proximity Sensor Type
|
3-Wire DC Short Barrel |
|
Nominal Sensing Distance
|
3mm |
|
Shielding
|
Shielded |
|
Barrel Diameter
|
12mmAvailable in 3 and 4mm Sensing Distances |
|
Connection Media
|
1DC Micro(M12), Female, Straight, 4-pin PVC, Yellow, Unshielded, 5 m889D-F4AC-5 |
|
Weight
|
0.04 lbs |
Information About 872C-DH3NP12-D4
The Allen-Bradley 872C-DH3NP12-D4 is a compact, high-performance inductive proximity sensor from the WorldProx™ family, designed for detecting metal objects in industrial automation environments. It provides reliable, non-contact object detection with a rugged, short-body construction suitable for challenging conditions.
Key Features:
-
Type: Inductive Proximity Sensor
-
Sensing Distance: 3 mm (shielded)
-
Output Type: PNP (Sourcing), Normally Open (NO)
-
Operating Voltage: 10–30 V DC
-
Switching Frequency: Up to 1300 Hz
-
Housing Material: Nickel-plated brass
-
Body Style: 12 mm cylindrical, short barrel (approx. 48.3 mm length)
-

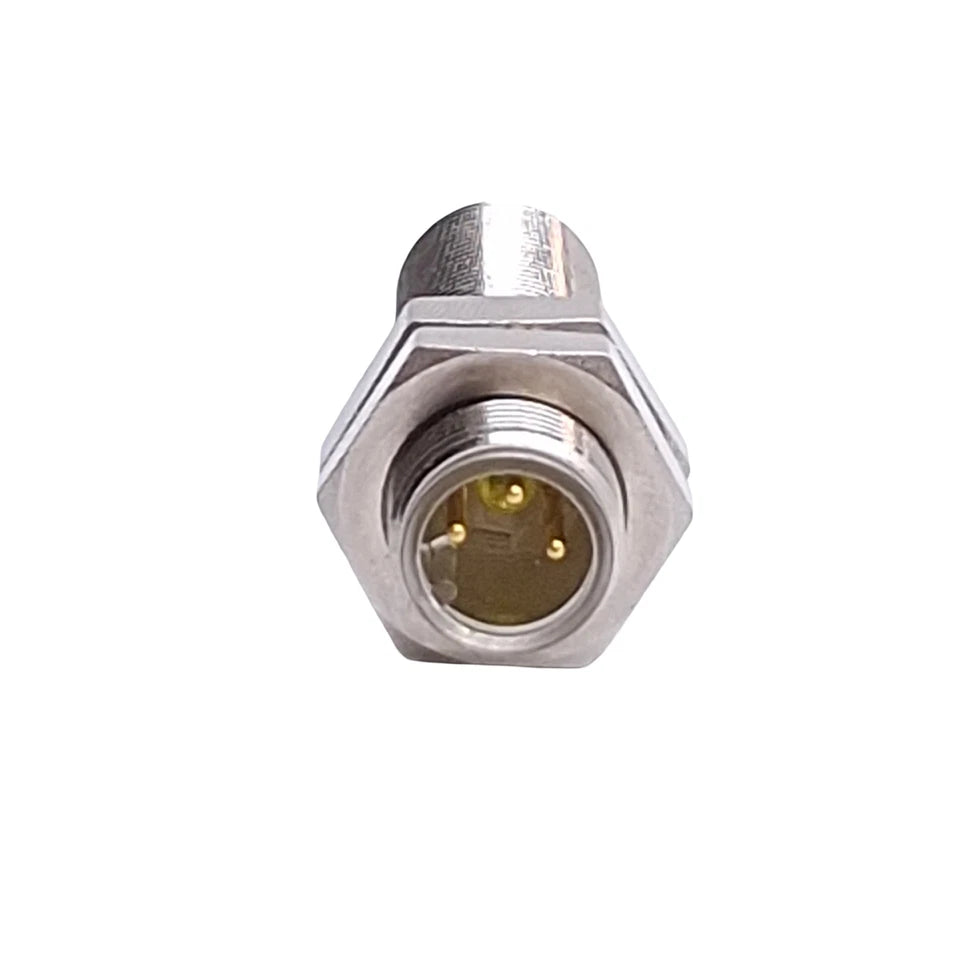

Connection Type: M12 Micro Quick-Disconnect, 4-pin
-
Environmental Protection: IP67 rated (dust-tight and water-resistant)
-
Operating Temperature Range: -25°C to +70°C
-
Mounting Style: Threaded barrel mounting with locknuts included
-
Certifications: CE, cULus
The 872C-DH3NP12-D4 is well-suited for industrial applications requiring durable and precise proximity sensing. Its high switching frequency, sturdy housing, and IP67 protection make it an excellent choice for automated systems, conveying equipment, and harsh manufacturing environments.
