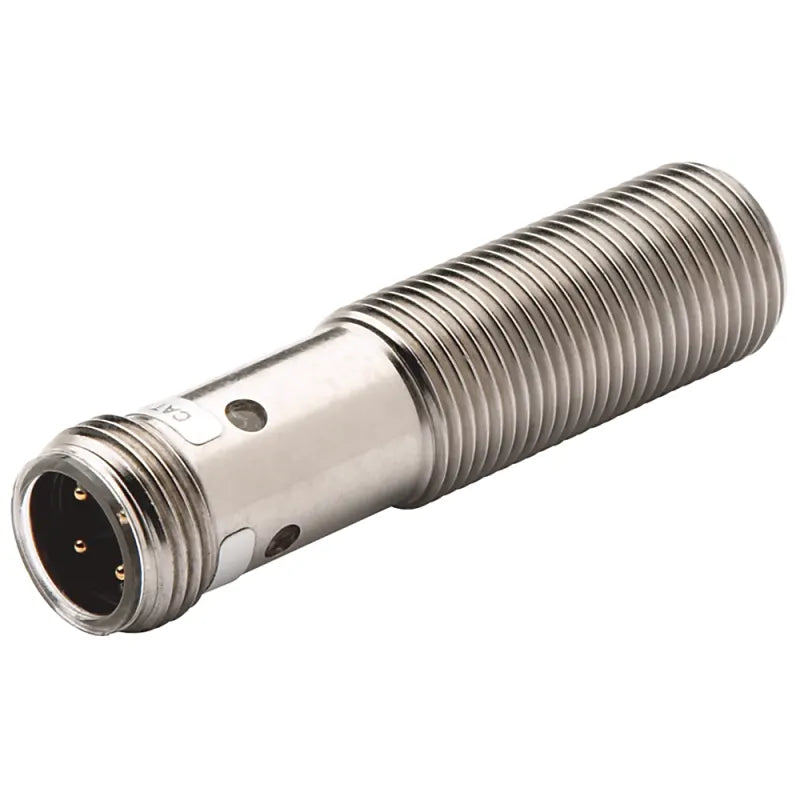

872C-DH4NP12-D4 | Allen-Bradley Proximity Sensor 3-Wire DC
- Regular price
- $79.00
- Sale price
- $79.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 872C-DH4NP12-D4
Description
The Allen-Bradley 872C-DH4NP12-D4 is a rugged and reliable 3-wire DC proximity sensor designed for detecting metallic targets in industrial automation systems. Featuring a short, 12 mm diameter nickel-plated brass barrel and a 4 mm sensing range, this sensor is ideal for applications requiring precise and consistent object detection.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
| Category |
Sensors & Switches
|
| Part Number | 872C-DH4NP12-D4 |
| Subcategory | Proximity Switch |
| Barrel Diameter | 12 mm |
| Barrel Type | Short |
| Connection Type | Plug-in (4-Pin DC Micro QD) |
| Material | Nickel-Plated Brass |
| Maximum Load Current | 200 mA |
| Mounting Type | Concise |
| Operating Frequency | 1300 Hz |
| Output | Normally Open (PNP Source) |
| Sensing Range | 4 mm |
| Standards Compliance | C-TICK, CCC, CE, CUL, KC, RCM, UL |
| Voltage | Up to 30 V DC |
| Weight | 0.0600 lb |
Information About 872C-DH4NP12-D4
The 872C-DH4NP12-D4 proximity sensor operates on a standard DC voltage supply of up to 30V and features a PNP (source) output with a normally open configuration, simplifying integration into control systems that require positive logic signals. It is rated for a maximum load current of 200 mA, making it suitable for direct connection to PLC inputs, relays, or other control devices. The device is designed for unshielded installation, ensuring a broader sensing field and enhanced flexibility in positioning. Its concise mounting style supports straightforward installation in tight spaces.
Key Features:
- 3-Wire DC Operation: Compatible with standard 24V DC control systems, supporting simple integration into modern industrial automation architectures.
- 12 mm Short Barrel: Compact design facilitates installation in tight spaces while maintaining robust mechanical integrity.
- 4 mm Sensing Range: Provides reliable object detection at a moderate distance, making it versatile for various industrial sensing applications.
- Nickel-Plated Brass Construction: Ensures durability and resistance to mechanical wear, corrosion, and environmental factors.
- PNP (Source) Output: Simplifies connection to positive logic inputs, commonly used in PLCs and other industrial control devices.
- Normally Open Configuration: Delivers a clear ON signal when a target is detected, supporting straightforward integration into safety and control circuits.
- Maximum Load Current: Rated up to 200 mA, suitable for direct switching of control devices and indicator lights.
- Unshielded Construction: Allows a broader sensing field, providing flexibility in installation and sensor positioning.
The 872C-DH4NP12-D4 proximity sensor is a dependable and versatile solution for industrial object detection, delivering consistent performance in even the most demanding environments.
