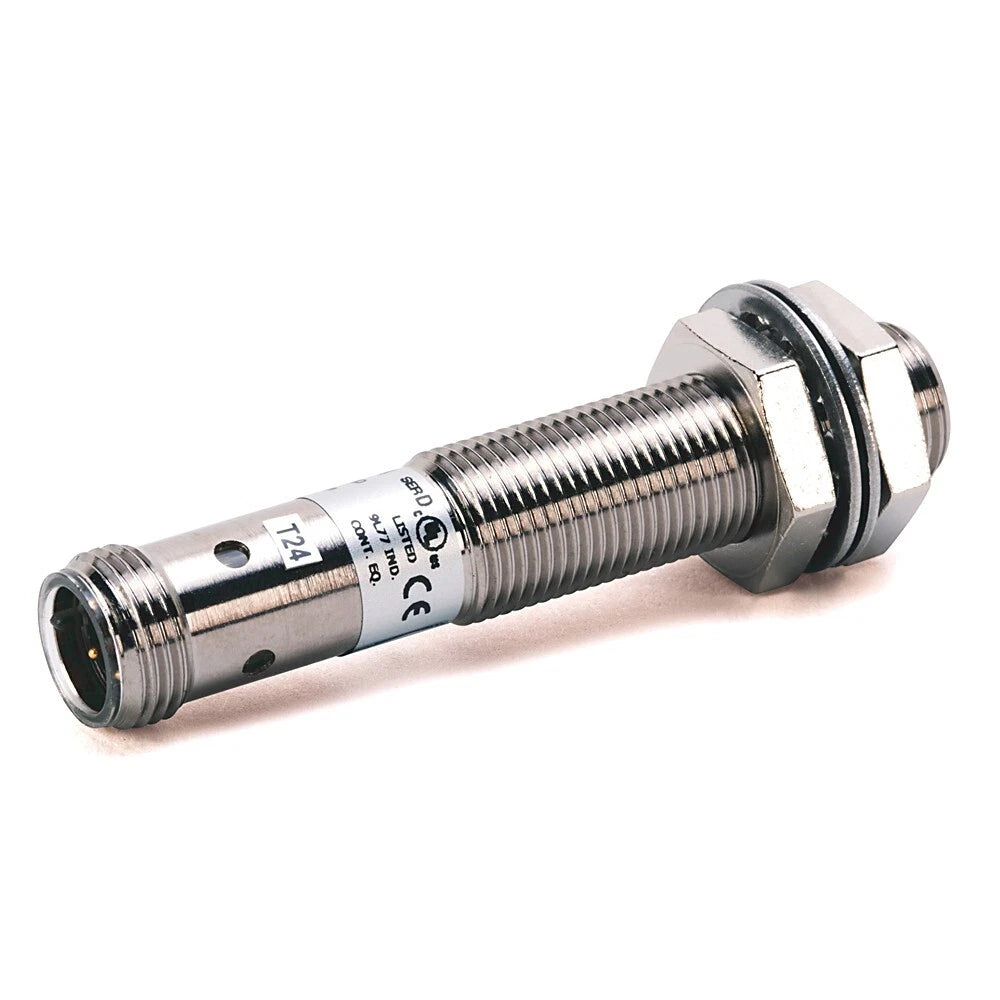

872C-M4NP12-D4 | Allen-Bradley Nickel Brass Inductive Sensor
- Regular price
- $74.00
- Sale price
- $74.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 872C-M4NP12-D4
Description

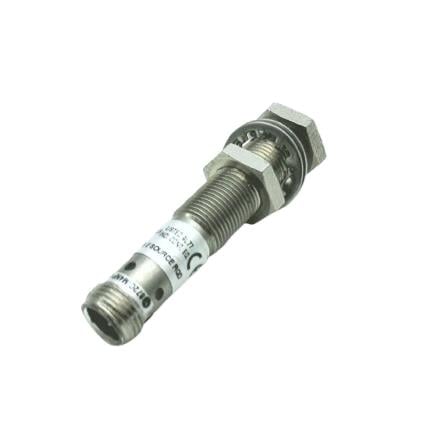

The Allen-Bradley 872C-M4NP12-D4 is a compact, cylindrical inductive proximity sensor designed for detecting metallic targets. With a 12 mm threaded barrel and a 4 mm sensing range, it offers reliable non-contact detection in industrial automation environments.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
| Category |
Sensors & Switches
|
| Part Number | 872C-M4NP12-D4 |
| Subcatecory |
Proximity Switch
|
| Sensing Range | 4 mm |
| Output Type | Normally Open (NO) |
| Operating Voltage | Up to 30 V DC |
| Max Load Current | 200 mA |
| Operating Frequency | 900 Hz |
| Barrel Type | Threaded, cylindrical |
| Barrel Diameter | 12 mm |
| Material | Nickel Brass |
| Connection Type | 4-Pin DC Micro QD |
| Mounting | Flush (shielded) |
| Weight | 0.0600 lb |
Information About 872C-M4NP12-D4
The 872C-M4NP12-D4 operates on DC voltage up to 30V and delivers a normally open output with a maximum load current of 200 mA, supporting fast switching with a 900 Hz operating frequency. Its shielded, screw-thread design allows for flush mounting and precise alignment in space-constrained applications. The sensor includes a 4-pin DC Micro QD connection for easy installation and replacement in field wiring. Constructed from nickel-plated brass, it meets global standards such as CE, UL, CCC, KC, and RCM for dependable sensing performance.
Key Features:
- Detection Type: inductive sensor for metallic target detection.
- Barrel Diameter: standard 12 mm threaded cylindrical housing for compact mounting.
- Sensing Distance: 4 mm sensing range with shielded, flush-mount capability.
- Switching Output: normally open (NO) configuration with 200 mA max load.
- High Switching Speed: operates at 900 Hz for rapid detection response.
- Voltage Rating: supports up to 30V DC operation.
- Connection Type: 4-pin DC Micro QD plug-in for fast installation and replacement.
- Rugged Design: nickel-plated brass body with resistance to industrial environments.
- Certifications: C-TICK, CE, UL, CCC, KC, RCM compliance ensures global suitability.
The 872C-M4NP12-D4 provides fast, reliable metallic object detection with high-frequency response and a compact threaded design for industrial sensor networks.
