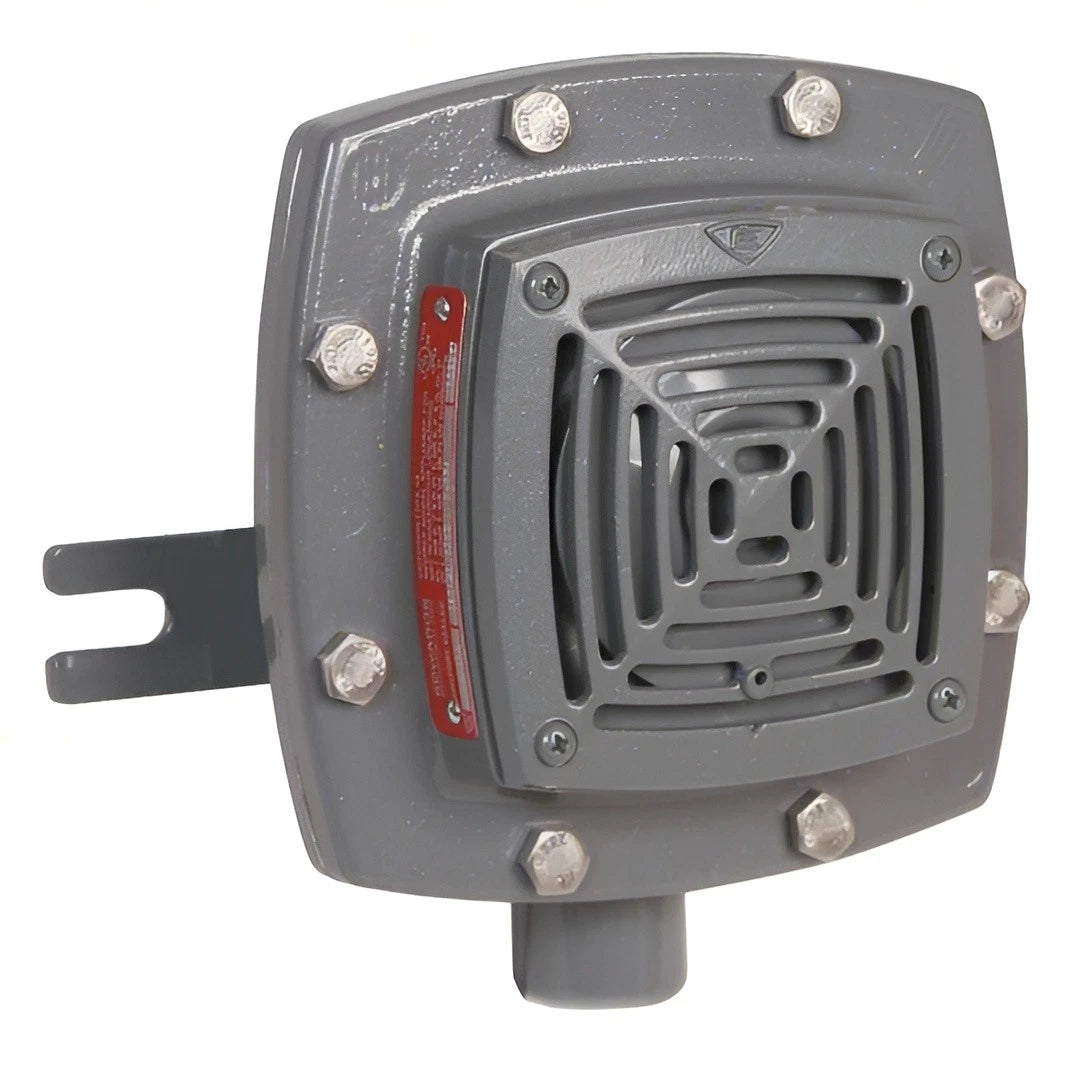

879EX-G1 | Edwards High-Decibel Vibrating Horn, 24VDC, 97 dB, NEMA 4X Hazardous Location
- Regular price
- $1,177.00
- Sale price
- $1,177.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: 879EX-G1
Description
The Edwards 879EX-G1 (part number 879EX-G1) is a high-decibel vibrating horn designed for hazardous location signaling applications. Operating at 24 VDC with a 0.16 A current draw, it produces a sound output of 97 dB at 10 feet. Built with a die-cast housing and epoxy finish, the 879EX-G1 is UL Listed and NEMA 4X rated for use in demanding industrial environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Edwards Signaling |
| Category | Panel Accessories |
| Part Number | 879EX-G1 |
| Subcategory | Buzzer/Horn/Alarm |
| Type | High Decibel Vibrating Horn |
| Series | 879EX |
| Voltage Rating | 24 VDC |
| Amperage Rating | 0.16 A |
| Sound Level | 97 dB at 10 ft |
| Housing Material | Die Cast |
| Finish | Epoxy, corrosion-resistant |
| Mounting Type | Surface mount with side brackets |
| Conduit Entry | Tapped for 3/4 in. conduit |
| Environmental Rating | NEMA 4X |
| Certifications | UL Listed, Hazardous Location Approved |
| Operating Temperature | 25°F minimum |
| Dimensions | 7-5/8 in L × 7-3/8 in W × 4-3/16 in H |
| Color | Gray |
| Typical Applications | Mines, oil/gas plants, mills, marine vessels |
| Weight | 9.00 lbs |
Information About 879EX-G1
The 879EX-G1 is part of the Edwards 870EX/879EX series of explosionproof vibrating horns, engineered for use in dusty, hazardous, and corrosive environments. Typical applications include mines, petroleum plants, gas facilities, grain elevators, flour mills, paper and textile plants, and marine tankers where distinctive audible signals are required. The horn features embedded power connection wires sealed against moisture and contaminants, with side brackets for secure wall mounting. With low current drain, rugged die-cast construction, and a corrosion-resistant epoxy coating, the 879EX-G1 delivers long-term reliability in critical signaling operations.
Key Features:
- High-Decibel Output: Produces 97 dB at 10 feet for clear signaling in noisy environments.
- Explosionproof Design: Certified for hazardous locations including Class I, II, and III divisions.
- 24 VDC Operation: Operates efficiently at 0.16 A with stable performance.
- Low Current Drain: Designed for minimal power consumption without reducing effectiveness.
- Corrosion-Resistant Housing: Die-cast body with epoxy coating ensures durability in harsh conditions.
- NEMA 4X Rated: Provides protection against dust, water, and corrosion.
- Surface Mounting: Two side brackets included for reliable wall installation.
- Sealed Connections: Power wires embedded in sealing compound for maximum environmental protection.
- Wide Application Use: Suitable for mines, oil and gas plants, mills, and marine vessels.
- UL Listed: Meets stringent safety standards for industrial signaling equipment.
The 879EX-G1 delivers the reliability and sound performance required for hazardous location signaling in demanding environments.
