889D-AW | Edwards Signaling High Decibel Vibrating Horn
- Regular price
- $699.00
- Sale price
- $699.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 889D-AW
Description
The Edwards Signaling 889D-AW is a heavy-duty, high-decibel vibrating horn engineered for life safety systems in hazardous (classified) locations. Operating on 20–24 VDC, it delivers a sound output of 100 dBA at 10 feet (anechoic) and 84 dBA in reverberant conditions, ensuring effective audible alerts in high-noise environments.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Edwards Signaling |
| Category |
Panel Accessories
|
| Part Number | 889D-AW |
| Subcategory |
Buzzers, Horns & Alarms
|
| Type | High Decibel |
| Series |
870EX
|
| Voltage Rating |
20 to 24 VDC
|
| Amperage Rating |
0.16 A
|
| Sound Level |
84 dB
|
| Mounting Type |
Wall
|
| Operating Temperature |
25°F
|
| Material |
Die Cast
|
| Color |
Red
|
| Dimensions |
7-5/8 in L x 7-3/8 in W x 4-3/16 in H
|
| Weight |
4.08 kgs
|
Information About 889D-AW

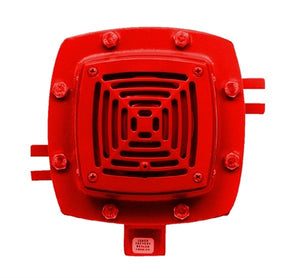

The Edwards 889D-AW High Decibel Vibrating Horn is a heavy-duty, explosion-proof signaling device designed for use in hazardous environments where high-audibility alerts are critical. Constructed with a corrosion-resistant die-cast aluminum housing, it delivers reliable sound performance in both industrial and classified locations.
Key Features:
- Operating Voltage: 20–24 VDC
- Current Draw: 0.16 Amps
- Sound Output: 100 dBA at 10 ft (anechoic); 84 dBA (reverberant)
- Material: Die-cast aluminum with red heat-flowed epoxy finish
- Mounting: Wall mount with two side brackets; ¾-inch NPT conduit entry
- Dimensions: 7-5/8" (H) × 7-3/8" (W) × 4-3/16" (D)
- Certifications: UL Listed for Class I, Division 1 & 2 (Groups B, C, D); Class II, Division 1 & 2 (Groups E, F, G); Class III
- NEMA Rating: Type 4X (weatherproof and corrosion-resistant)
This vibrating horn is ideal for life safety and industrial applications such as petrochemical plants, grain elevators, and mining operations. Its robust construction and high sound output make it suitable for use in high-noise environments where clear and effective signaling is essential.
Description
The Edwards Signaling 889D-AW is a heavy-duty, high-decibel vibrating horn engineered for life safety systems in hazardous (classified) locations. Operating on 20–24 VDC, it delivers a sound output of 100 dBA at 10 feet (anechoic) and 84 dBA in reverberant conditions, ensuring effective audible alerts in high-noise environments.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Edwards Signaling |
| Category |
Panel Accessories
|
| Part Number | 889D-AW |
| Subcategory |
Buzzers, Horns & Alarms
|
| Type | High Decibel |
| Series |
870EX
|
| Voltage Rating |
20 to 24 VDC
|
| Amperage Rating |
0.16 A
|
| Sound Level |
84 dB
|
| Mounting Type |
Wall
|
| Operating Temperature |
25°F
|
| Material |
Die Cast
|
| Color |
Red
|
| Dimensions |
7-5/8 in L x 7-3/8 in W x 4-3/16 in H
|
| Weight |
4.08 kgs
|
Information About 889D-AW
The Edwards 889D-AW High Decibel Vibrating Horn is a heavy-duty, explosion-proof signaling device designed for use in hazardous environments where high-audibility alerts are critical. Constructed with a corrosion-resistant die-cast aluminum housing, it delivers reliable sound performance in both industrial and classified locations.
Key Features:
- Operating Voltage: 20–24 VDC
- Current Draw: 0.16 Amps
- Sound Output: 100 dBA at 10 ft (anechoic); 84 dBA (reverberant)
- Material: Die-cast aluminum with red heat-flowed epoxy finish
- Mounting: Wall mount with two side brackets; ¾-inch NPT conduit entry
- Dimensions: 7-5/8" (H) × 7-3/8" (W) × 4-3/16" (D)
- Certifications: UL Listed for Class I, Division 1 & 2 (Groups B, C, D); Class II, Division 1 & 2 (Groups E, F, G); Class III
- NEMA Rating: Type 4X (weatherproof and corrosion-resistant)
This vibrating horn is ideal for life safety and industrial applications such as petrochemical plants, grain elevators, and mining operations. Its robust construction and high sound output make it suitable for use in high-noise environments where clear and effective signaling is essential.
