8903LG20V02 | Schneider Electric Contactor
- Regular price
- $399.00
- Sale price
- $399.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 8903LG20V02
Description
The 8903LG20V02 is a Type L multipole lighting contactor designed for lighting control applications. Specifically, it is an electrically held device capable of switching up to 30 A fluorescent and 20 A tungsten lighting loads. This contactor features two poles with two normally open (NO) contacts, which are field convertible to normally closed (NC).

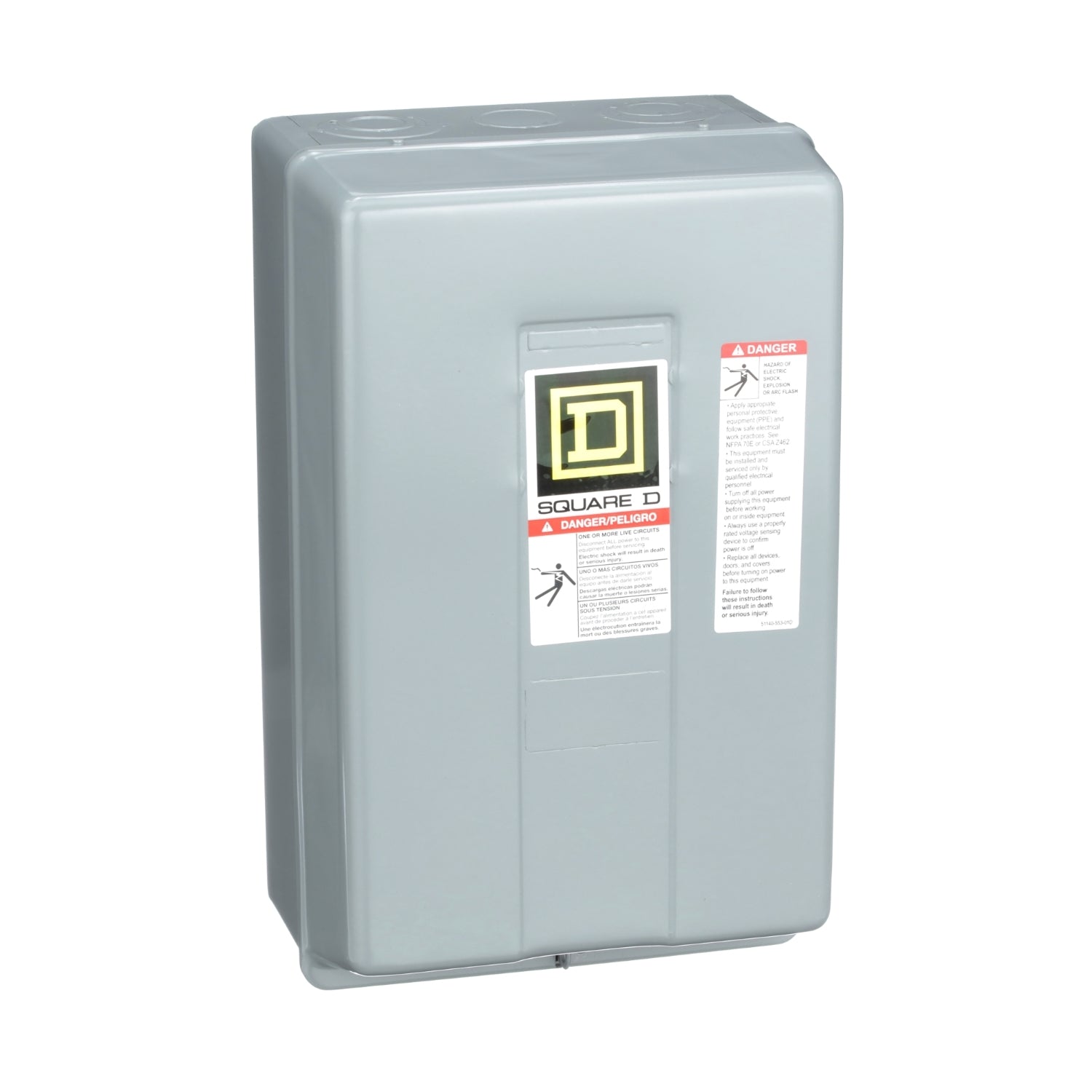

Equipped with a 110/120 VAC 50/60 Hz interchangeable operating coil, this device supports a wide range of common voltages up to 600VAC. It is housed in a NEMA 1 painted sheet steel enclosure, although other enclosure types are available. Both the coil and contacts are easily replaceable for convenience.
Technical Specifications
|
Part # |
8903LG20V02 |
|
Category |
Contactors & Starters |
|
Subcategory |
Contactor |
|
Product or Component Type |
Electrically Held Lighting Contactor |
|
Range of Product |
8903L |
|
Control Circuit |
Separate control circuit |
|
Control Circuit Voltage |
110 V AC 50 Hz <br> 120 V AC 60 Hz |
|
Inrush power in VA |
150 VA 60 Hz <br> 140 VA 50 Hz |
|
Hold-in power consumption in VA |
30 VA 60 Hz <br> 30 VA 50 Hz |
|
Current Rating |
20 A tungsten <br> 30 A fluorescent |
|
Number of Poles |
2P 2 NO |
|
Control Unit |
No control units |
|
Pilot Light |
No indicator |
|
Electrical Connection |
Screw-clamp terminals |
|
Height |
12.68 in (322 mm) |
|
Depth |
6.02 in (153 mm) |
|
Width |
7.80 in (198 mm) |
Information About 8903LG20V02
The 8903LG20V02 is a Contactor, specifically a Type L Multipole Lighting Contactor, designed for lighting control applications. It falls under the 8903L series, offering both mechanically held and electrically held versions. This particular model is electrically held, capable of handling lighting loads up to 30 A for fluorescent and 20 A for tungsten lighting.
Featuring two poles, this device comprises two Normally Open (NO) contacts, convertible to Normally Closed (NC) if required. It comes with a 110/120 VAC 50/60 Hz interchangeable operating coil, although other coil options are available with common voltages up to 600VAC.
Housed in a NEMA 1 painted sheet steel enclosure, the 8903LG20V02 ensures durability and protection. However, various enclosure types are available to suit different environmental conditions. Both the coil and contacts of this contactor are easily replaceable, allowing for convenient maintenance.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
