Part #: 8903LXO80V02 Manufactured by: Schneider Electric
Regular price
$1,395.00
Sale price
$1,395.00
Regular price
4 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The 8903LXO80V02 is a multipole lighting contactor designed for lighting control applications. It belongs to the 8903L ser...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: 8903LXO80V02
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Schneider Electric
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: 8903LXO80V02

Description / Specifications

Description

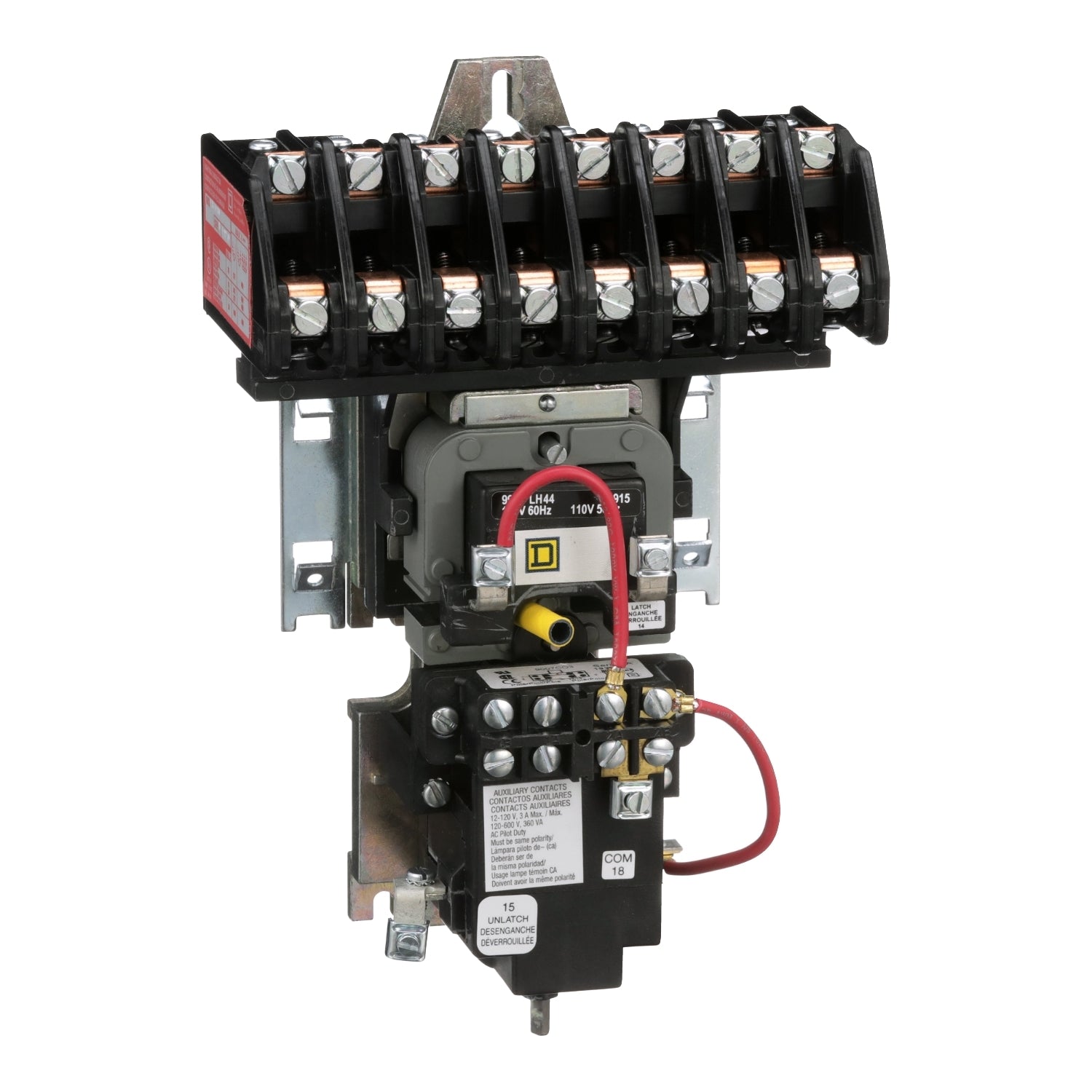

The 8903LXO80V02 is a Type L multipole lighting contactor designed for lighting control applications. This mechanically held device operates at 30A with 8 poles and a voltage rating of 600V, featuring a 110/120VAC 50/60Hz coil. Primarily used for fluorescent and tungsten lighting loads, it offers 8 NO contacts, with field convertible options from NO to NC. Supplied with two operating coils, one for latching and the other for unlatching, both coils are rated at 110/120 VAC 50/60 Hz. The contactor is open-style, allowing easy coil and contact replacement, with dimensions of 8.81 inches in height, 5.63 inches in width, and 3.25 inches in depth. UL Listed and CSA Certified, it offers versatility in enclosure types and is suitable for a wide range of common voltages up to 600VAC.



Technical Specifications

Part # 8903LXO80V02
Category Contactors & Starters
Subcategory Contactor
Current Rating 20 A tungsten, 30 A fluorescent
Number of Poles 8P 8 NO
Control Unit No control units
Pilot Light No indicator
Other Options None
Electrical Connection Screw-clamp terminals
Height 8.82 in (224 mm)
Depth 3.27 in (83 mm)
Width 5.63 in (143 mm)



Information About 8903LXO80V02

The 8903LXO80V02 is a type L multipole lighting contactor designed for lighting control applications. Available in mechanically held or electrically held versions, this model is mechanically held, capable of switching up to 30 A fluorescent and 20 A tungsten lighting loads. Featuring 8 poles with 8 normally open (NO) contacts, it offers flexibility as the contacts are field convertible from normally open (NO) to normally closed (NC).

This device comes equipped with two operating coils: one for latching the contactor and the other for unlatching it. Both coils are rated for 110/120 VAC at 50/60 Hz, with options for other common voltages up to 600VAC.

The contactor is an open-style device with various enclosure types available. Coils and contacts are easily replaceable for maintenance purposes.







Manufacturer information

Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.

IQElectro is not an authorized distributor.
QElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
Description / Specifications

Description

The 8903LXO80V02 is a Type L multipole lighting contactor designed for lighting control applications. This mechanically held device operates at 30A with 8 poles and a voltage rating of 600V, featuring a 110/120VAC 50/60Hz coil. Primarily used for fluorescent and tungsten lighting loads, it offers 8 NO contacts, with field convertible options from NO to NC. Supplied with two operating coils, one for latching and the other for unlatching, both coils are rated at 110/120 VAC 50/60 Hz. The contactor is open-style, allowing easy coil and contact replacement, with dimensions of 8.81 inches in height, 5.63 inches in width, and 3.25 inches in depth. UL Listed and CSA Certified, it offers versatility in enclosure types and is suitable for a wide range of common voltages up to 600VAC.



Technical Specifications

Part # 8903LXO80V02
Category Contactors & Starters
Subcategory Contactor
Current Rating 20 A tungsten, 30 A fluorescent
Number of Poles 8P 8 NO
Control Unit No control units
Pilot Light No indicator
Other Options None
Electrical Connection Screw-clamp terminals
Height 8.82 in (224 mm)
Depth 3.27 in (83 mm)
Width 5.63 in (143 mm)



Information About 8903LXO80V02

The 8903LXO80V02 is a type L multipole lighting contactor designed for lighting control applications. Available in mechanically held or electrically held versions, this model is mechanically held, capable of switching up to 30 A fluorescent and 20 A tungsten lighting loads. Featuring 8 poles with 8 normally open (NO) contacts, it offers flexibility as the contacts are field convertible from normally open (NO) to normally closed (NC).

This device comes equipped with two operating coils: one for latching the contactor and the other for unlatching it. Both coils are rated for 110/120 VAC at 50/60 Hz, with options for other common voltages up to 600VAC.

The contactor is an open-style device with various enclosure types available. Coils and contacts are easily replaceable for maintenance purposes.







Manufacturer information

Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
