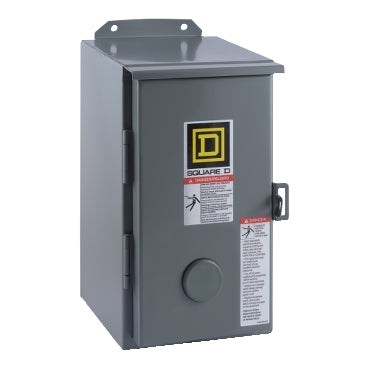

8903SMA2V02 | Square D Electrically Held 3-Pole 30A 600VAC Lighting Contactor
- Regular price
- $909.00
- Sale price
- $909.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 8903SMA2V02
Description
The Square D 8903SMA2V02 is an electrically held lighting contactor designed for reliable control of high-current lighting loads in commercial and industrial installations. It features a 3-pole configuration with a 30 A current rating and operates at up to 600 VAC. This unit is intended for surface-mounted applications where dependable switching and long service life are required.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D |
| Category | Lighting Control |
| Part Number | 8903SMA2V02 |
| Subcategory | Lighting Contactors |
| Contactor Type | Electrically Held |
| Number of Poles | 3 |
| Rated Current | 30 A |
| Rated Voltage | 600 VAC |
| Coil Voltage | 110 VAC (50 Hz) / 120 VAC (60 Hz) |
| Electrical Connection | Lugs |
| Enclosure Type | Open |
| Mounting Style | Surface Mount |
| Construction Standard | NEMA |
| Certifications | UL, CSA |
| Weight | Approx. 11.66 lb |
Information About 8903SMA2V02
The 8903SMA2V02 is part of the Square D Type S lighting contactor series engineered for centralized lighting control systems. It is built with a robust open-frame construction and uses electrically held operation to maintain circuit state without continuous manual intervention. This contactor is compatible with standard lighting control panels and supports lug-type electrical connections for secure wiring. It is commonly used in facilities where scheduled or automated lighting control is required, such as warehouses, factories, and large commercial buildings.
Key Features:
-
Electrically Held Operation: Maintains contact position using a control coil for stable and consistent switching.
-
3-Pole Configuration: Supports three-phase lighting circuits and balanced load control.
-
600 VAC Voltage Rating: Suitable for high-voltage lighting and power distribution systems.
-
30 Amp Current Rating: Designed to handle substantial lighting loads safely.
-
Standard Coil Voltage: Operates with 110 VAC at 50 Hz or 120 VAC at 60 Hz control circuits.
-
Lug-Type Connections: Provides secure and reliable electrical terminations.
-
Surface Mount Design: Allows straightforward installation in control enclosures and panels.
The 8903SMA2V02 delivers the reliability and precision required for industrial and commercial lighting control applications.
