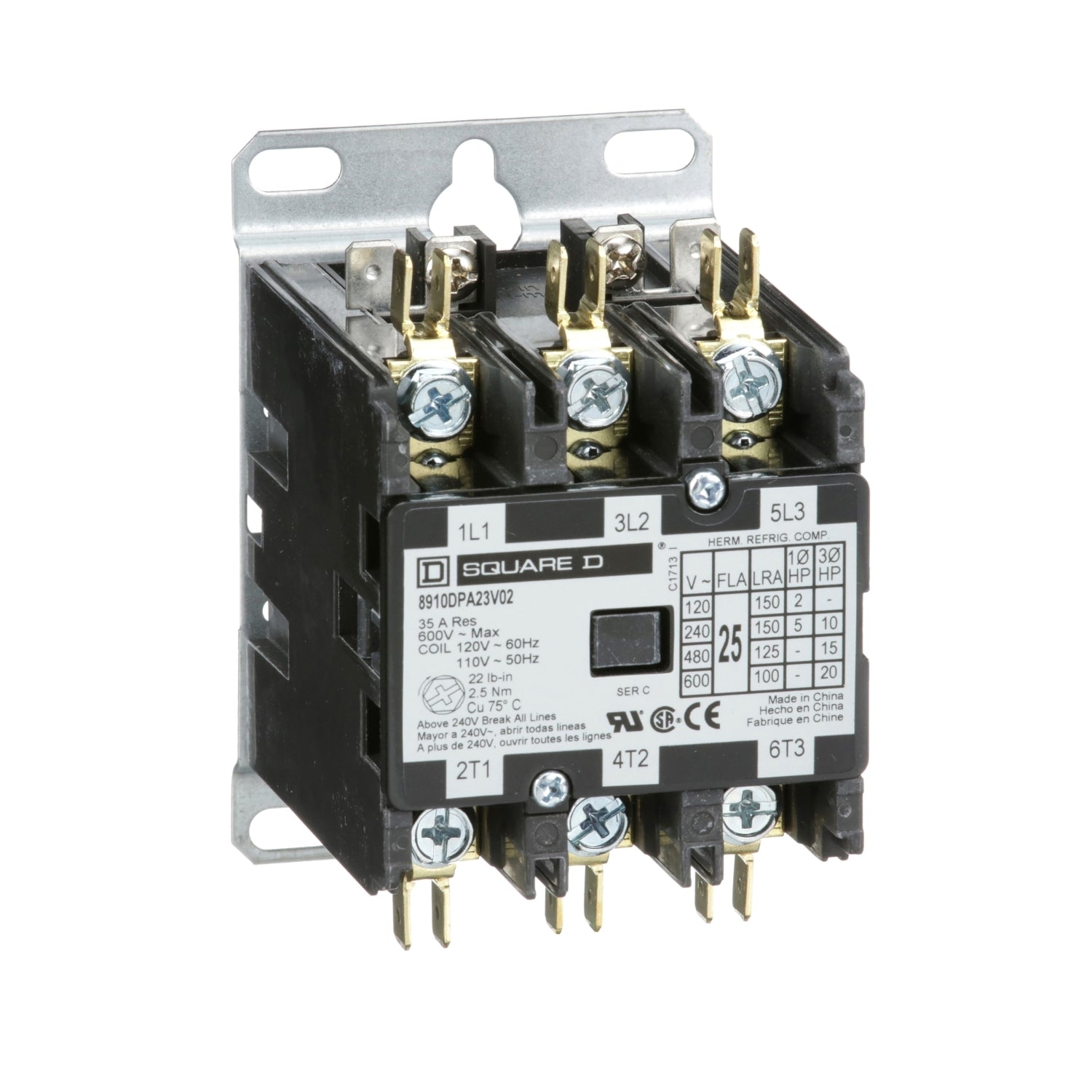

8910DPA23V02 | Schneider Electric Contactor, Definite Purpose, 25A, 3 Pole
- Regular price
- $127.00
- Sale price
- $127.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 8910DPA23V02
Description
The 8910DPA23V02 is a three-pole definite purpose contactor from the 8910DP series, designed specifically for applications in heating, air conditioning, and refrigeration systems. These contactors are tailored to handle varying loads, with a full load rating of 25 amperes and a resistive rating of 35 amperes.
Featuring robust capabilities, this contactor supports up to 2 HP at 115 VAC single phase, 5 HP at 230 VAC single phase, and 10 HP at 230 VAC three phase, extending to 15 HP at 460 VAC and 20 HP at 575 VAC in three-phase configurations. Its nonreplaceable coil operates on a 110/120 VAC 50/60 Hz supply, with options available for different coil voltages to suit diverse operational needs.
Physically, the contactor measures 3.75 inches in width, 2.37 inches in depth, and 3.00 inches in height, providing a compact footprint for installation. It supports straight-through wiring for simplified connectivity in various setups.
Technical Specifications
|
Part # |
8910DPA23V02 |
|
Category |
Contactors & Starters |
|
Subcategory |
Contactor/Starter Coil |
|
Product Type |
Definite Purpose Contactor |
|
Line Rated Current |
25 A |
|
Number of Poles |
3P |
|
Pole Contact Composition |
3 NO |
|
Range of Product |
DPA |
|
Rated Operational Voltage (Ue) |
600 V AC |
|
Control Circuit Voltage (Uc) |
120 V AC 60 Hz |
|
|
110 V AC 50 Hz |
|
Phase |
3 phase |
|
Electrical Connection |
Quick connect terminals |
|
Locked Rotor Rated Current |
125 A 460 V AC |
Information About 8910DPA23V02
The 8910DPA23V02 is a definite purpose magnetic contactor specifically engineered for applications in heating, air conditioning, and refrigeration systems. Part of the 8910DP series, these contactors are robustly designed to handle various electrical loads. They are capable of handling up to 120 amperes resistive current and can manage motors up to 50 horsepower at 600 volts AC.
This particular model is a three-pole contactor with a full load rating of 25 amperes and a resistive rating of 35 amperes. It is suitable for a range of motor sizes: 2 horsepower at 115 volts AC single phase, 5 horsepower at 230 volts AC single phase, 10 horsepower at 230 volts AC three phase, 15 horsepower at 460 volts AC three phase, and 20 horsepower at 575 volts AC three phase.
The contactor features a nonreplaceable coil that supports various coil voltages, including a 110/120 volts AC at 50/60 Hz configuration. It is equipped with straight-through wiring for ease of installation and maintenance.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
