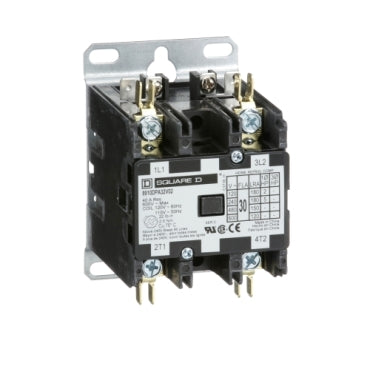

Product Description P/N: 8910DPA32V02
Description
Square D Definite Purpose Contactor, Electro-Mechanical, Series: 8910DPA, 110/120 VAC Coil, 30 A Maximum Load, 2 Pole, 50/60 Hz, Non-Reversing Contact, 2NO, Quick-Connect/Binding Head Screw, Binding Head Screw/Quick-Connect Terminal, Open, 500000 Cycles Operating Cycles, 0 to 65 deg C Operating, Panel Mount, 50.8 mm H x 62.2 mm W x 84.3 mm D.
Technical Specifications
Brand | Schneider Electric |
Part Number | 8910DPA32V02 |
Category | Contactors & Starters |
Subcategory | Contactor |
Coil Power Rating | 2 hp at 115 VAC/5 hp at 230 VAC |
Coil Voltage | 110/120 VAC |
Connection type | Binding Head Screw, Quick-Connect/Binding Head Screw |
Contact Configuration | 2NO |
Contact Rating | 600 VAC |
Contact type | Non-Reversing |
Dimensions | 4 in H x 2.5 in W x 3.12 in D, 50.8 mm H x 62.2 mm W x 84.3 mm D |
Enclosure Type | Open |
Frequency Rating | 50/60 Hz |
Mounting type | DIN Track/Panel, Panel |
Number of Poles | 2 |
Operating Cycles | 500000 Mechanical/200000 Electrical |
Operating Temperature | 0 to 65 deg C, 32 to 149 |
Series | 8910DPA |
Terminal Type | Binding Head Screw/Quick-Connect, Quick-Connect |
Type | 1-Phase Electro-Mechanical, Electro-Mechanical |
Information About 8910DPA32V02
8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This two pole definite purpose contactor has a full load rating of 30 ampere and a resistive rating of 40 amperes. It also has a 2 HP at 115 VAC single phase, 5 HP at 230 VAC single phase and 10 HP at 230 VAC three phase, 15 HP at 460 VAC three phase and 20 HP at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 110/120 VAC 50/60 Hz coil. The contactor has straight through wiring. Contactor is 3.75 inches by 2.37 inches and 3.00 tall. These contactors are UL component recognized and CSA certified.
Features
Quick-connect terminals and binder head screws allow for easy wiring
Auxiliary contact modules snap-on either side of the type DPA contactors
Compact Design
Low Coil VA
Straight-Through Wiring
Continuous Duty Cycle
Low Cost
