8910DPA33V02 | Schneider Electric Contactor, Definite Purpose
- Regular price
- $97.00
- Sale price
- $97.00
- Regular price
-
Couldn't load pickup availability
Do you need help?

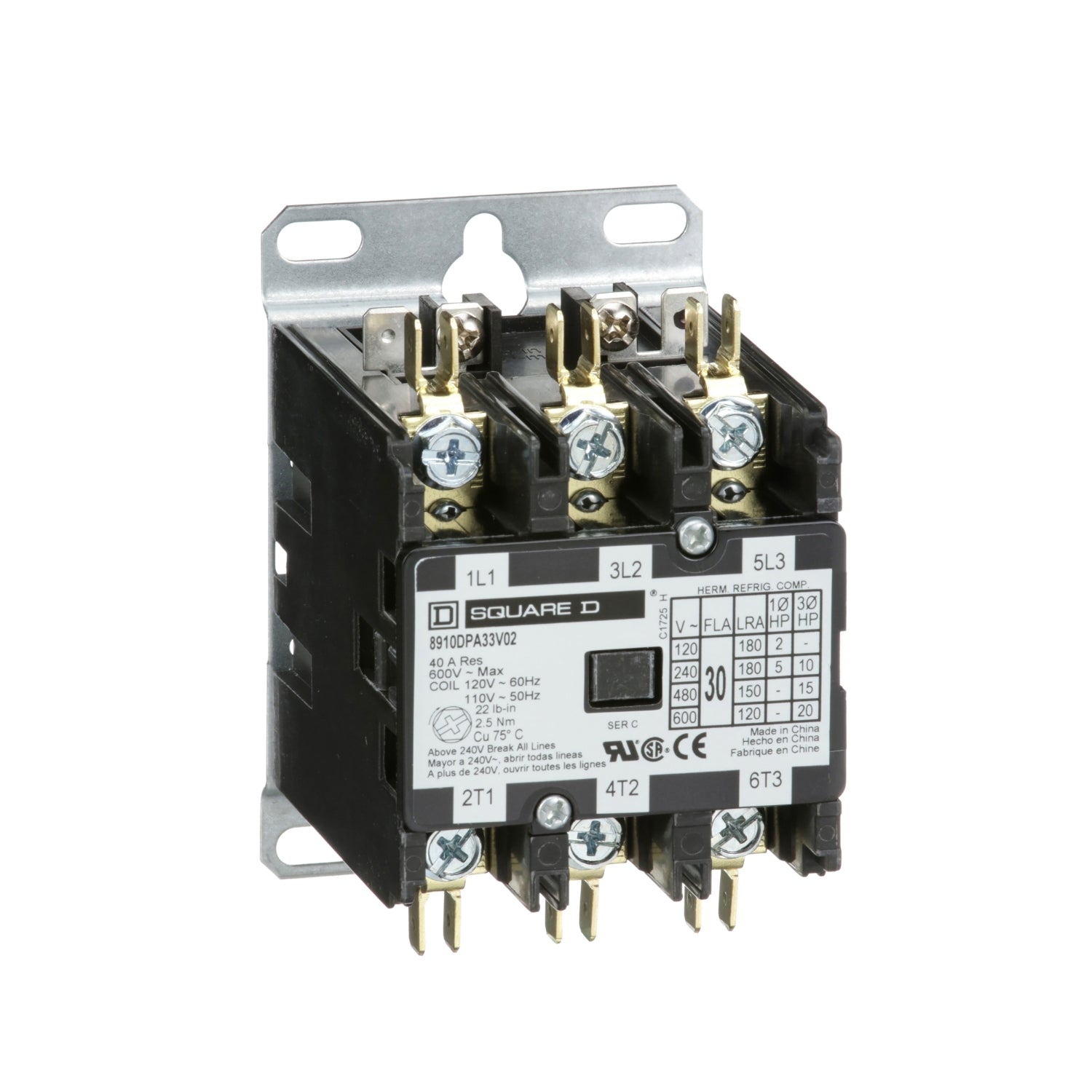

Product Description P/N: 8910DPA33V02
Description
The 8910DPA33V02 is a definite purpose contactor designed for heating, air conditioning, and refrigeration applications. Part of the 8910DP series, these contactors feature current ratings up to 120 amperes resistive and 50 HP at 600 VAC.
This specific three-pole definite purpose contactor has a full load rating of 30 amperes and a resistive rating of 40 amperes. It supports 2 HP at 115 VAC single phase, 5 HP at 230 VAC single phase, 10 HP at 230 VAC three phase, 15 HP at 460 VAC three phase, and 20 HP at 575 VAC three phase.
Technical Specifications
|
Part # |
8910DPA33V02 |
|
Category |
Contactors & Starters |
|
Subcategory |
Contactor |
|
Product or Component Type |
Definite Purpose Contactor |
|
Line Rated Current |
30 A |
|
Number of Poles |
3P |
|
Pole contact composition |
3 NO |
|
Range of Product |
DPA |
|
[Ue] rated operational voltage |
600 V AC |
|
[Uc] control circuit voltage |
120 V AC 60 Hz |
|
|
110 V AC 50 Hz |
|
Phase |
3 phase |
|
Electrical Connection |
Binder head |
Information About 8910DPA33V02
The 8910DPA33V02 is a definite purpose contactor designed for applications in heating, air conditioning, and refrigeration. Belonging to the 8910DP series, these contactors are engineered to handle current ratings up to 120 amperes resistive and 50 HP at 600 VAC.
This specific three-pole definite purpose contactor boasts a full load rating of 30 amperes and a resistive rating of 40 amperes. It supports various horsepower ratings, including 2 HP at 115 VAC single phase, 5 HP at 230 VAC single phase, 10 HP at 230 VAC three phase, 15 HP at 460 VAC three phase, and 20 HP at 575 VAC three phase.
Featuring a nonreplaceable coil with a range of coil voltages available, this device operates with a 110/120 VAC 50/60 Hz coil. The contactor is equipped with straight through wiring and measures 3.75 inches by 2.37 inches and 3.00 inches tall.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
