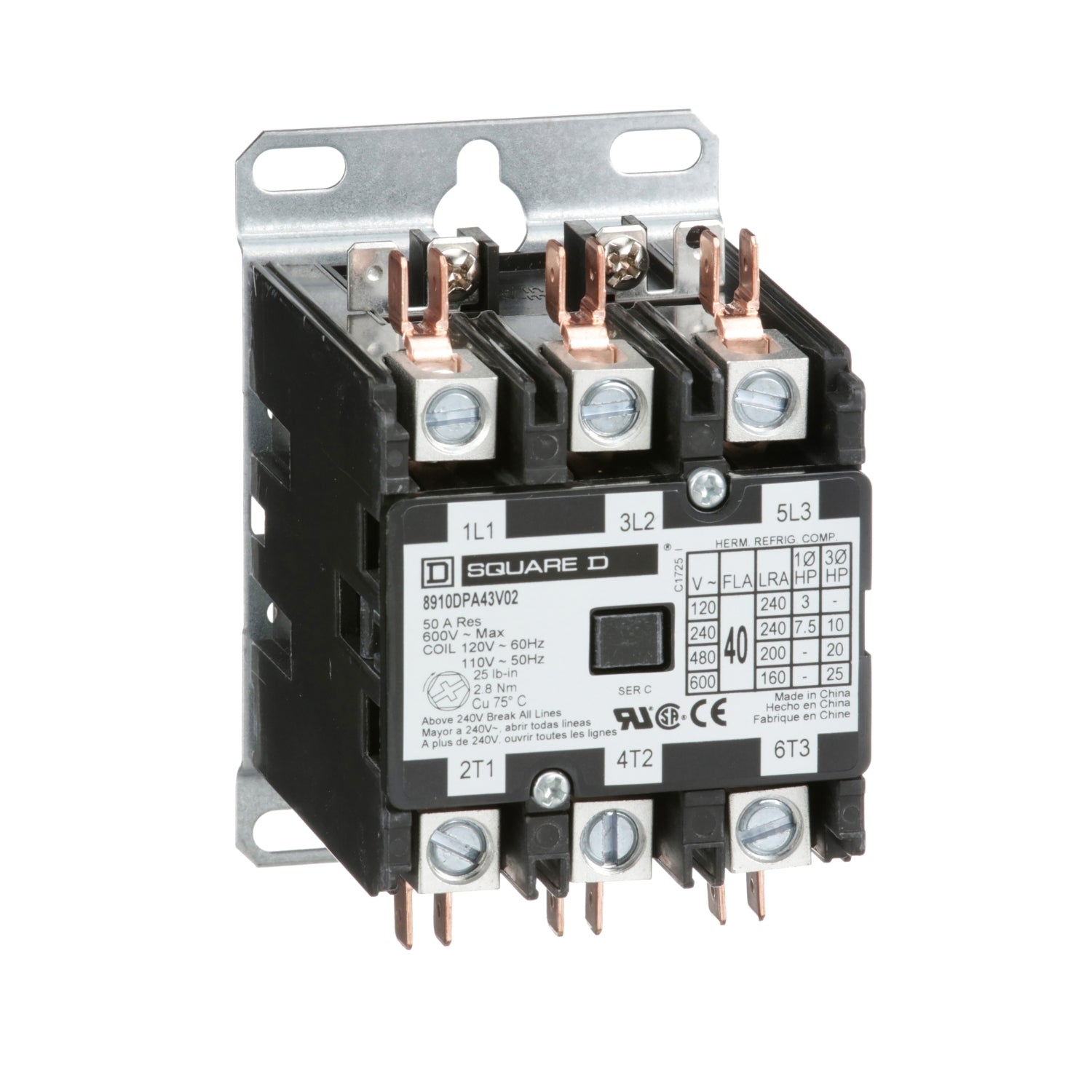

8910DPA43V02 | Schneider Electric Contactor, Definite Purpose
- Regular price
- $92.00
- Sale price
- $92.00
- Regular price
-
Couldn't load pickup availability
Do you need more quantity?
Product Description P/N: 8910DPA43V02
Description
The 8910DPA43V02 is a definite purpose magnetic contactor tailored for heating, air conditioning, and refrigeration applications. Designed for robust performance, this three-pole contactor supports a full load rating of 40 amperes and a resistive rating of 50 amperes. It can handle up to 3 HP at 115 VAC single phase, 7.5 HP at 230 VAC single phase, and up to 10 HP at 230 VAC three phase, with higher capacities including 20 HP at 460 VAC three phase and 25 HP at 575 VAC three phase.
Equipped with a nonreplaceable coil offering various voltages, including a standard 110/120 VAC 50/60 Hz option, the contactor ensures reliable operation across different electrical environments. It features straight-through wiring for simplified installation and maintenance.
Technical Specifications
|
Part # |
8910-DPA43-V02 |
|
Category |
Contactors & Starters |
|
Subcategory |
Contactor |
|
Product Type |
Definite Purpose Contactor |
|
Line Rated Current |
40 A |
|
Number of Poles |
3P |
|
Pole Contact Composition |
3 NO |
|
Range of Product |
DPA |
|
[Ue] Rated Operational Voltage |
600 V AC |
|
[Uc] Control Circuit Voltage |
120 V AC 60 Hz, 110 V AC 50 Hz |
|
Phase |
3 phase |
|
Electrical Connection |
Quick connect terminals, Box lugs |
Information About 8910DPA43V02
The 8910DPA43V02 is a definite purpose magnetic contactor from the 8910DP series, specifically engineered for applications in heating, air conditioning, and refrigeration. These contactors are robustly designed to handle various electrical loads typical in HVAC systems. The product line supports current ratings up to 120 amperes resistive and can manage motors up to 50 HP at 600 VAC.
This particular model, a three-pole contactor, features a full load rating of 40 amperes with a resistive rating of 50 amperes. It accommodates motors with specific horsepower ratings: 3 HP at 115 VAC single phase, 7.5 HP at 230 VAC single phase, 10 HP at 230 VAC three phase, 20 HP at 460 VAC three phase, and 25 HP at 575 VAC three phase.
The contactor is equipped with a nonreplaceable coil available in various voltages, specifically 110/120 VAC at 50/60 Hz. Its electrical configuration includes straight-through wiring, facilitating straightforward installation and maintenance procedures.
Physically, the contactor measures 3.75 inches in length, 2.37 inches in width, and has a height of 3.00 inches, making it compact yet robust for its intended applications.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
IQElectro 2 Year Warranty
IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.Warranty Terms
IQElectro is not an authorized distributor.
