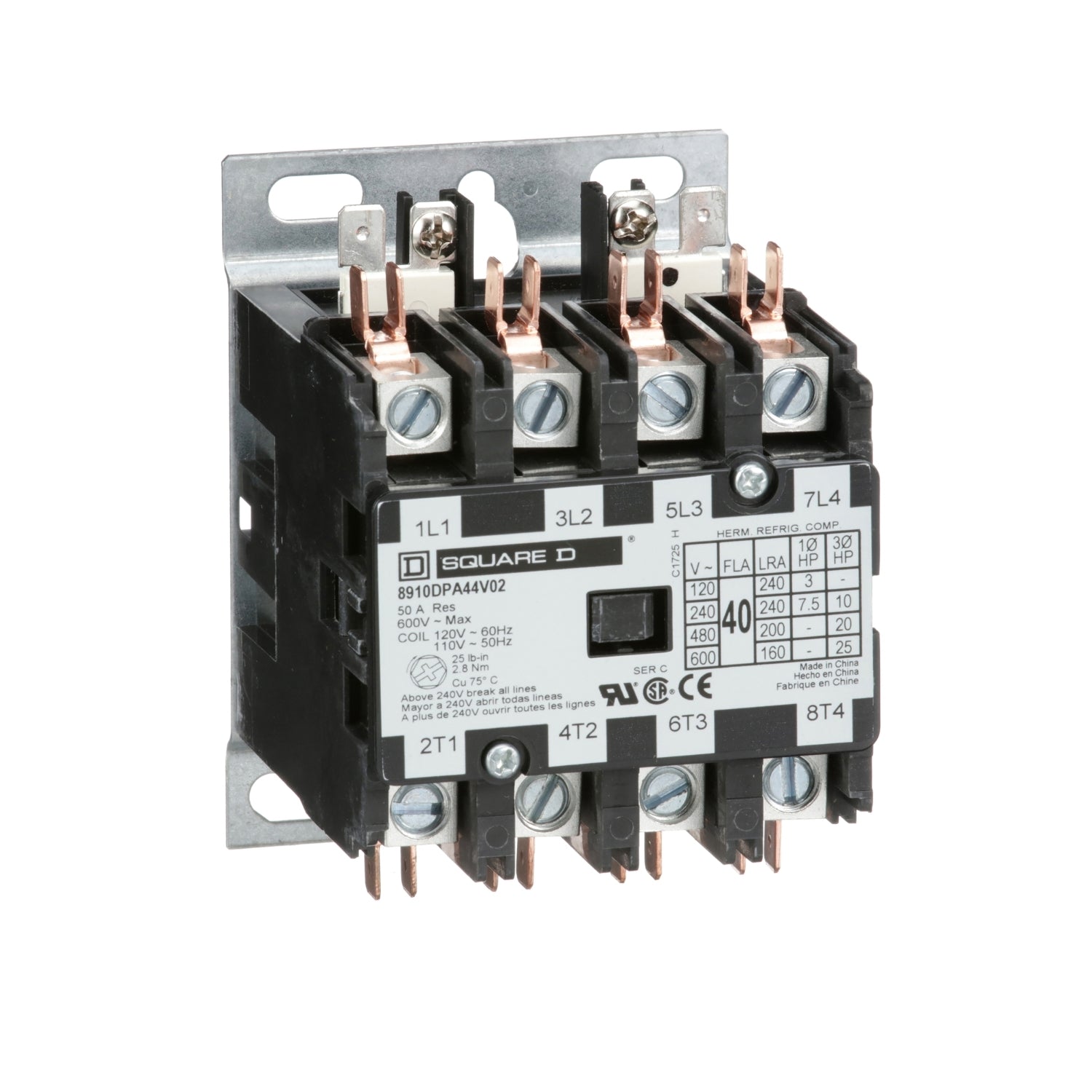

8910DPA44V02 | Schneider Electric Contactor, Definite Purpose
- Regular price
- $110.00
- Sale price
- $110.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 8910DPA44V02
Description
The 8910DPA44V02 is a Definite Purpose Contactor primarily designed for heating, air conditioning, and refrigeration applications. Belonging to the 8910DP line, these contactors offer current ratings up to 120 amperes resistive and support motors up to 50 HP at 600 VAC. This specific model features four poles and is rated for a full load of 40 amperes and a resistive rating of 50 amperes. It accommodates various motor sizes, including 3 HP at 115 VAC single phase, 7.5 HP at 230 VAC single phase, 10 HP at 230 VAC three phase, 20 HP at 460 VAC three phase, and 25 HP at 575 VAC three phase.
Technical Specifications
|
Part # |
8910DPA44V02 |
|
Category |
Contactors & Starters |
|
Subcategory |
Contactor |
|
Product or Component Type |
Definite Purpose Contactor |
|
Line Rated Current |
40 A |
|
Number of Poles |
4P |
|
Pole contact composition |
4 NO |
|
Range of Product |
DPA |
|
[Ue] rated operational voltage |
600 V AC |
|
[Uc] control circuit voltage |
120 V AC 60 Hz <br> 110 V AC 50 Hz |
|
Phase |
3 phase |
|
Electrical Connection |
Box lugs <br> Quick connect terminals |
Information About 8910DPA44V02
The 8910DPA44V02 is a Definite Purpose Contactor tailored for heating, air conditioning, and refrigeration applications. It belongs to the 8910DP line, characterized by robust performance and reliability. This contactor line offers current ratings of up to 120 amperes resistive and supports motors up to 50 HP at 600 VAC, catering to a diverse range of industrial needs.
This specific model features four poles, providing enhanced functionality and versatility in electrical circuitry. With a full load rating of 40 amperes and a resistive rating of 50 amperes, it ensures optimal performance under varying load conditions. Moreover, it accommodates motors of different sizes, including 3 HP at 115 VAC single phase, 7.5 HP at 230 VAC single phase, 10 HP at 230 VAC three phase, 20 HP at 460 VAC three phase, and 25 HP at 575 VAC three phase, enabling its use across a wide spectrum of applications.
The contactor is equipped with a nonreplaceable coil available in various coil voltages, providing flexibility to suit specific operational requirements. Operating at 110/120 VAC with a frequency range of 50/60 Hz, the coil ensures reliable and efficient performance.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
