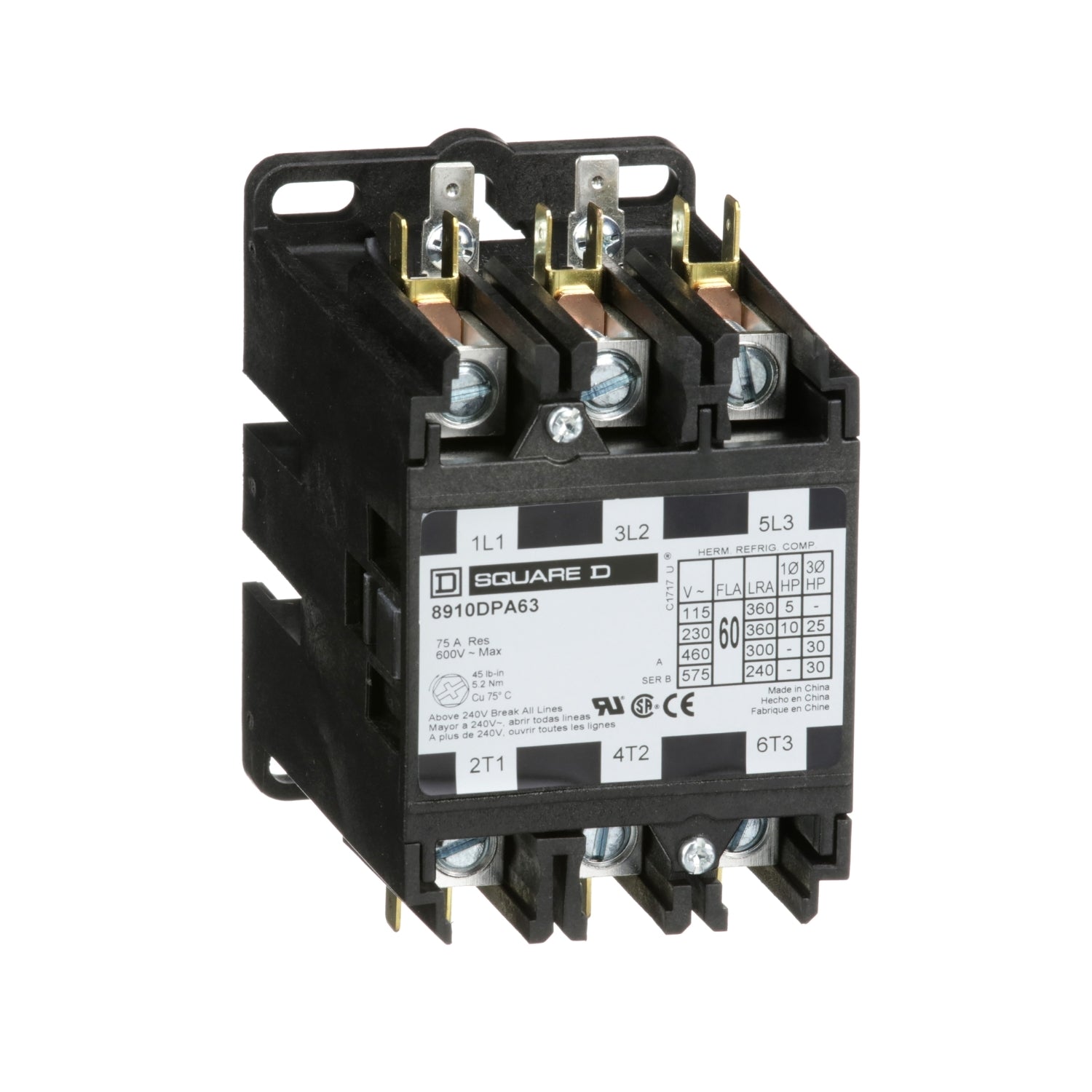

8910DPA63V02 | Schneider Electric Contactor, Definite Purpose
- Regular price
- $199.00
- Sale price
- $199.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 8910DPA63V02
Description
The 8910DPA63V02 Definite Purpose Contactor is engineered for heating, air conditioning, and refrigeration applications. It belongs to the 8910DP series, known for its robustness in handling current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This three-pole contactor specifically features a 60 ampere full load rating and a 75 ampere resistive rating. It supports various motor ratings, including 5 HP at 115 VAC single phase, 10 HP at 230 VAC single phase, 25 HP at 230 VAC three phase, 30 HP at 460 VAC three phase, and 30 HP at 575 VAC three phase.
Technical Specifications
|
Part # |
8910DPA63V02 |
|
Category |
Contactors & Starters |
|
Subcategory |
Contactor |
|
Product Type |
Definite Purpose Contactor |
|
Line Rated Current |
60 A |
|
Number of Poles |
3P |
|
Pole Contact Composition |
3 NO |
|
Range of Product |
DPA |
|
[Ue] Rated Operational Voltage |
600 V AC |
|
[Uc] Control Circuit Voltage |
120 V AC 60 Hz, 110 V AC 50 Hz |
|
Phase |
3 phase |
|
Electrical Connection |
Quick connect terminals, Box lugs |
Information About 8910DPA63V02
The 8910DPA63V02 is a definite purpose magnetic contactor primarily utilized in heating, air conditioning, and refrigeration applications. Designed within the 8910DP series, these contactors are tailored for specific industrial purposes, featuring robust capabilities to handle varying electrical loads.
This three-pole contactor has a line-rated current of 60A and a full load rating of 75 amperes for resistive loads. It is capable of handling substantial motor loads, including 5 HP at 115 VAC single phase, 10 HP at 230 VAC single phase, and up to 30 HP at 575 VAC in three-phase configurations. Additionally, it supports 30 HP at 460 VAC and 30 HP at 575 VAC in three-phase settings, making it versatile for diverse motor applications.
The contactor integrates a nonreplaceable coil with compatibility across a range of coil voltages, specifically designed for 110/120 VAC 50/60 Hz operations. It facilitates straightforward installation with its straight-through wiring configuration, ensuring ease of setup and maintenance.
Physically, the 8910DPA63V02 measures 4.06 inches in length, 2.56 inches in width, and stands 3.67 inches tall, making it compact yet robust for its intended industrial applications. These contactors adhere to stringent safety and performance standards, being UL component recognized and CSA certified, which ensures their reliability and compliance with industry requirements.
